— 58 —
KP- 43T85T / 53SV85T / 61SV85T

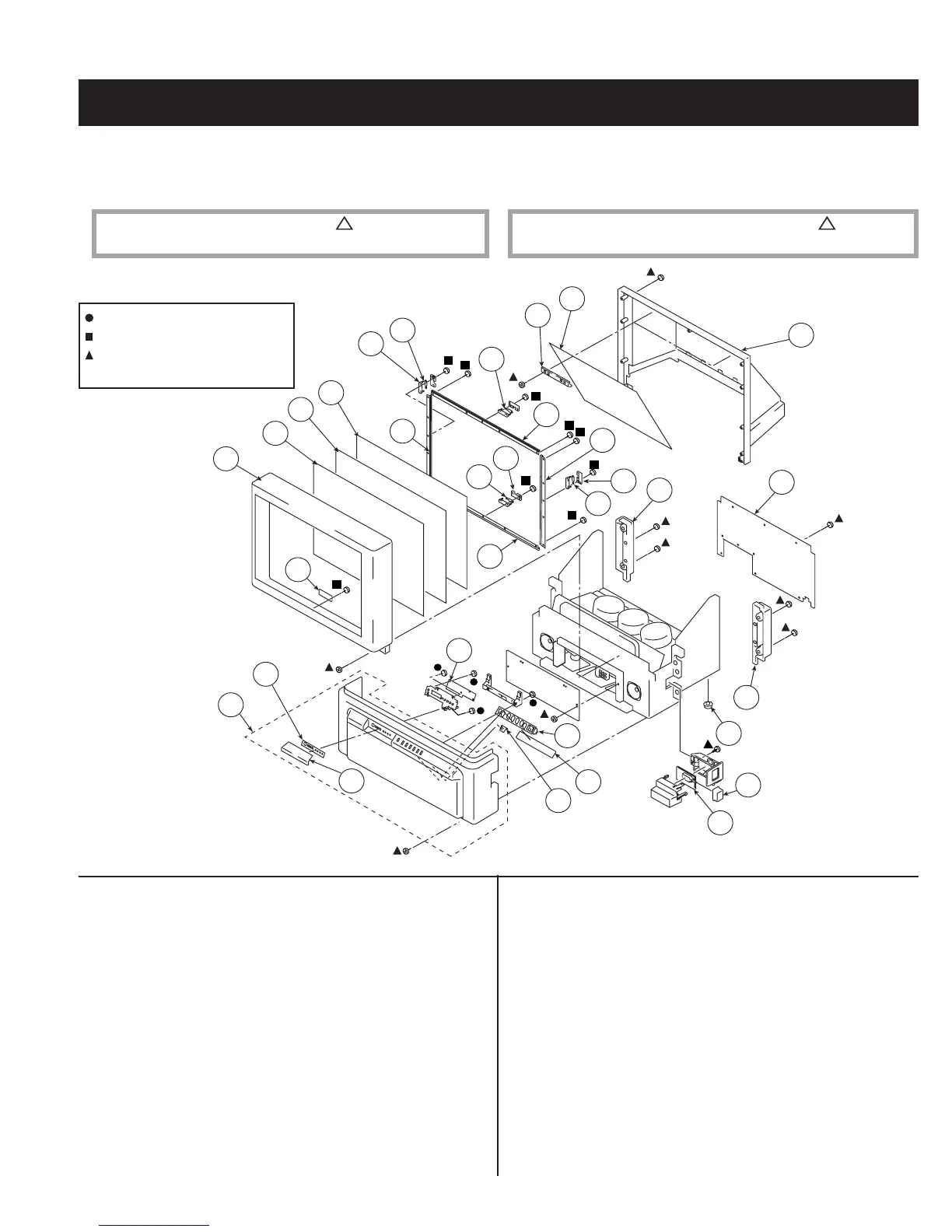

SECTION 6: EXPLODED VIEWS
Components not identifi ed by a part number or
description are not stocked because they are seldom
required for routine service.
NOTE: The components identifi ed by shading and
!
mark are critical for safety.
Replace only with part number specifi ed.
NOTE: Les composants identifi es per un trame et une marque
!
sont critiques
pour la securite. Ne les remplacer que par une piece portant le numero specifi e.
The component parts of an assembly are indicated by
the reference numbers in the far right column of the parts
list and within the dotted lines of the diagram.
*
Items marked with an asterisk are not stocked since
they are seldom required for routine service. Expect
some delay when ordering these components.
1
2
3
4
20
20
6
5
7
11
12
13
18
22
17
19
8
9
10
20
20
5
24
23
25
26
24
24
16
21
15
14
REF.NO. PART NO. DESCRIPTION [ASS’Y INCLUDES]
6-1. COVER (KP-43T85T)
1 X-4038-924-1 BEZNET -43 ASSY
2 4-081-064-11 SCREEN (43), CONTRAST
3 4-070-284-11 PLATE (L), DIFFUSION
4 4-070-285-11 PLATE (43F), DIFFUSION
* 5 4-070-332-31 HOLDER (L), SCREEN NC
* 6 4-070-333-21 HOLDER (S), SCREEN NC
* 7 4-070-333-31 HOLDER (S), SCREEN NC
* 8 4-081-501-01 HOLDER, MIRROR
9 4-082-889-01 MIRROR -43
* 10 4-081-500-01 COVER (43), MIRROR
* 11 4-082-892-01 BOARD, REAR
12 4-069-703-01 CAP (L), CONTROL
13 4-069-704-01 CAP (R), CONTROL
* 14 A-1372-620-A HB BOARD, MOUNTED
15 4-069-681-21 BUTTON, MULTI
* 16 A-1372-762-A HA BOARD, MOUNTED
17 4-072-529-01 LABEL (2), SPEAKER GRILLE
18 4-057-611-01 FOOT
* 19 A-1372-618-A HC BOARD, MOUNTED
* 20 A-1390-933-A S BOARD, MOUNTED
21 4-069-682-01 GUIDE, LED
* 22 X-4039-200-1 PANEL ASSY, CONTROL [23]
23 4-073-437-31 DOOR, CONTROL
* 24 4-069-680-01 BRACKET (B), SENSOR
25 4-048-200-11 BUTTON, MAIN POWER
* 26 A-1241-389-A FB BOARD, MOUNTED
7-685-648-79 SCREW +BVTP 3X12
7-685-661-14 SCREW +BVTP 4X12
4-081-063-01 SCREW, DOME WASHER
HEX TAPPING (4X20)
REF.NO. PART NO. DESCRIPTION
To Next Page
