— 60 —
KP- 43T85T / 53SV85T / 61SV85T
NOTE: The components identifi ed by shading and
!
mark are critical for safety.
Replace only with part number specifi ed.
NOTE: Les composants identifi es per un trame et une marque
!
sont critiques
pour la securite. Ne les remplacer que par une piece portant le numero specifi e.
REF.NO. PART NO. DESCRIPTION

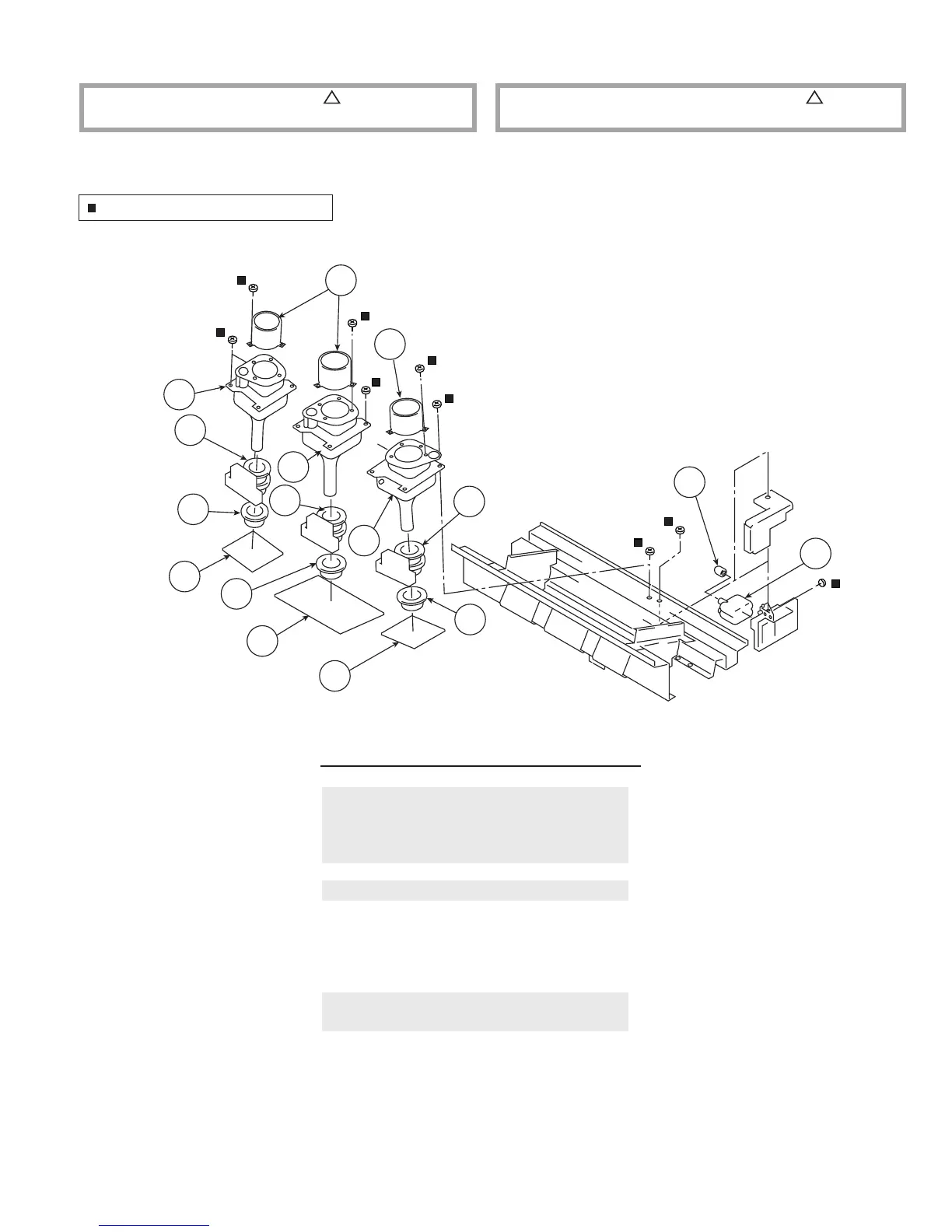

6-3. PICTURE TUBE (KP-43T85T)
44
44
45
48
48
48
46
51
50
49
55
49
52
47
53
54
44 4-056-258-11 LENS (DELTA 78)
!
45 8-733-571-31 CRT 07MXC2(R)(NEW GUN)
!
46 8-733-570-31 CRT 07MXC2(G)(NEW GUN)
!
47 8-733-574-21 CRT 07MAC2(B)(C/D CPL)
!
48 1-451-496-11 DEFLECTION YOKE
!
49 1-452-790-31 NECK ASSY
* 50 A-1331-922-A CR BOARD, MOUNTED
* 51 A-1331-923-A CG BOARD, MOUNTED
* 52 A-1331-924-A CB BOARD, MOUNTED
53 4-373-137-01 CAP (Z), RUBBER
!
54 8-598-955-31 BLOCK ASSY, HV HVB-1031
!
55 1-452-909-41 MAGNET ASSY, 4 POLE
4-052-894-01 SCREW (4X20), HEAD TAPPING
