— 64 —
KP- 43T85T / 53SV85T / 61SV85T
NOTE: The components identifi ed by shading and
!
mark are critical for safety.
Replace only with part number specifi ed.
NOTE: Les composants identifi es per un trame et une marque
!
sont critiques
pour la securite. Ne les remplacer que par une piece portant le numero specifi e.
210
206
206
206
209
212
215
219
217
216
218
206
208
207
205
205
224
224
223
201
204
203
202
211
213
214
227
226
225
225
225
225
222
220
221

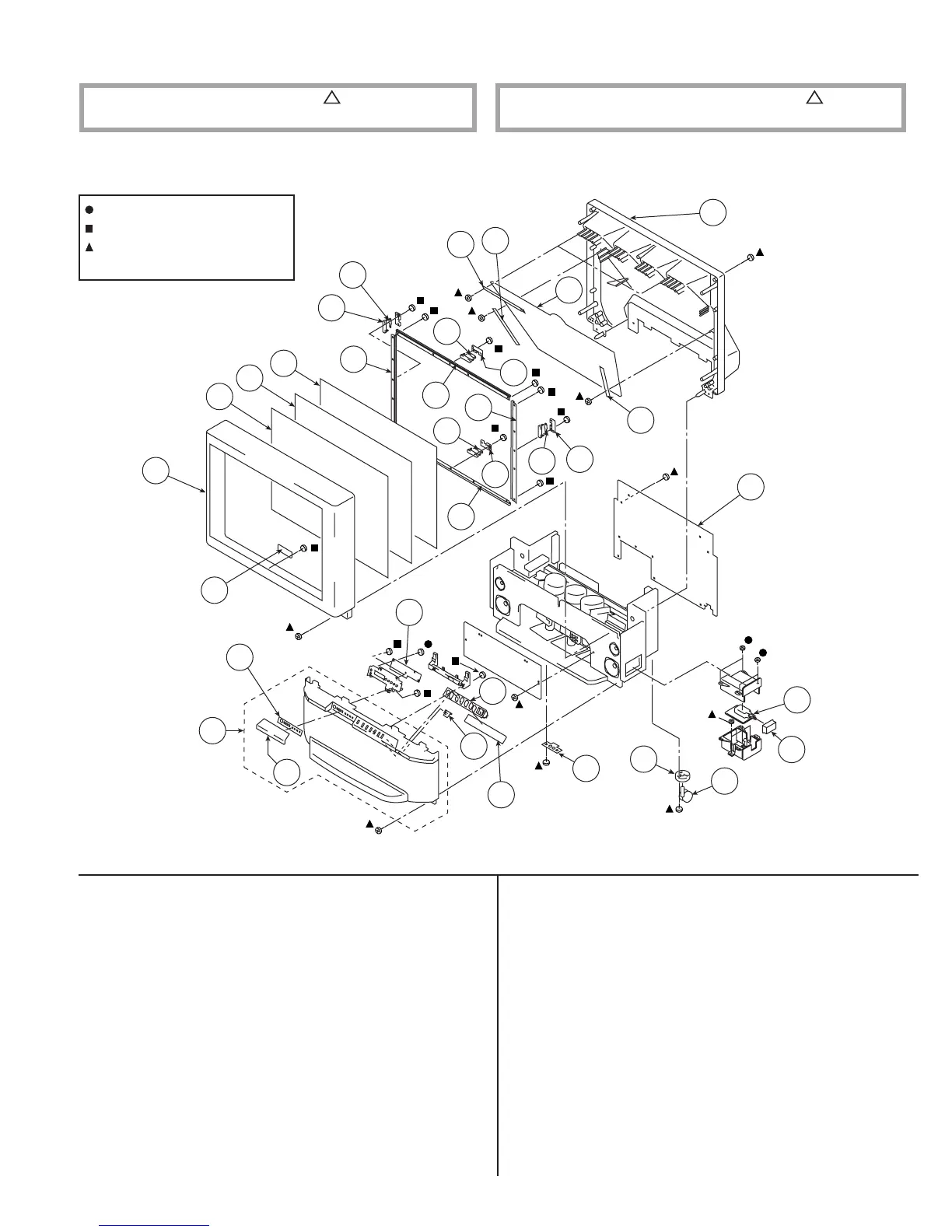

6-7. COVER (KP-61SV85T)
REF.NO. PART NO. DESCRIPTION REF.NO. PART NO. DESCRIPTION [ASS’Y INCLUDES]
201 X-4039-194-1 BEZNET ASSY
202 4-081-067-11 SCREEN (61), CONTRAST
203 4-070-283-11 PLATE (L), DIFFUSION
204 4-079-449-11 PLATE (61FV), DIFFUSION
* 205 4-070-329-02 HOLDER (L), SCREEN YC
* 206 A-1390-933-A S BOARD, MOUNTED
* 207 4-069-689-01 HOLDER (L), MIRROR
* 208 4-070-345-01 HOLDER (TOP), MIRROR
* 209 4-069-690-01 HOLDER (R), MIRROR
210 4-070-922-01 MIRROR, REFLECTION
* 211 4-069-695-01 COVER, MIRROR
* 212 4-070-920-02 BOARD, REAR
213 4-030-850-01 SOCKET, CASTER
214 4-039-546-01 CASTER
215 4-075-020-01 FOOT, PLASTIC
* 216 A-1372-762-A HA BOARD, MOUNTED
217 4-069-682-01 GUIDE, LED
218 4-069-681-21 BUTTON, MULTI
* 219 A-1372-620-A HB BOARD, MOUNTED
220 X-4039-196-1 GRILLE ASSY, SPEAKER [221]
221 4-069-671-41 DOOR (V), CONTROL
222 4-072-529-01 LABEL (2), SPEAKER GRILLE
* 223 A-1372-618-A HC BOARD, MOUNTED
* 224 4-070-334-02 HOLDER (S), SCREEN YC
* 225 4-069-680-01 BRACKET (B), SENSOR
226 4-048-200-02 BUTTON, MAIN POWER
* 227 A-1241-389-A FB BOARD, MOUNTED
7-685-648-79 SCREW +BVTP 3X12
7-685-661-14 SCREW +BVTP 4X12
4-081-063-01 SCREW, DOME WASHER
HEX TAPPING (4X20)
