— 66 —
KP- 43T85T / 53SV85T / 61SV85T
NOTE: The components identifi ed by shading and
!
mark are critical for safety.
Replace only with part number specifi ed.
NOTE: Les composants identifi es per un trame et une marque
!
sont critiques
pour la securite. Ne les remplacer que par une piece portant le numero specifi e.
REF.NO. PART NO. DESCRIPTION
245
245
246
249
249
249
247
252
251
250
258
250
253
248
255
254
256
257

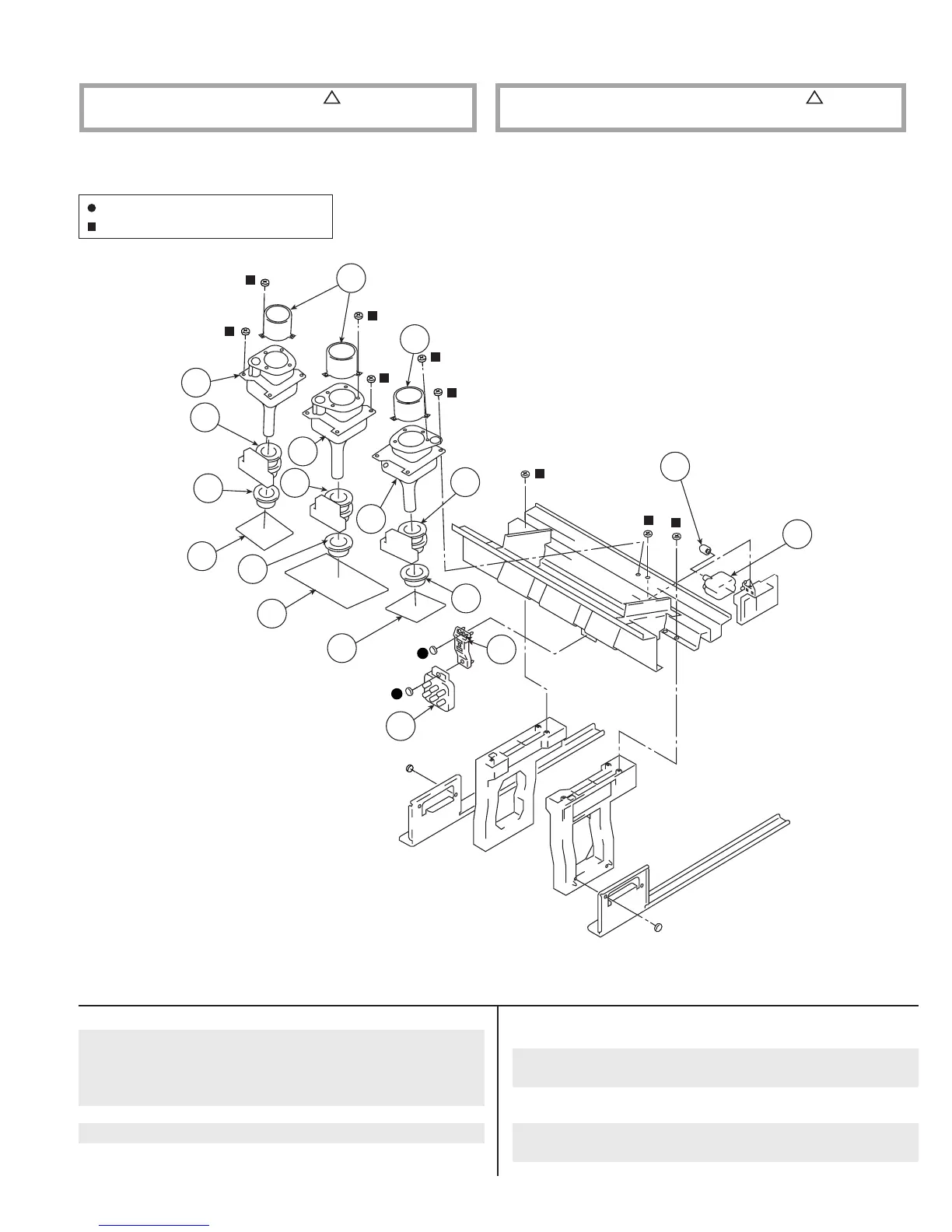

6-9. PICTURE TUBE (KP-61SV85T)
245 4-040-131-21 LENS (LINNIT POINT 6)
! 246 8-733-573-31 CRT 07MXC4(R)(NEW GUN)
! 247 8-733-570-31 CRT 07MXC2(G)(NEW GUN)
! 248 8-733-576-21 CRT 07MAC4(B)(E)(C/D CPL)
! 249 1-451-496-11 DEFLECTION YOKE
! 250 1-452-790-31 NECK ASSY
* 251 A-1331-922-A CR BOARD, MOUNTED
7-685-648-79 SCREW +BVTP 3X12
4-052-894-01 SCREW (4X20), HEAD TAPPING
* 252 A-1331-923-A CG BOARD, MOUNTED
* 253 A-1331-924-A CB BOARD, MOUNTED
! * 254 4-063-403-01 BRACKET, FOCUS PACK
! 255 1-223-925-81 RESISTOR ASSY (HIGH-VOLTAGE)
256 4-373-137-01 CAP (Z), RUBBER
! 257 8-598-955-31 BLOCK ASSY, HV HVB-1031
! 258 1-452-909-41 MAGNET ASSY, 4 POLE
