— 63 —
KP- 43T85T / 53SV85T / 61SV85T
NOTE: The components identifi ed by shading and
!
mark are critical for safety.
Replace only with part number specifi ed.
NOTE: Les composants identifi es per un trame et une marque
!
sont critiques
pour la securite. Ne les remplacer que par une piece portant le numero specifi e.

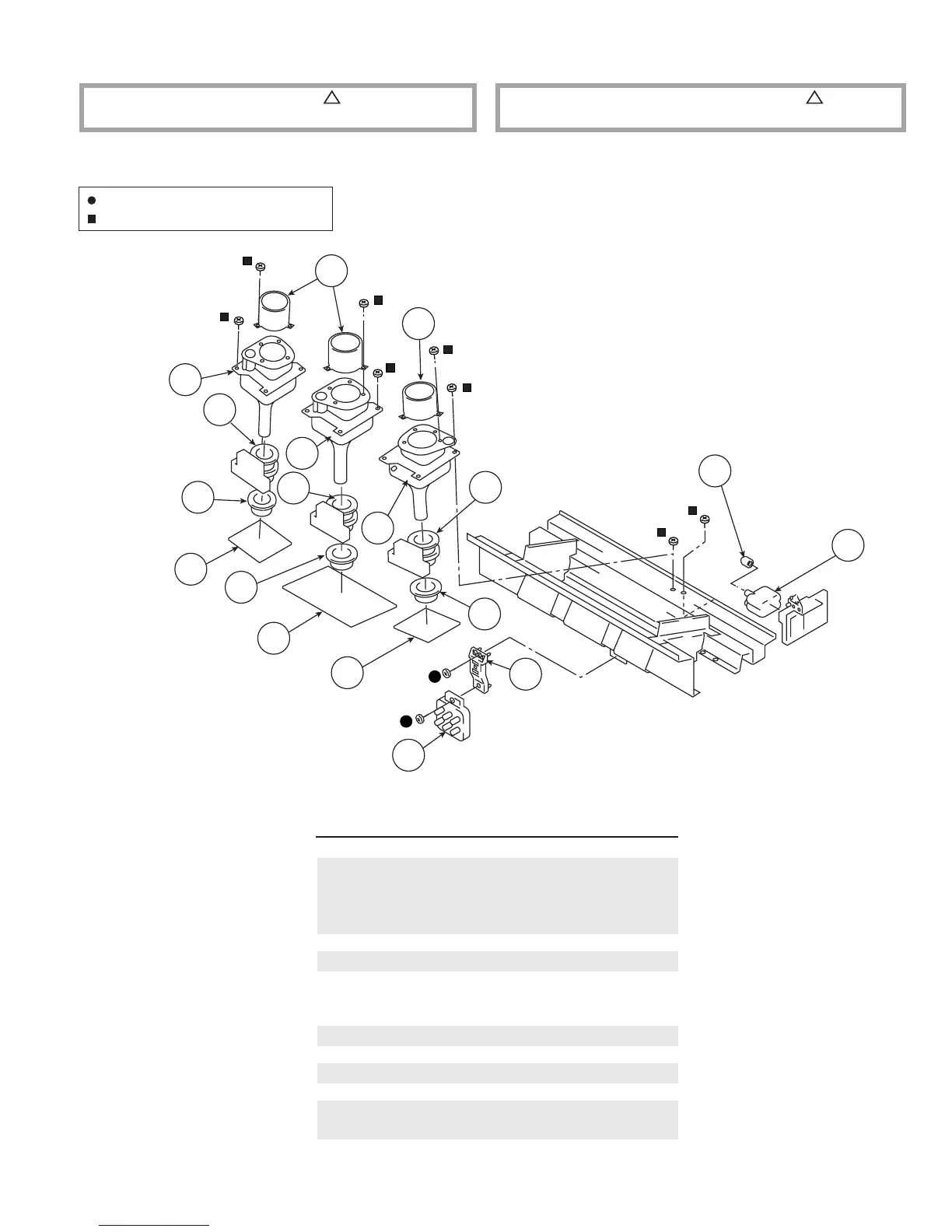

6-6. PICTURE TUBE (KP-53SV85T)
144
144
145
148
148
148
146
151
150
149
157
149
152
147
154
153
155
156
7-685-648-79 SCREW +BVTP 3X12
4-052-894-01 SCREW (4X20), HEAD TAPPING
REF.NO. PART NO. DESCRIPTION
144 4-056-258-11 LENS (DELTA 78)
!
145 8-733-572-31 CRT 07MXC3(R)(NEW GUN)
!
146 8-733-570-31 CRT 07MXC2(G)(NEW GUN)
!
147 8-733-575-21 CRT 07MAC3(B)(C/D CPL)
!
148 1-451-496-11 DEFLECTION YOKE
!
149 1-452-790-31 NECK ASSY
* 150 A-1331-922-A CR BOARD, MOUNTED
* 151 A-1331-923-A CG BOARD, MOUNTED
* 152 A-1331-924-A CB BOARD, MOUNTED
!
* 153 4-063-403-01 BRACKET, FOCUS PACK
!
154 1-223-925-81 RESISTOR ASSY (HIGH-VOLTAGE)
155 4-373-137-01 CAP (Z), RUBBER
!
156 8-598-955-31 BLOCK ASSY, HV HVB-1031
!
157 1-452-909-41 MAGNET ASSY, 4 POLE
To Next Page
