KP-43T85T / 53SV85T / 61SV85T
REFERENCE INFORMATION
RESISTOR : RN METAL FILM
: RC SOLID
: FPRD NONFLAMMABLE CARBON
: FUSE NONFLAMMABLE FUSIBLE
: RW NONFLAMMABLE WIREWOUND
: RS NONFLAMMABLE METAL OXIDE
: RB NONFLAMMABLE CEMENT
: ADJUSTMENT RESISTOR
COIL : LF-8L MICRO INDUCTOR
The components identifi ed by shading and
!
symbol are critical for safety.
Replace only with part number specifi ed.
The symbol indicates a fast operating fuse and is displayed on the
component side of the board. Replace only with fuse of the same rating as
marked.
Les composants identifi es per un trame et une marque
!
sont critiques pour la
securite. Ne les remplacer que par une piece portant le numero specifi e.
Le symbole indique une fusible a action rapide. Doit etre remplace par une
fusible de meme yaleur, comme maque.
CAPACITOR : TA TANTALUM
: PS STYROL
: PP POLYPROPYLENE
: PT MYLAR
: MPS METALIZED POLYESTER
: MPP METALIZED POLYPROPYLENE
: ALB BIPOLAR
: ALT HIGH TEMPERATURE
: ALR HIGH RIPPLE
Transistor
Transistor
Diode
Diode
Diode
Diode
Diode
Diode
Diode
Diode
Diode
Diode
Anode
Anode
(NC)
(NC)
Cathode
Anode
Cathode
Common
Cathode
Cathode
Common
Cathode
Cathode
Common
Common
Common
Common
Cathode
Anode
Base
Emitter
Collector
Base
Emitter
Collector
Device Printed symbol Terminal name
Circuit
Anode
Anode
Anode Cathode
Anode Anode
Cathode
Cathode
Anode
Anode
Cathode
Anode
Anode
1
2
3
4
5
6
7
8
9
10
11
12
-
G
S
S
D
G
D
B1
E1
C2
B2
C1
E2
Ver.1.7
Discrete semiconductor
(Chip semiconductors that are not actually used are included.)
Transistor
(FET)
Source
Gate
Drain
13
Transistor
(FET)
Source
Gate
Drain
14
G
D
S
G
D
S
Source
Drain
Gate
Transistor
(FET)
15
Emitter
Collector
Base
Transistor
16
B1 E1
C2
B2 C1E2
B1
E1
C2
B2
C1
E2
Transistor
17
B2 E2
C1
B1 C2
E1
Transistor
18
B2 E2
C1
B1 C2
E1
Transistor
19
B2 E2
C1
B1 C2
E1
B1
C1
E2
B2
E1
C2
Transistor
20
B1 E1
E2
C1(B2)
C2
B1
E2
C2C1(B2)
E2
Transistor
21
(B2)
E1
E2
B1
C2
C1
B1
C1
E2E1(B2)
C2
Transistor
22
B1
E2
C1
C2
(B2)
E1
B1
C1
C2E1(B2)
C2
Transistor
23
Device Printed symbol Terminal name
Circuit

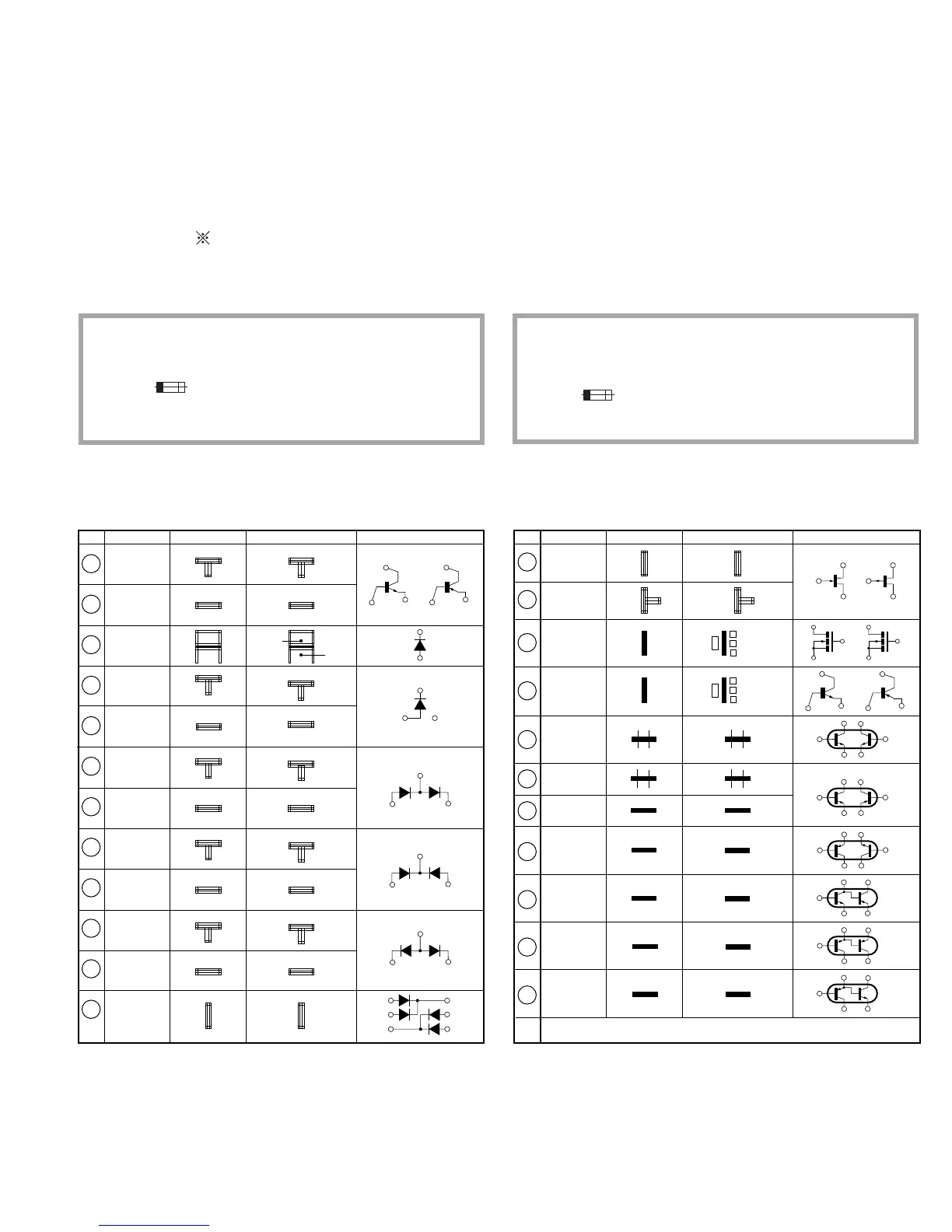

TERMINAL NAME OF SEMICONDUCTORS IN SILK SCREEN PRINTED CIRCUIT (*)
