Sony RCD-W10 Service Manual

23
RCD-W10
1-2. Equipments to prepare
1 Test Object Both RBD1 and CDM65-RBD1 shall be tested.
RBD1 : Flash Memory Writing of of
Circuit Test by Self-diagnostics
CDM65-RBD1 : Electrical Adjustment
Performance Test
2 Jig (With 9 Cables, Parts No.J-2501-223-A)
3 PC Windows95/98/2000/Me with COMport (RS-232C)
4 Programs TeraTerm Pro + Service macro
5 Oscilloscope More than 150MHz
6 Laser Power Meter LEADER LPM-8001 (Parts No.J-2501-046-A)
7 Test Disc
PATD-012 : (Parts No.4-225-203-1) Adjustment for Playback (CD,CD-R)
TCD-W091W : (Parts No.J-2501-226-A) Adjustment for Playback (CD-RW)
CRM74 (Blank CD-R) : Adjustment and Check for Recording (CD-R)
CWM74 (Blank CD-RW) : Check for Recording (CD-RW)
TCD-W032W : (Parts No.J-2501-227-A) Defocus tolerance (CD-RW)

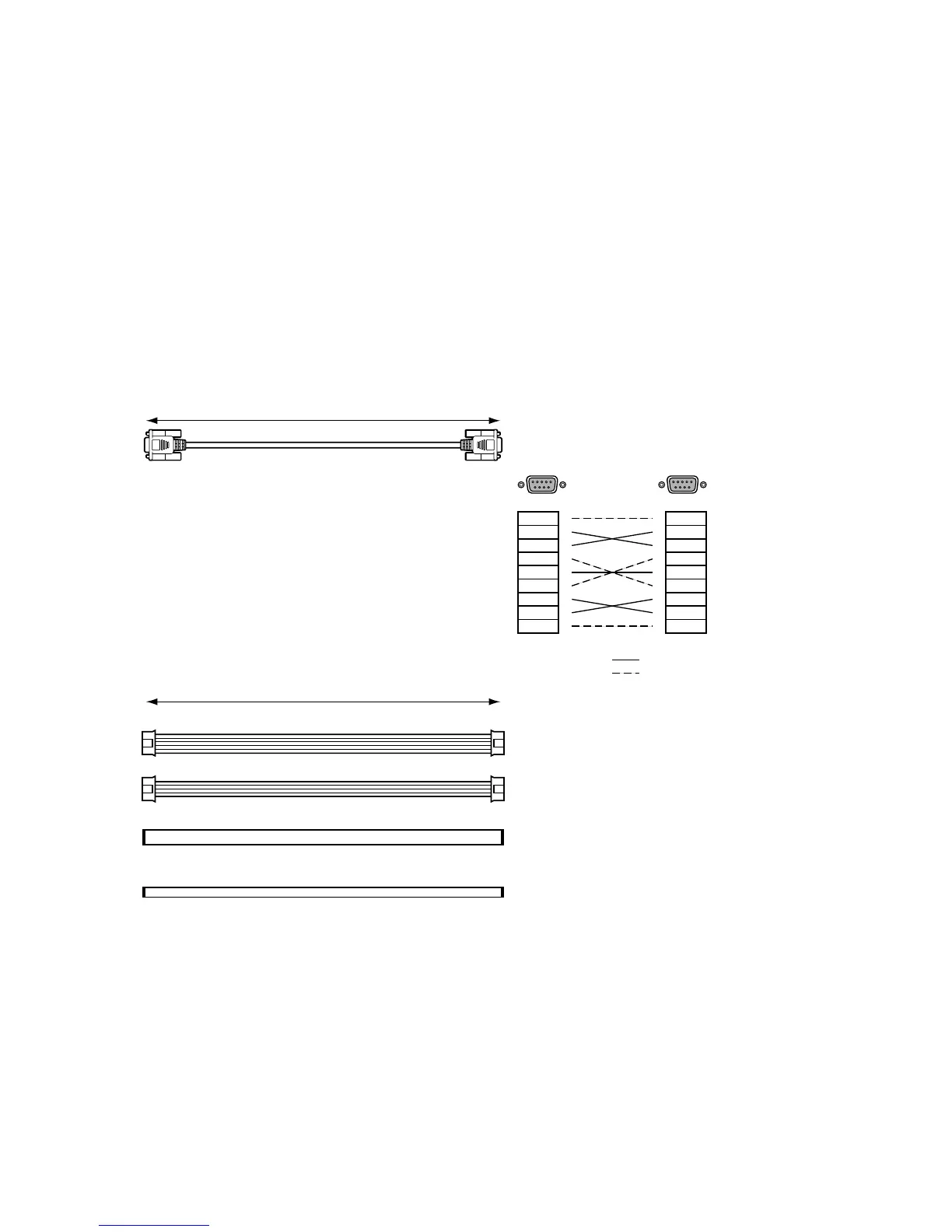

8 RS-232C Cable
9 Cables for Jig connecting
PH 5p
PH 4p
FFC 11p 1.0mm pitch (J-2501-200-A)
FFC 5p 1.0mm pitch (J-2501-212-A)
54321
9876
1
2
3
4
5
6
7
8
9
1
2
3
4
5
6
7
8
9
54321
9876
:mandatory
: not use
D-sub 9pin Female cross cable
L=300mm
(A)
(B)
(C)
(D)
(E)
L=2000mm
Ver 1.1 2003.12

Sony RCD-W10 Specifications

Power

North American model power requirements	120 V AC, 60 Hz
Mexican model power requirements	120 V AC, 60 Hz
Other models power requirements	110-120/220-240V AC, 50/60 Hz
Power consumption	25 W

Inputs

ANALOG IN impedance	47 kilohms
ANALOG IN rated input	500 mVrms
ANALOG IN minimum input	250 mVrms

Outputs

ANALOG OUT impedance	47 kilohms
ANALOG OUT rated output	2 Vrms
ANALOG OUT load impedance	over 10 kilohms

Weight and Dimensions

dimensions	430 × 108 × 399 mm
RCD-W50C mass	6.8 kg
RCD-W10 mass	6.0 kg
