Sony RCD-W10 Service Manual

24
RCD-W10
1-3. Setting of Programs (Tera Term Pro and Service macro)
* Confirmation of System (Windows 98 is used in this explanation) Preparation for Terminal software
1) Set up the serial port from OS.
a) Select Start → Settings → Control Panel and select System →
Device manager → Communication Port (COMn)
(see Fig. 1-1)
* Specify the COM port that connected with JIG of CDM65.
b) Double click COMn (as you connect to the Jig-CDM65)
Set the parameters as below.
Bits per second : 38400
Data bits : 8
Parity : non
Stop bits : 1
Flow control : hardware
(see Fig.1-2)

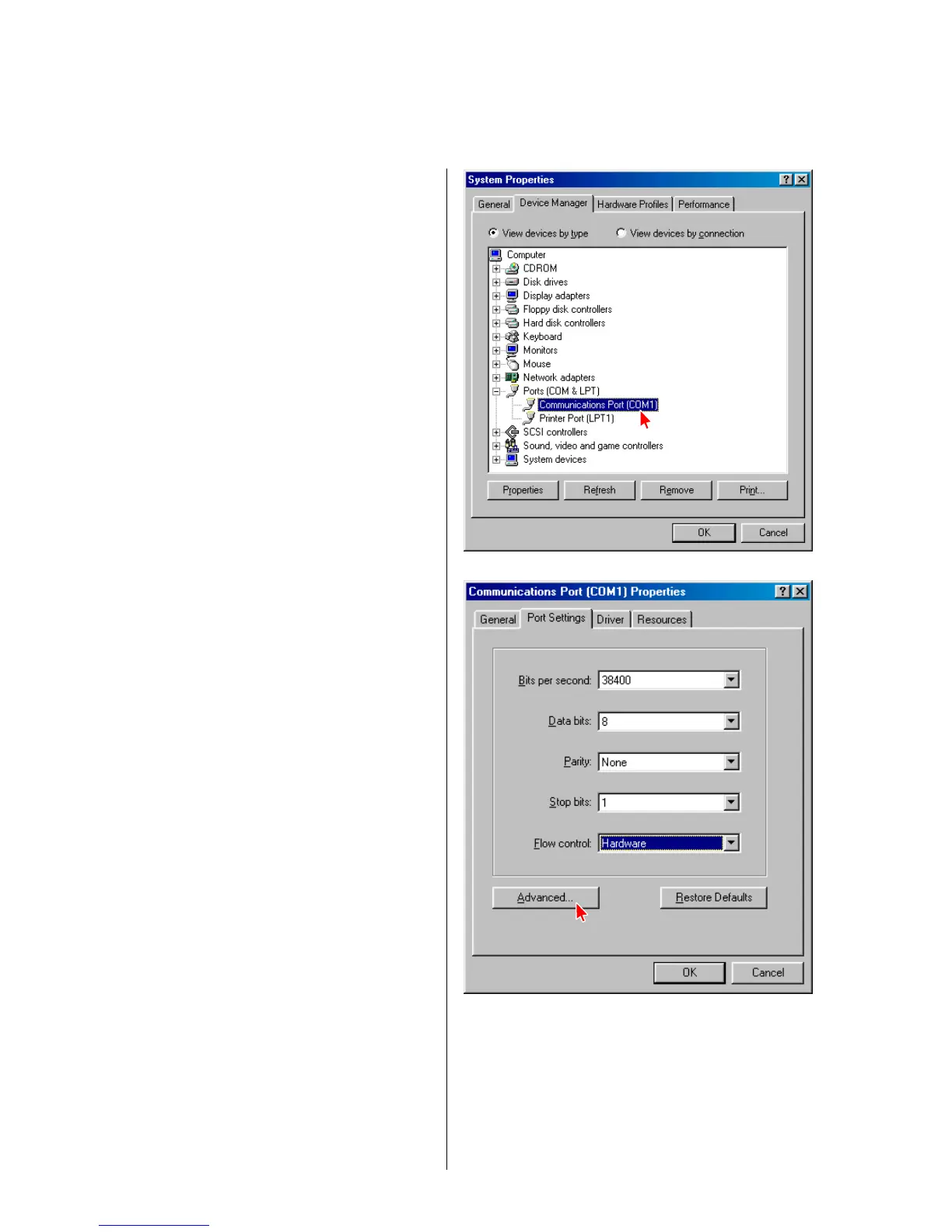

4 Fig. 1-1
4 Fig. 1-2

Sony RCD-W10 Specifications

Power

North American model power requirements	120 V AC, 60 Hz
Mexican model power requirements	120 V AC, 60 Hz
Other models power requirements	110-120/220-240V AC, 50/60 Hz
Power consumption	25 W

Inputs

ANALOG IN impedance	47 kilohms
ANALOG IN rated input	500 mVrms
ANALOG IN minimum input	250 mVrms

Outputs

ANALOG OUT impedance	47 kilohms
ANALOG OUT rated output	2 Vrms
ANALOG OUT load impedance	over 10 kilohms

Weight and Dimensions

dimensions	430 × 108 × 399 mm
RCD-W50C mass	6.8 kg
RCD-W10 mass	6.0 kg
