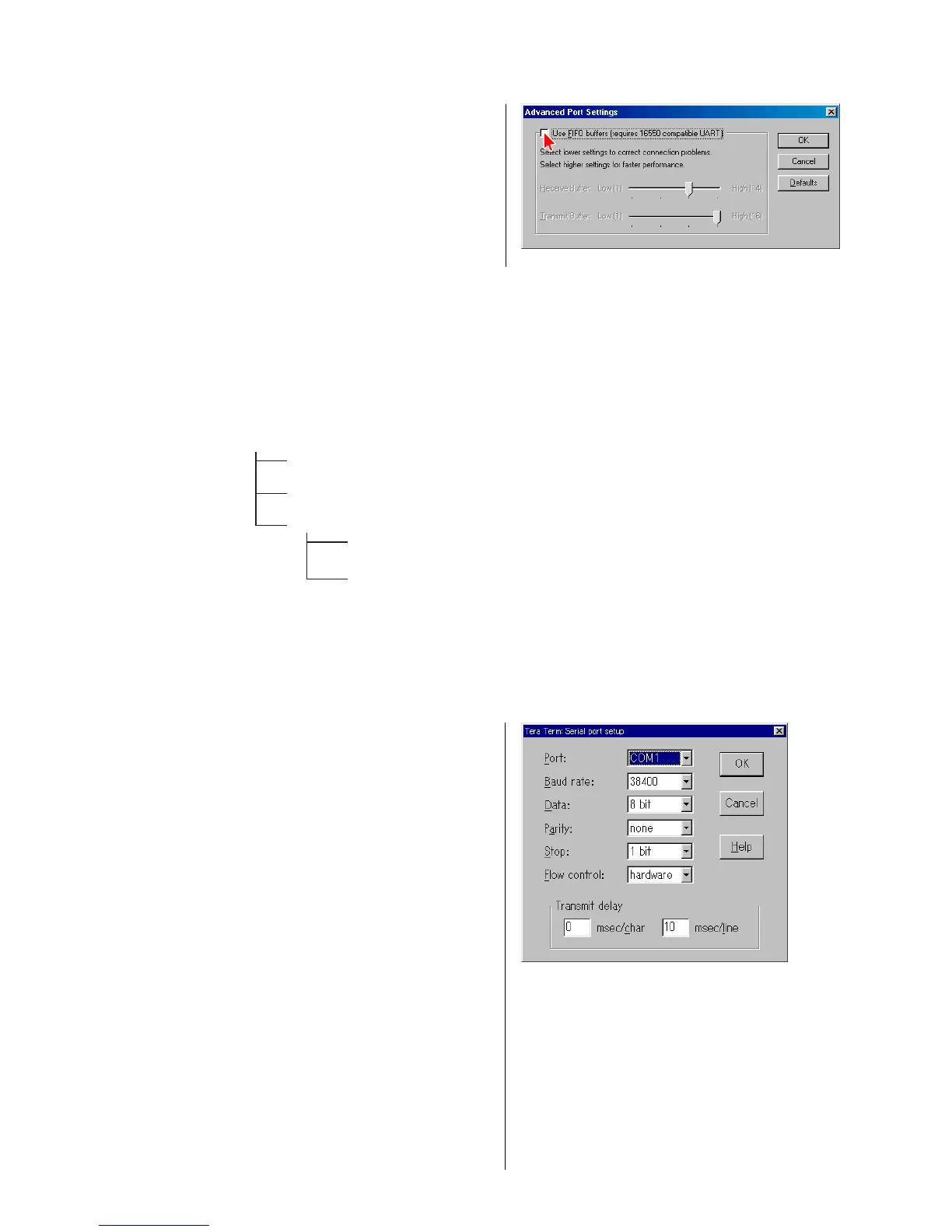

c) Press “Advanced...” button (see Fig.1-2)
Remove the check “Use FIFO buffers ...
(see Fig.1-3)
4 Fig. 1-3
4 Fig. 1-5
2) Unzip the file “ttermp23.zip” by PC.
(The file “ttermp23.zip” is distributed together with the service manual.)
3) After unzip the files, you can find setup.exe.
Double click the setup.exe.
Please install as the installer is.
Do not change the directory that files are installed. (use default)
4) Unzip the file “files-0208.zip” by PC.
Copy all “ttl” file and “FUNC” folder which are contained in “files-0208” and paste them in the “Ttermpro” file as below.
(The file “files-0208.zip” is distributed together with the service manual.)
Note : Do not change the directory path.
5) Start-up the TeraTermPro
Double click the ttermpro.exe.
6) Set up the TeraTermPro (IMPORTANT!!)
a) Select Setup Serial Port... and set the parameters as below.
Port : (As you connect to the Jig-CDM65)
Baud rate : 38400
Data : 8 bit
Parity : none
Stop : 1 bit
Flow control : hardware
Transmit delay : 0 msec/char 10 msec/line
After settings, press “OK” button. (see Fig.1-5)
Ttermpro
01ldp_S.ttl
10vwdcC_S.ttl
FUNC
AMS.ttl
VERCHK.ttl
4 Fig. 1-4
...
...
Ver 1.1 2003.12
