Sony RCD-W10 Service Manual

36
RCD-W10
4. CDM65-RBD1 Electrical Adjustment
4-1. Laser Power Adjustment
1) Start up the TeraTermPro and set the switch S510 on the jig to “CONTROL”.
2) Select the menu as follows. Control → Macro, and select
01ldp_S.ttl.
Press “Open”. (Fig. 4-1)

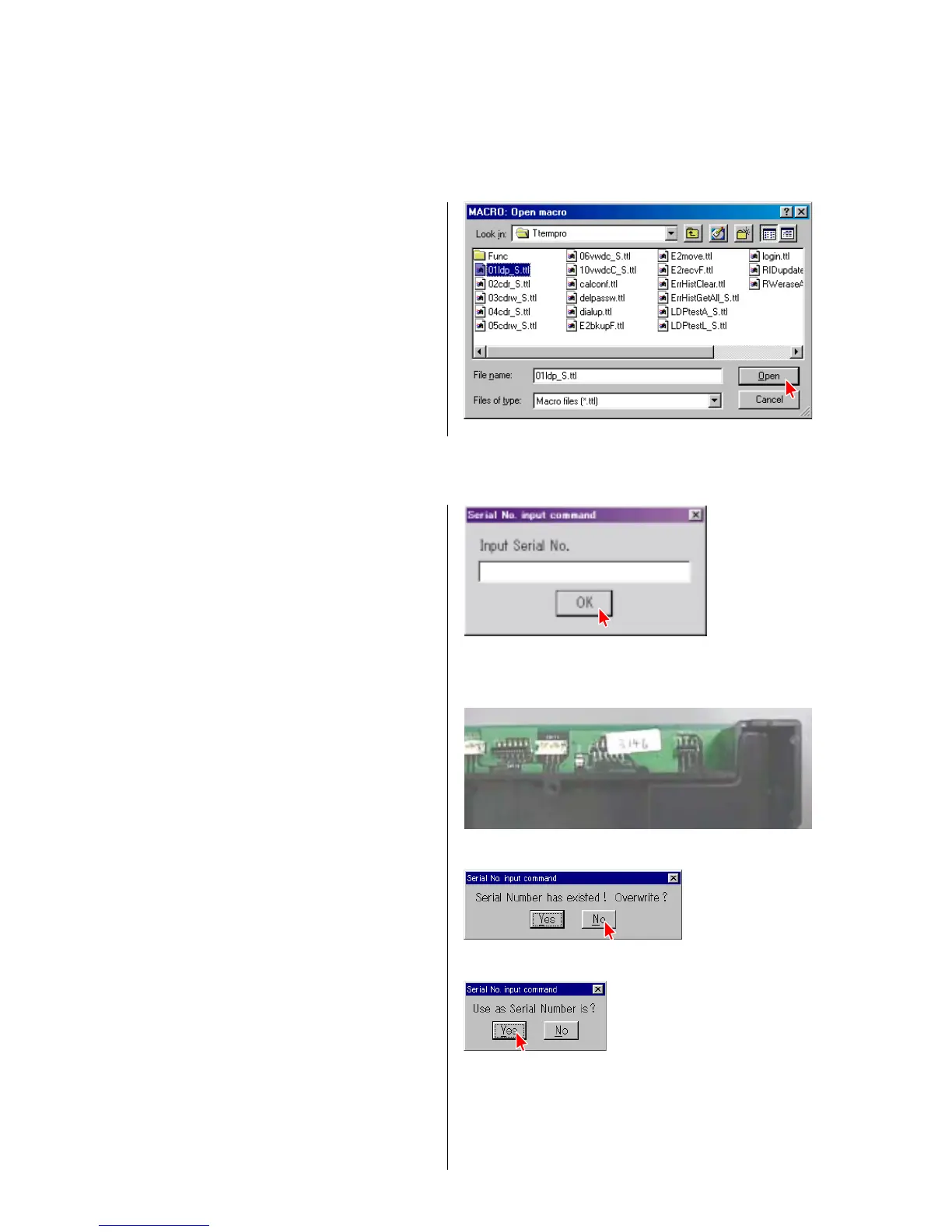

4 Fig. 4-1
3) Press the “RESET” button (SW101) of the jig as prompted by the display.
4) Press the “RESET” button (SW101) of the jig again as prompted by the display.
5) When the display as shown in Fig. 4-2 appears, type the serial
number (see Fig. 4-3) that is printed on the label attached to
the RBD1. (This dialog appears only when the EEPROM IC502
is replaced.)
When the display as shown in Fig. 4-4 appears, press “No”.
When the display as shown in Fig. 4-5 appears after that, press
“Yes”.
4 Fig. 4-2
4 Fig. 4-3
4 Fig. 4-4
4 Fig. 4-5

Sony RCD-W10 Specifications

Power

North American model power requirements	120 V AC, 60 Hz
Mexican model power requirements	120 V AC, 60 Hz
Other models power requirements	110-120/220-240V AC, 50/60 Hz
Power consumption	25 W

Inputs

ANALOG IN impedance	47 kilohms
ANALOG IN rated input	500 mVrms
ANALOG IN minimum input	250 mVrms

Outputs

ANALOG OUT impedance	47 kilohms
ANALOG OUT rated output	2 Vrms
ANALOG OUT load impedance	over 10 kilohms

Weight and Dimensions

dimensions	430 × 108 × 399 mm
RCD-W50C mass	6.8 kg
RCD-W10 mass	6.0 kg
