7) Check that the message “CDRW PB-CAL completed!” appears.

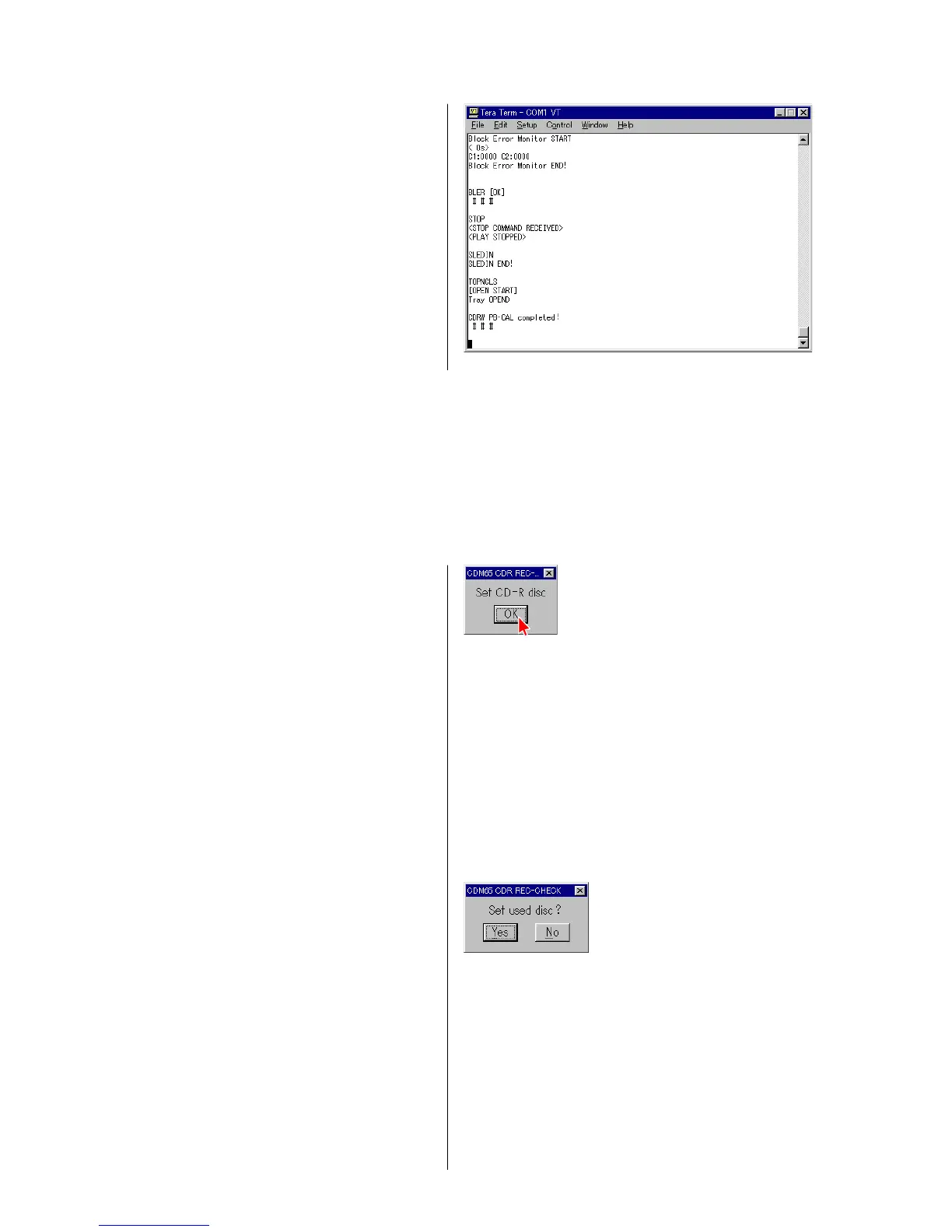

(Fig. 4-34)
NG Judgment Result Indication
4 Fig. 4-34
4-3-1. Playback Measurement NG!
Contents: This message appears when the BLER (Block Error Rate) during playback is outside the specification.
Measure : Check if there is any abnormality in RBD1.
Replace KRM-220CAA.
4-4. CD-R Recording Adjustment and Self Record/Playback Check
1) Select the menu as follows. Control → Macro, and select 04cdr_S.ttl.
Press “Open”.
2) Place the test CD disc PATD-012 on the Deck A. Place the
recording CD-R disc (see Note: 4-4-1) on the tray (Deck B)
as prompted by the display and press “OK”. (Fig. 4-35)
Note : 4-4-1
The disc to be used in this step.
* Use the CD-R disc CRM74 for audio, that is manufactured by
Sony.
* The disc that is used by this step cannot be used for the general
purposes and for the purpose of operation check of the RCD
series equipment. The disc that is used for the general purposes
or for the purpose of operation check of the RCD series
equipment, cannot be used in this step.
* If the recording is interrupted by any reasons during the
recording operation (i.e., the WRITE POWER ON LED of the
jig is lighting), the disc cannot be used any more in the
subsequent step. Use the un-used brand new disc and repeat
this step from the very beginning again.
3) When the disc that is used in step 2) is the disc that has been
used in the electrical adjustment in the past........ Press “Yes”.
When the disc that is used in step 2) is a completely blank disc.
...... Press “No”. (Fig. 4-36)
Note: The recording CD-R disc can be used only for the
electrical adjustment. The recording CD-R disc must be
controlled so that it must not be used for any other
applications.
4 Fig. 4-35
4 Fig. 4-36
To Next Page
