Sony RCD-W10 Service Manual

41
RCD-W10

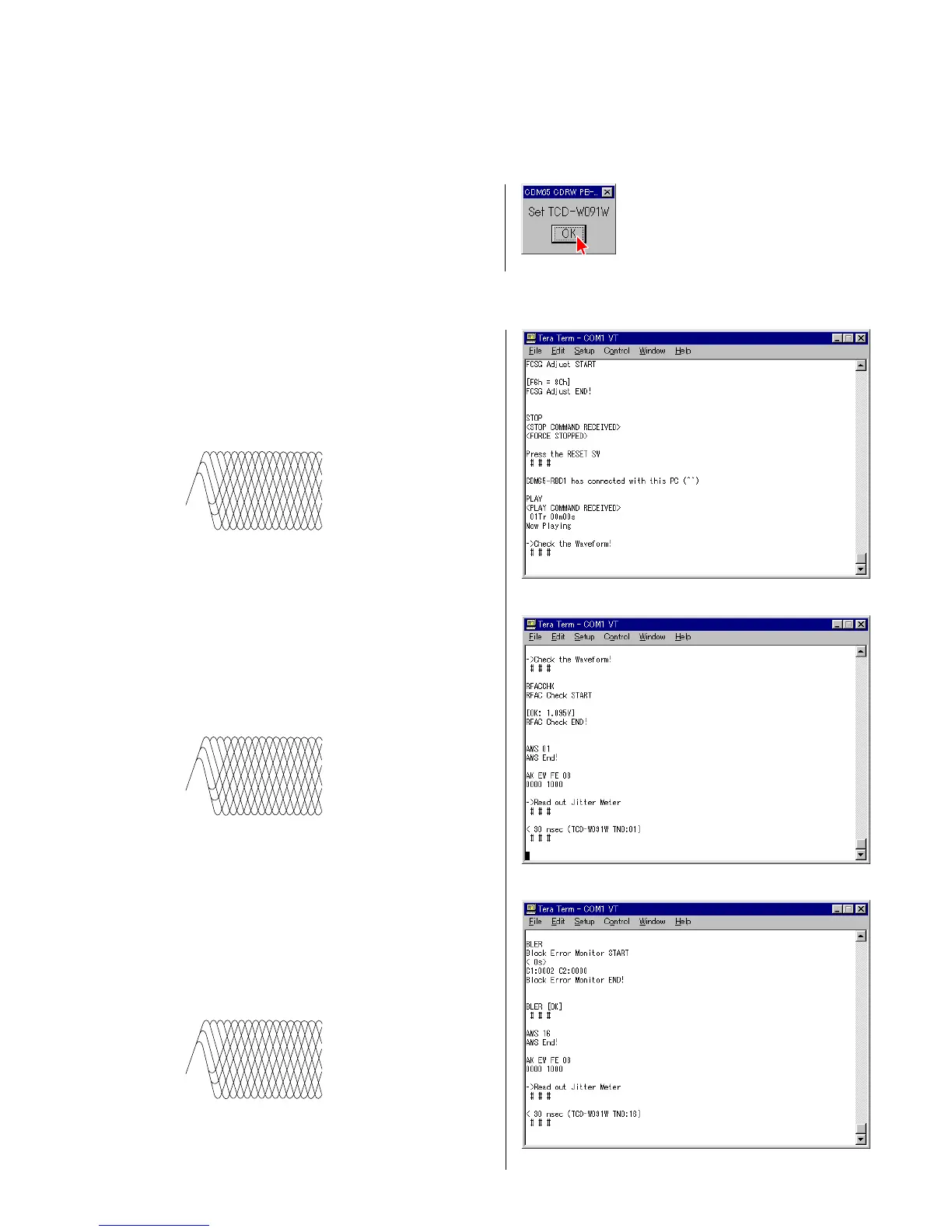

4-3. CD-RW Playback Adjustment
1) Select the menu as follows. Control → Macro, and select 03cdr_S.ttl.
Press “Open”.
4 Fig. 4-27
2) Place the test CD TCD-W091W on the tray as prompted by
the display and press “OK”. (Fig. 4-27)
3) Press the “RESET” button (SW101) of the jig as prompted by the display.
4) As prompted by the message shown in Fig. 4-29, check that
the waveform as shown in Fig. 4-28 appears on an oscilloscope.
5) As prompted by the message shown in Fig. 4-31, check that
the waveform as shown in Fig. 4-30 appears on an oscilloscope.
6) As prompted by the message shown in Fig. 4-33, check that
the waveform as shown in Fig. 4-32 appears on an oscilloscope.
4 Fig. 4-29
RF signal waveform
VOLT/DIV : suitable value
TIME/DIV : 500ns
4 Fig. 4-28
4 Fig. 4-31
RF signal waveform
VOLT/DIV : suitable value
TIME/DIV : 500ns
4 Fig. 4-30
4 Fig. 4-33
RF signal waveform
VOLT/DIV : suitable value
TIME/DIV : 500ns
4 Fig. 4-32

Sony RCD-W10 Specifications

Power

North American model power requirements	120 V AC, 60 Hz
Mexican model power requirements	120 V AC, 60 Hz
Other models power requirements	110-120/220-240V AC, 50/60 Hz
Power consumption	25 W

Inputs

ANALOG IN impedance	47 kilohms
ANALOG IN rated input	500 mVrms
ANALOG IN minimum input	250 mVrms

Outputs

ANALOG OUT impedance	47 kilohms
ANALOG OUT rated output	2 Vrms
ANALOG OUT load impedance	over 10 kilohms

Weight and Dimensions

dimensions	430 × 108 × 399 mm
RCD-W50C mass	6.8 kg
RCD-W10 mass	6.0 kg
