DVP-CX860/CX870D
SECTION 8
REPAIR PARTS LIST
8-1. EXPLODED VIEWS
NOTE:
• -XX, -X mean standardized parts, so they may
have some differences from the original one.
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering these
items.
• The mechanical parts with no reference number
in the exploded views are not supplied.
• Abbreviation
CND: Canadian model
The components identified by mark 0or
dotted line with mark 0 are critical for safety.
Replace only with part number specified.
Les composants identifiés par une marque
0 sont critiques pour la sécurité.
Ne les remplacer que par une pièce portant
le numéro spécifié.
a
c
d
d
c
b
b
a
2
21
3
5
5
5
5
5
1
4
6
9
9
9
9
7
8
16
16
10
11
12
14
15
15
15
13
not
supplied
not
supplied
not
supplied
not
supplied
not
supplied
not
supplied
not
supplied
not
supplied
not
supplied
Font panel section
Chassis section
9
9
20
17
18
19
DVP-CX860
(AEP,UK)
model
DVP-CX860
(US,CND)
model
DVP-CX870D
model
22
5
16
5

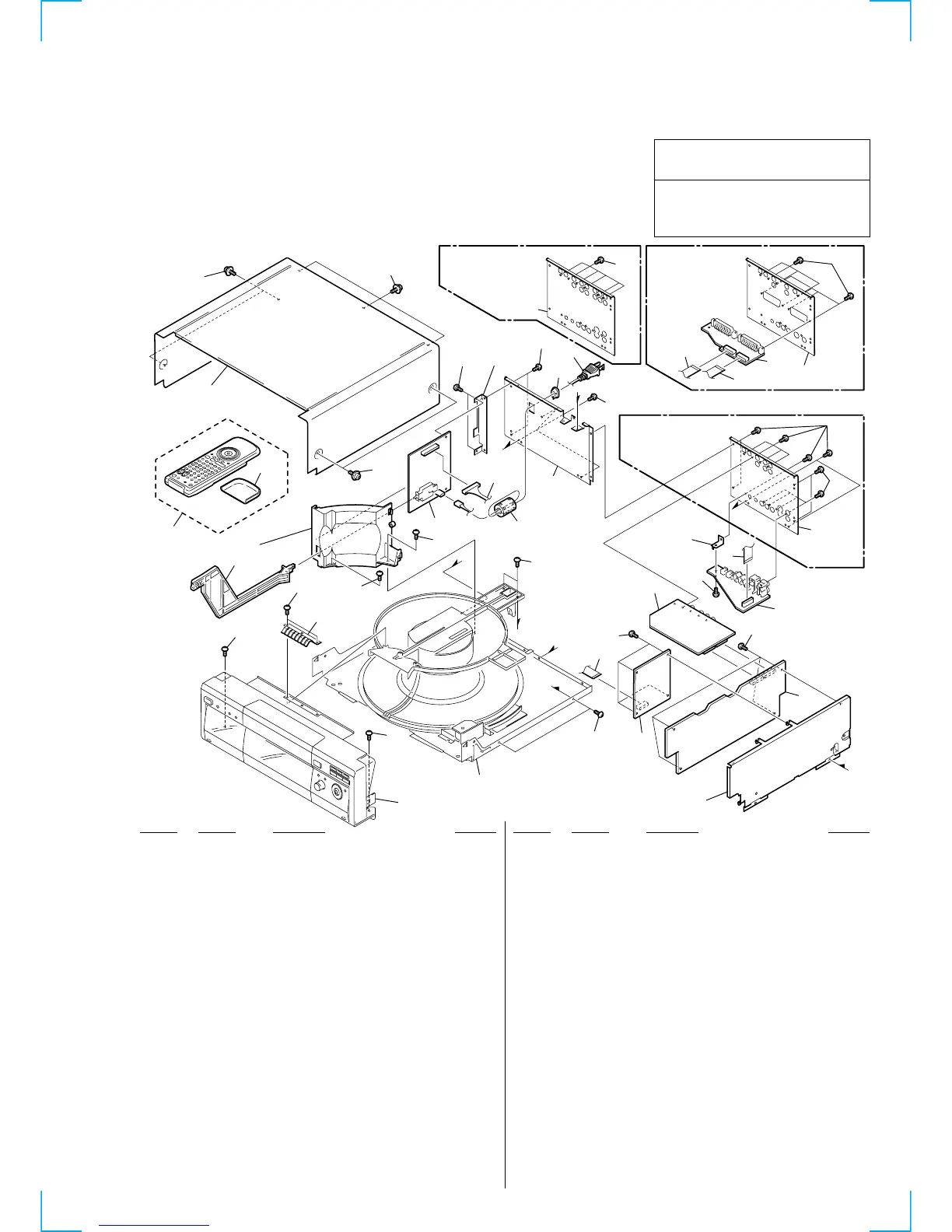

8-1-1. OVERALL SECTION
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
1 3-970-608-01 SUMITITE (B3), +BV
2 3-709-493-11 COVER, BATTERY
03 1-468-512-11 POWER BLOCK (MPW1241)
(CX860:US,CND/CX870D)
03 1-468-512-21 POWER BLOCK (MPW1141) (CX860:AEP,UK)
4 1-500-386-11 FILTER, CLAMP (FERRITE CORE)
5 3-970-608-01 SUMITITE (B3), +BV
6 4-966-267-12 BUSHING (FBS001), CORD
07 1-782-960-11 CORD,POWER (CX860:AEP,UK)
07 1-783-531-31 CORD,POWER (CX860:US,CND)
07 1-757-281-11 CORD,POWER (CX870D)
8 1-757-222-11 CABLE, FLAT (FAC-011)
9 3-053-984-11 SCREW(+BV/CU) (CX870D)
9 3-970-608-51 SUMITITE (B3), +BV (CX860)
* 10 A-6065-603-A CV-34 BOARD, COMPLETE (CX860:AEP,UK)
* 10 A-6065-614-A CV-34 BOARD, COMPLETE (CX860:US,CND)
* 10 A-6065-627-A CV-34 BOARD, COMPLETE (CX870D)
* 11 A-6065-602-A CH-98 BOARD, COMPLETE (CX860:AEP,UK)
* 11 A-6065-613-A CH-98 BOARD, COMPLETE (CX860:US,CND)
* 11 A-6065-626-A CH-98 BOARD, COMPLETE (CX870D)
12 1-757-225-11 CABLE, FLAT (FAM-007)
* 13 A-6065-600-A MB-94 BOARD, COMPLETE (CX860:AEP,UK)
* 13 A-6065-611-A MB-94 BOARD, COMPLETE (CX860:US,CND)
* 13 A-6065-624-A MB-94 BOARD, COMPLETE (CX870D)
* 14 A-6065-601-A AI-20 BOARD, COMPLETE (CX860:AEP,UK)
* 14 A-6065-612-A AI-20 BOARD, COMPLETE (CX860:US,CND)
* 14 A-6065-625-A AI-20 BOARD, COMPLETE (CX870D)
15 3-710-901-41 SCREW, TAPPING
16 3-970-608-21 SUMITITE (B3), +BV
* 17 A-6065-607-A ER-12 BOARD, COMPLETE (CX860:AEP,UK)
18 1-757-236-11 CABLE, FLAT (FAE-003) (CX860:AEP,UK)
19 1-757-235-11 CABLE, FLAT (FAE-002) (CX860:AEP,UK)
20 1-476-249-61 REMOTE COMMANDER (RMT-D123A)
(CX860:US,CND)
20 1-476-249-71 REMOTE COMMANDER (RMT-D123P)
(CX860:AEP,UK)
20 1-476-249-81 REMOTE COMMANDER (RMT-D124A)
(CX870D)
21 3-066-717-01 CASE, UPPER (CX860)
21 A-6062-513-A CASE ASSY, UPPER (CX870D)
22 3-065-531-01 SPRING (H), GROUND PLATE
