Sony RMT-D123A - Audio

DVP-CX860/CX870D
4-47 4-48
AUDIO
CH-98
CH-98 (AUDIO) PRINTED WIRING BOARD
— Ref. No. CH-98 Board; 1,000 Series —
FR-173 board
AI-20 board
MB-94 board
CH-98 board
ER-12 board
(DVP-CX860(AEP,UK) model)
CK-97 board
POWER BLOCK
CV-34 board

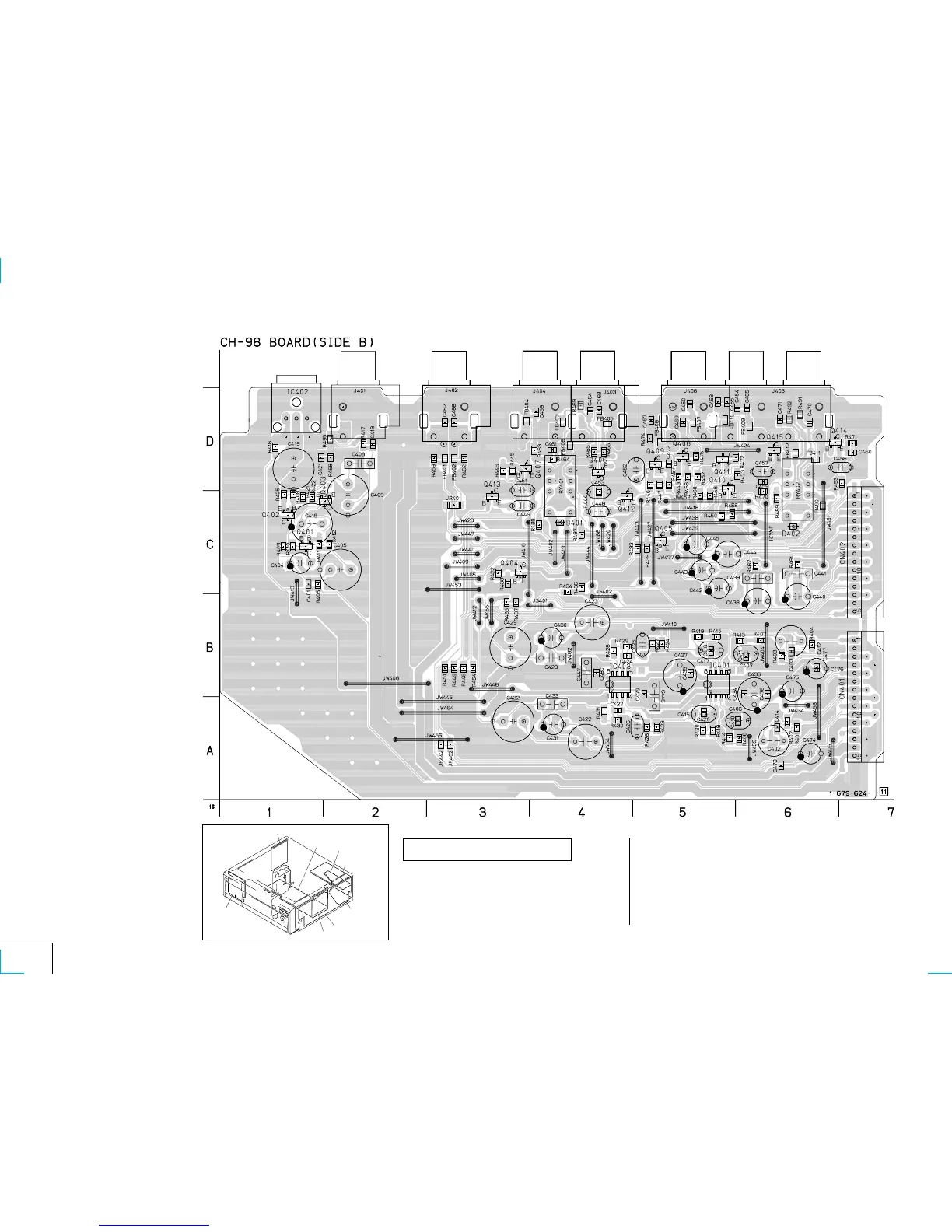

CH-98 BOARD (SIDE B)
D401 C-3
D402 C-6
IC401 B-5
IC402 D-1
IC403 B-4
Q401 C-1
Q402 C-1
Q403 C-2
Q404 C-3
Q405 C-4
Q406 D-4
Q407 D-3
Q408 D-5
Q409 D-4
Q410 D-5
Q411 D-5
Q412 C-4
Q413 C-3
Q414 D-6
Q415 D-6
For printed wiring board
There are a few cases that the part printed on
this diagram isn’t mounted in this model.
