DVP-CX860/CX870D
4-55 4-56
VIDEO OUT
CV-34
CV-34 (VIDEO OUT) PRINTED WIRING BOARD
— Ref. No. CV-34 Board; 1,000 Series —
For printed wiring board
• CV-34 board consists of multiple layers. However, only
the side (layers) B is shown.
• Chip parts
Diode
There are a few cases that the part printed on
this diagram isn’t mounted in this model.
3
21
FR-173 board
AI-20 board
MB-94 board
CH-98 board
ER-12 board
(DVP-CX860(AEP,UK) model)
CK-97 board
POWER BLOCK
CV-34 board

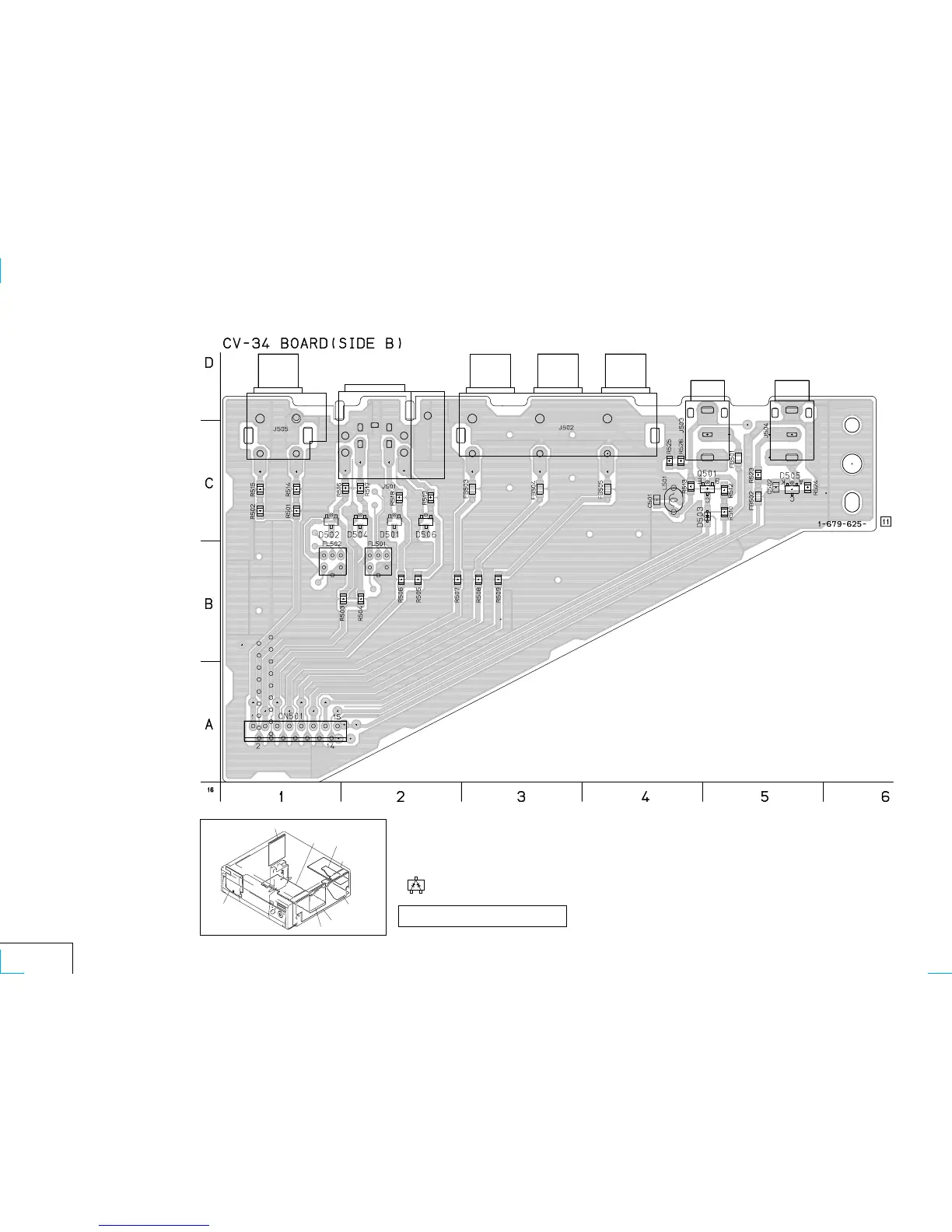

CV-34 BOARD (SIDE B)
D501 C-7
D502 C-7
D503 C-10
D504 C-7
D505 C-11
D506 C-8
Q501 C-10
