DVP-CX860/CX870D
4-7 4-8
TK-59 (RF/SERVO) PRINTED WIRING BOARD
— Ref. No. TK-59 Board; 1,000 Series —
RF/SERVO
TK-59
For printed wiring board
There are a few cases that the part printed on
this diagram isn’t mounted in this model.
LS-55 board
LT-38 board
CS-57 board
LT-37 board
TK-59 board
LC-70 board

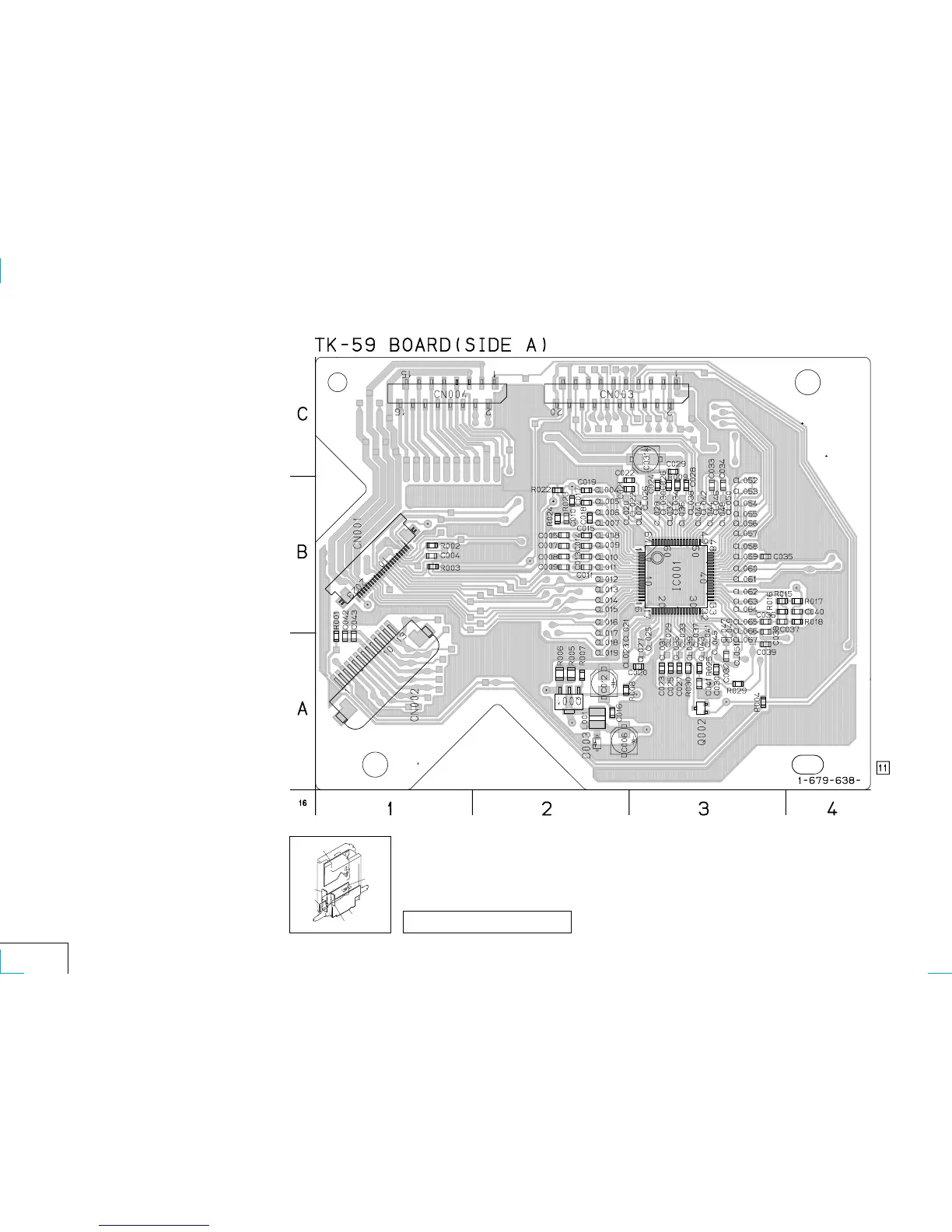

TK-59 BOARD (SIDE A)
D003 A-2
IC001 B-3
Q001 A-2
Q002 A-3
