DVP-CX860/CX870D
4-71 4-72
LED
LT-37
LED
LT-38
CK SENSOR
CS-57

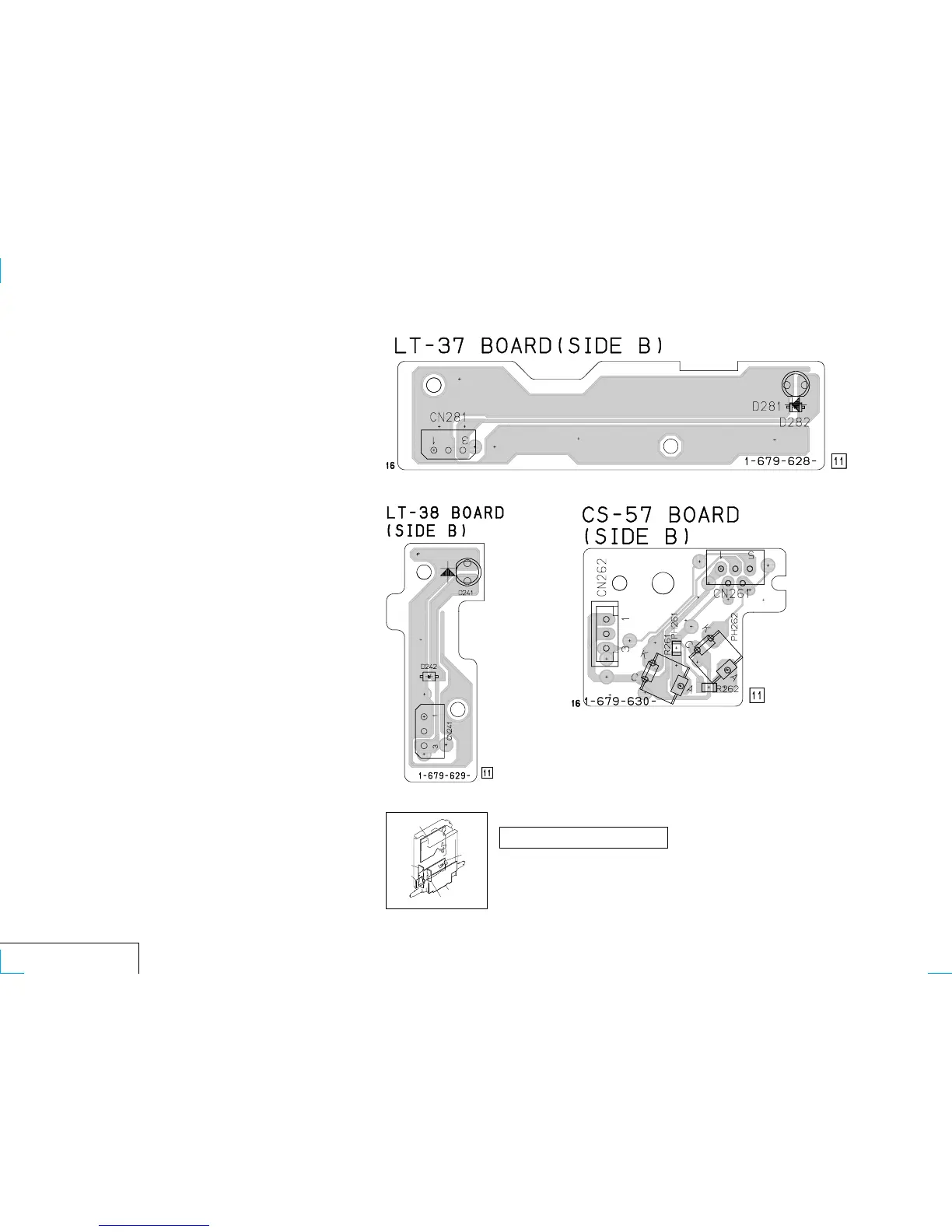

LT-37 (LED), LT-38 (LED), CS-57 (CK SENSOR) PRINTED WIRING BOARDS
— Ref. No. LT-37, LT-38, CS-57 Boards; 1,000 Series —
LS-55 board
LT-38 board
CS-57 board
LT-37 board
TK-59 board
LC-70 board
//
For printed wiring board
There are a few cases that the part printed on
this diagram isn’t mounted in this model.
To Next Page
