DVP-CX860/CX870D
4-51 4-52
EURO AV
ER-12

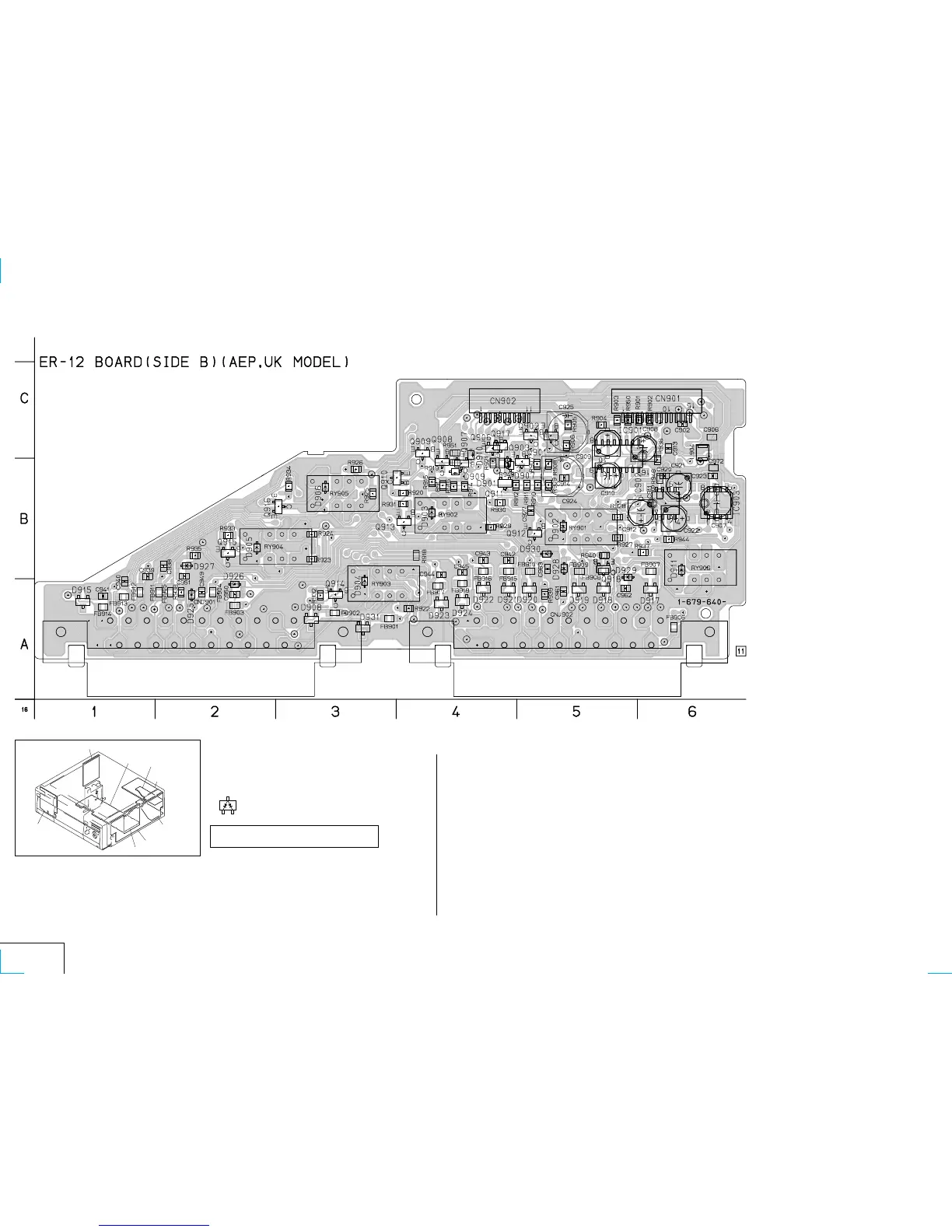

ER-12 (EURO AV) PRINTED WIRING BOARD
— Ref. No. ER-12 Board; 1,000 Series —
For printed wiring board
• ER-12 board consists of multiple layers. However, only
the side (layers) B is shown.
• Chip parts
Diode
There are a few cases that the part printed on
this diagram isn’t mounted in this model.
3
21
FR-173 board
AI-20 board
MB-94 board
CH-98 board
ER-12 board
(DVP-CX860(AEP,UK) model)
CK-97 board
POWER BLOCK
CV-34 board
ER-12 BOARD (SIDE B)
D901 B-4
D902 B-5
D903 B-4
D904 A-3
D905 A-2
D906 B-3
D907 B-4
D908 A-3
D909 B-4
D910 C-4
D911 A-6
D915 A-1
D917 A-6
D918 A-5
D919 A-5
D920 A-5
D921 A-4
D922 A-4
D923 A-4
D924 A-4
D925 A-2
D926 A-2
D927 A-2
D928 A-5
D929 A-5
D930 A-5
D931 A-3
IC901 B-5
IC902 B-6
IC903 B-6
Q901 B-5
Q902 B-5
Q903 B-5
Q906 B-4
Q907 B-4
Q908 B-4
Q909 B-4
Q910 B-3
Q911 B-4
Q912 A-5
Q913 B-4
Q914 A-3
Q915 A-2
Q916 B-2
Q917 C-4
