DVP-CX860/CX870D
4-12
MB-94 (ARP, AV DECODER, 16M SDRAM, VGA, SERVO CONTROL, CONNECTOR, SYSTEM CONTROL,
32M FLASH, PLL, FGA-C, AUDIO) PRINTED WIRING BOARD
— Ref. No. MB-94 Board; 10,000 Series —
ARP, AV DECODER, 16M SDRAM, VGA, SERVO CONTROL, CONNECTOR, SYSTEM CONTROL, 32M FLASH, PLL, FGA-C, AUDIO
MB-94
FR-173 board
AI-20 board
MB-94 board
CH-98 board
ER-12 board
(DVP-CX860(AEP,UK) model)
CK-97 board
POWER BLOCK
CV-34 board

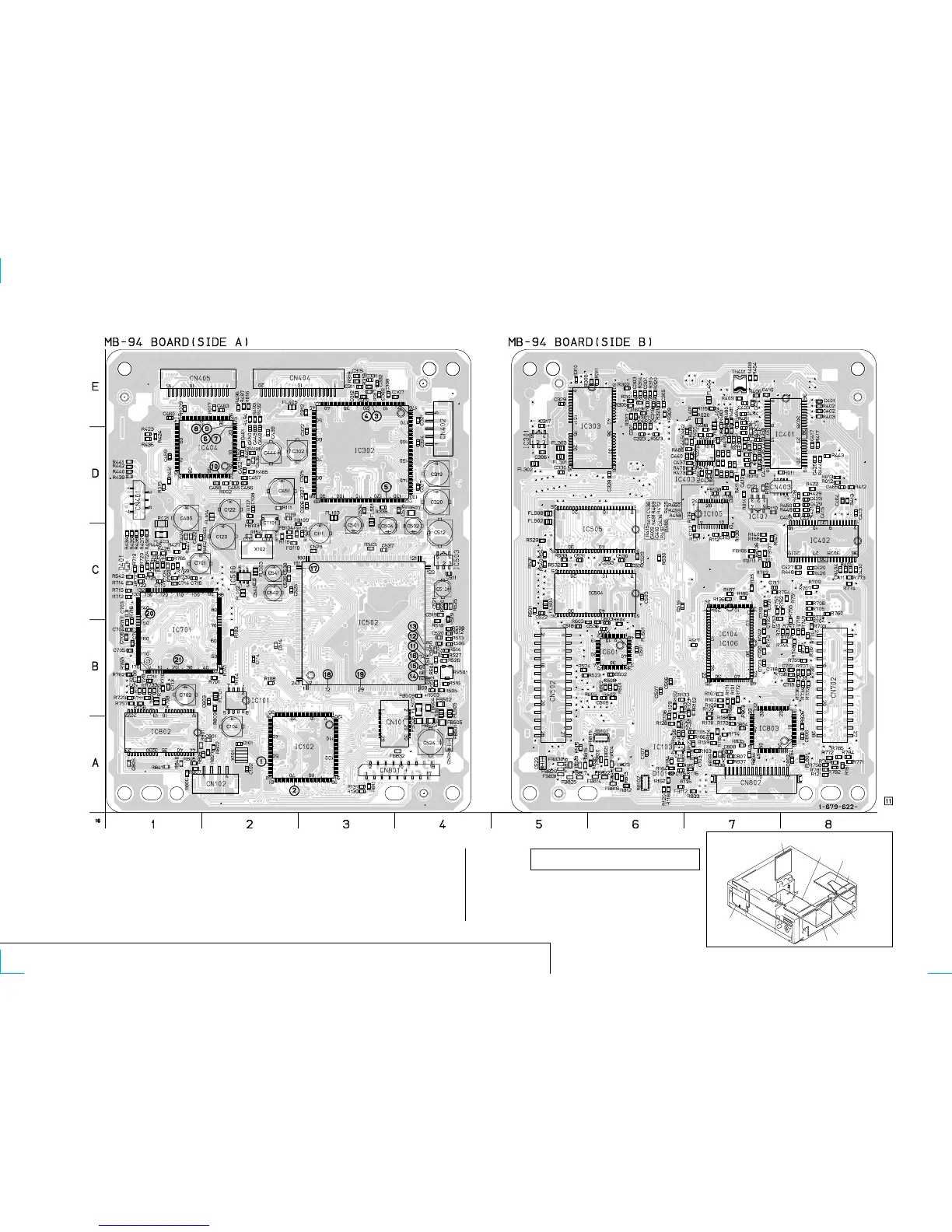

MB-94 BOARD (SIDE A)
D401 C-1
IC101 B-2
IC102 A-3
IC302 D-3
IC404 D-2
IC502 B-3
IC503 C-4
IC506 C-2
IC701 B-1
IC802 A-1
MB-94 BOARD (SIDE B)
D101 A-6
IC103 A-6
IC104 B-7
IC105 D-7
IC106 B-7
IC107 D-7
IC301 D-5
IC303 E-6
IC401 D-8
IC402 C-8
IC403 D-7
IC504 C-6
IC505 C-6
IC601 B-6
IC803 A-7
For printed wiring board
There are a few cases that the part printed on
this diagram isn’t mounted in this model.
