Sony RMT-D123A - Tray Motor), Da-29 (Dr Sensor), Lc-70 (Loading;Cam Motor) Printed Wiring Boards; Tray Motor), Da-29 (Dr Sensor)

DVP-CX860/CX870D
4-65
LOADING/CAM MOTOR
LC-70
DR SENSOR
DA-29
/
TRAY MOTOR
TM-128
/

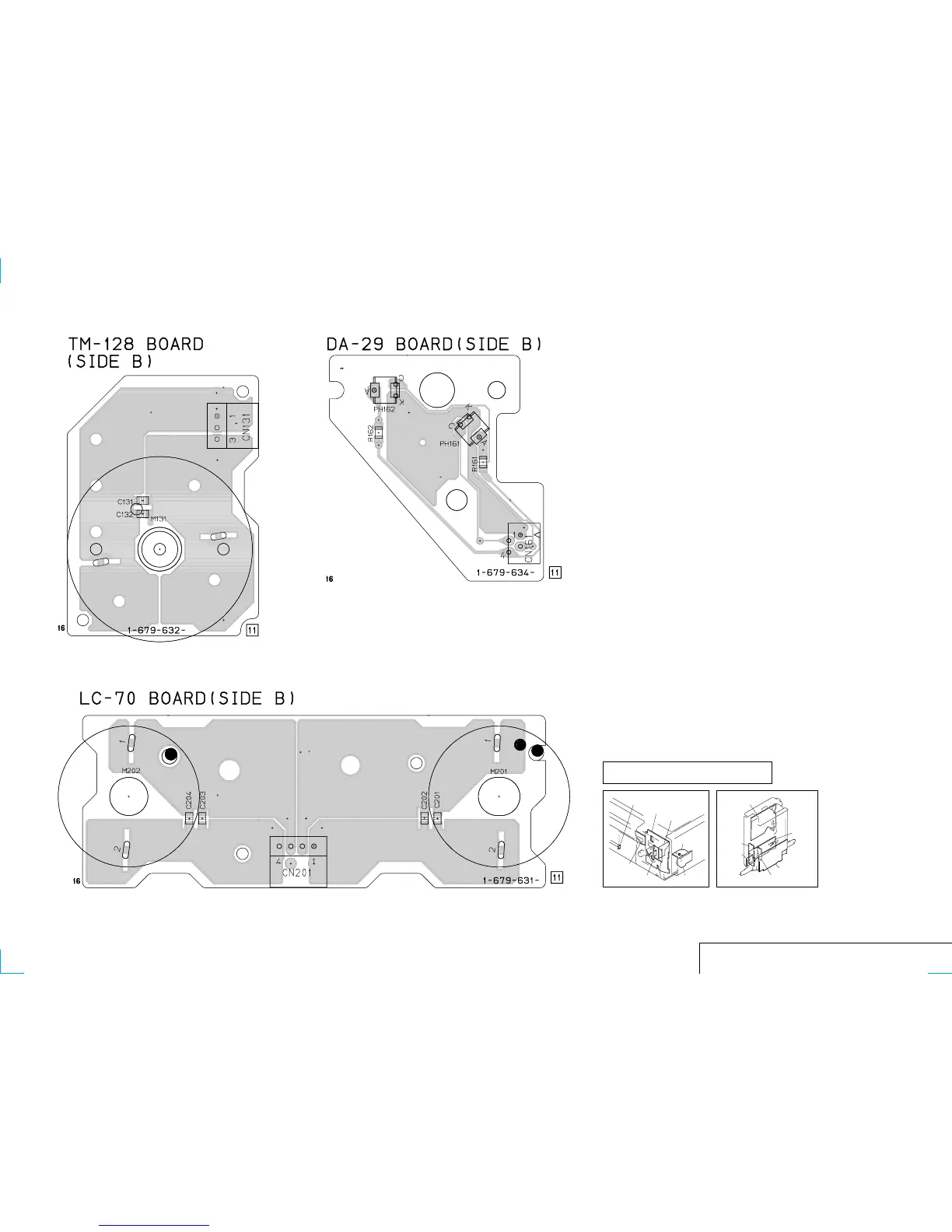

TM-128 (TRAY MOTOR), DA-29 (DR SENSOR), LC-70 (LOADING/CAM MOTOR) PRINTED WIRING BOARDS
— Ref. No. TM-128, DA-29, LC-70 Boards; 1,000 Series —
DM-96 board
TM-128 board
TS-151 board
FL-115 board
LE-30 board (DVP-CX870D model)
DA-29 board
SW-345 board
LS-55 board
LT-38 board
CS-57 board
LT-37 board
TK-59 board
LC-70 board
For printed wiring boards
There are a few cases that the part printed on
this diagram isn’t mounted in this model.
