DVP-CX860/CX870D
4-59 4-60
MOTOR DRIVER
CK-97

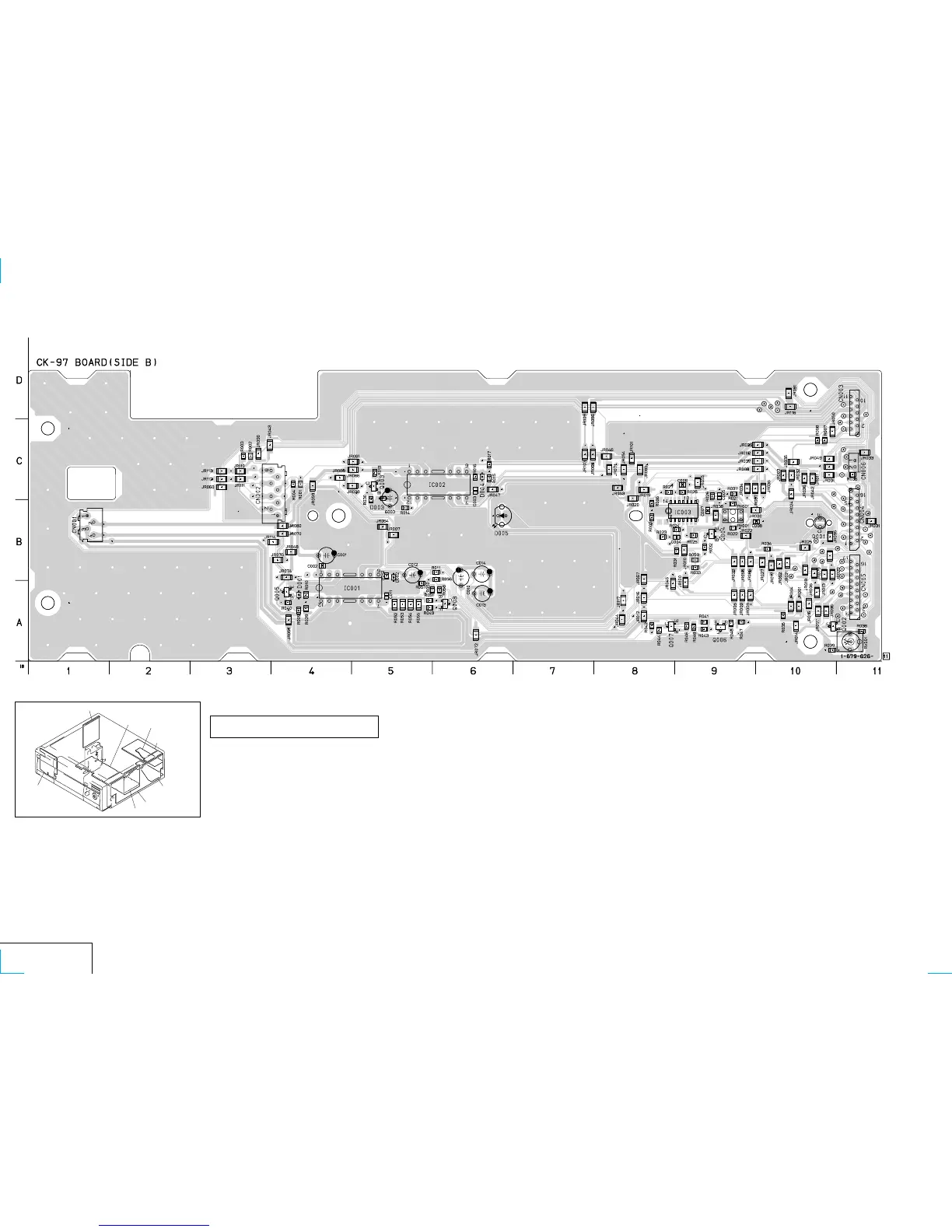

CK-97 (MOTOR DRIVER) PRINTED WIRING BOARD
— Ref. No. CK-97 Board; 2,000 Series —
FR-173 board
AI-20 board
MB-94 board
CH-98 board
ER-12 board
(DVP-CX860(AEP,UK) model)
CK-97 board
POWER BLOCK
CV-34 board
CK-97 BOARD (SIDE B)
D001 A-4
D002 B-5
D003 C-5
D004 C-6
D005 B-6
IC001 A-4
IC002 C-6
IC003 B-9
Q001 B-10
Q002 A-10
Q003 C-5
Q004 B-9
Q005 A-4
Q006 A-9
Q007 A-8
Q008 A-6
For printed wiring board
There are a few cases that the part printed on
this diagram isn’t mounted in this model.
To Next Page
