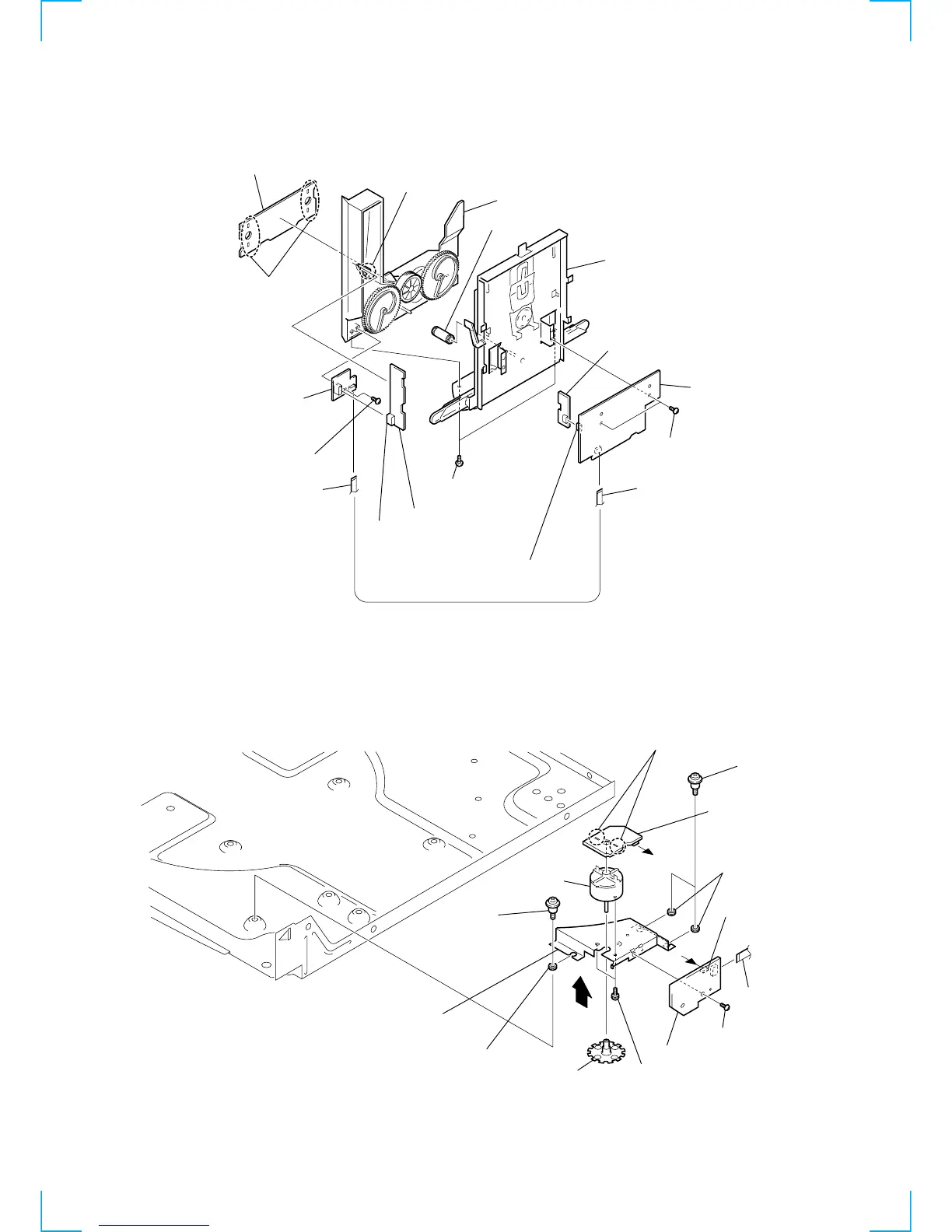

2-9. MECHANICAL CHASSIS SECTION
2-10.T DRIVING ASSEMBLY
2 Two screws (+BV 3 × 10
)
qd Screw
(+PTTWH
2 × 5)
6 Two screws
(+BV
3 × 10)
qf CS-57 board
qh LC-70 board
qg Remove the
four soldlings.
qj Mechanical chassis assy
7 Loading gear (E)
9 Claw
8 Chuck frame block assy
qa LT-37 board
5 LS-55 board
4 LT-38 board
q; Board to board connector
(CN281, 3p)
3 Board to board connector
(CN222, 3p)
qs Flat cable
(CN261, 4p)
1 Flat cable
(CN223, 4p)
q; Remove the two solderings.
1 Screw
(Cushion stopper)
qf DC motor
2 Two screws
(Cushion stopper)
7 Screw (+BV 3 × 6)
qd Two screws (+PS 2.6 × 4)
5 Two motor cushions
A
A
4
Motor cushion
9 TS-151 board
qs Table driving motor gear
qa TM-128 board
8 Board to board
connector (CN102, 3p
)
qg T driving
frame assy
6 Flat cable
(CN101, 11p)
