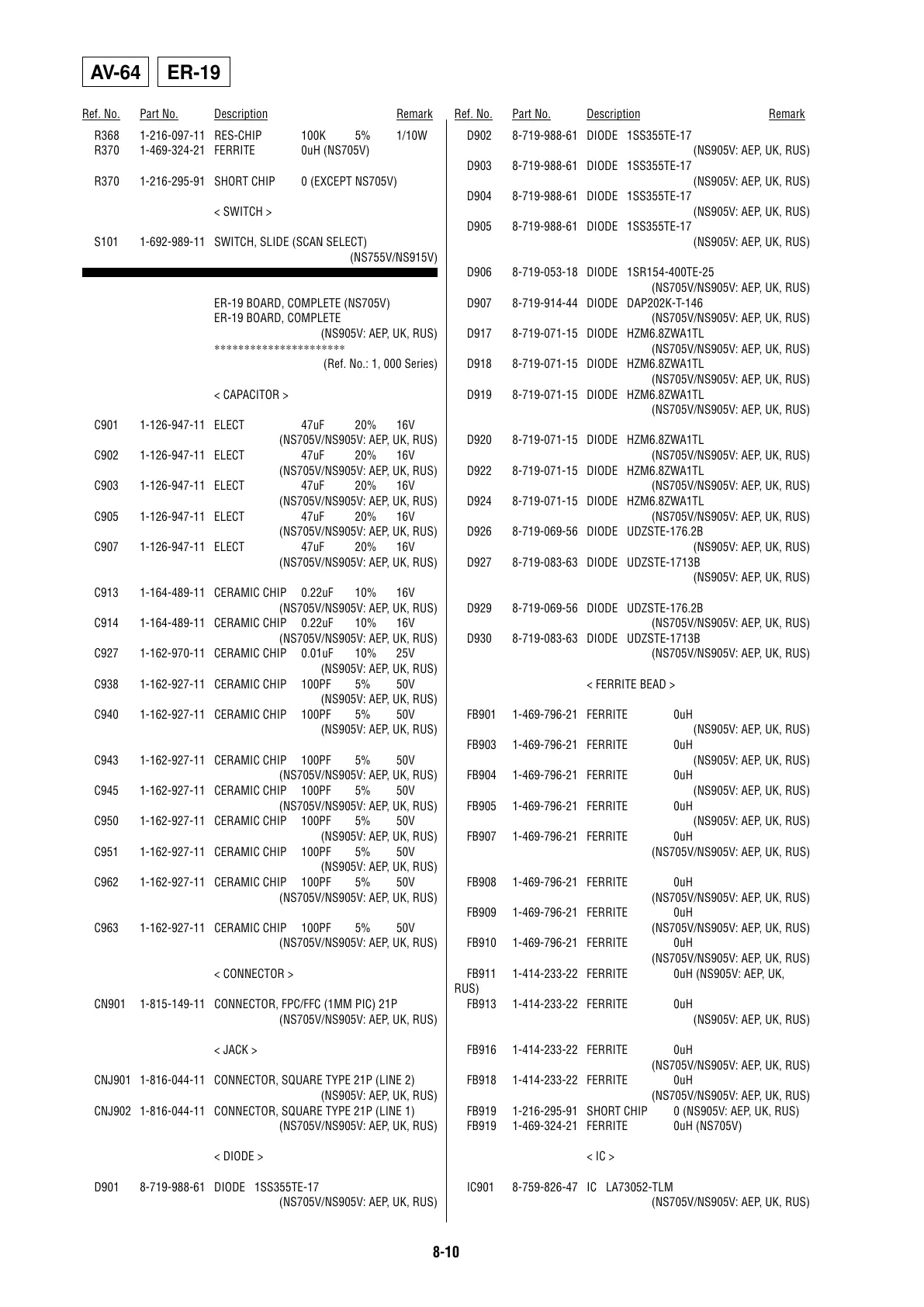

8-10
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
R368 1-216-097-11 RES-CHIP 100K 5% 1/10W
R370 1-469-324-21 FERRITE 0uH (NS705V)
R370 1-216-295-91 SHORT CHIP 0 (EXCEPT NS705V)
< SWITCH >
S101 1-692-989-11 SWITCH, SLIDE (SCAN SELECT)
(NS755V/NS915V)
ER-19 BOARD, COMPLETE (NS705V)
ER-19 BOARD, COMPLETE
(NS905V: AEP, UK, RUS)
**********************
(Ref. No.: 1, 000 Series)
< CAPACITOR >
C901 1-126-947-11 ELECT 47uF 20% 16V
(NS705V/NS905V: AEP, UK, RUS)
C902 1-126-947-11 ELECT 47uF 20% 16V
(NS705V/NS905V: AEP, UK, RUS)
C903 1-126-947-11 ELECT 47uF 20% 16V
(NS705V/NS905V: AEP, UK, RUS)
C905 1-126-947-11 ELECT 47uF 20% 16V
(NS705V/NS905V: AEP, UK, RUS)
C907 1-126-947-11 ELECT 47uF 20% 16V
(NS705V/NS905V: AEP, UK, RUS)
C913 1-164-489-11 CERAMIC CHIP 0.22uF 10% 16V
(NS705V/NS905V: AEP, UK, RUS)
C914 1-164-489-11 CERAMIC CHIP 0.22uF 10% 16V
(NS705V/NS905V: AEP, UK, RUS)
C927 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
(NS905V: AEP, UK, RUS)
C938 1-162-927-11 CERAMIC CHIP 100PF 5% 50V
(NS905V: AEP, UK, RUS)
C940 1-162-927-11 CERAMIC CHIP 100PF 5% 50V
(NS905V: AEP, UK, RUS)
C943 1-162-927-11 CERAMIC CHIP 100PF 5% 50V
(NS705V/NS905V: AEP, UK, RUS)
C945 1-162-927-11 CERAMIC CHIP 100PF 5% 50V
(NS705V/NS905V: AEP, UK, RUS)
C950 1-162-927-11 CERAMIC CHIP 100PF 5% 50V
(NS905V: AEP, UK, RUS)
C951 1-162-927-11 CERAMIC CHIP 100PF 5% 50V
(NS905V: AEP, UK, RUS)
C962 1-162-927-11 CERAMIC CHIP 100PF 5% 50V
(NS705V/NS905V: AEP, UK, RUS)
C963 1-162-927-11 CERAMIC CHIP 100PF 5% 50V
(NS705V/NS905V: AEP, UK, RUS)
< CONNECTOR >
CN901 1-815-149-11 CONNECTOR, FPC/FFC (1MM PIC) 21P
(NS705V/NS905V: AEP, UK, RUS)
< JACK >
CNJ901 1-816-044-11 CONNECTOR, SQUARE TYPE 21P (LINE 2)
(NS905V: AEP, UK, RUS)
CNJ902 1-816-044-11 CONNECTOR, SQUARE TYPE 21P (LINE 1)
(NS705V/NS905V: AEP, UK, RUS)
< DIODE >
D901 8-719-988-61 DIODE 1SS355TE-17
(NS705V/NS905V: AEP, UK, RUS)
D902 8-719-988-61 DIODE 1SS355TE-17
(NS905V: AEP, UK, RUS)
D903 8-719-988-61 DIODE 1SS355TE-17
(NS905V: AEP, UK, RUS)
D904 8-719-988-61 DIODE 1SS355TE-17
(NS905V: AEP, UK, RUS)
D905 8-719-988-61 DIODE 1SS355TE-17
(NS905V: AEP, UK, RUS)
D906 8-719-053-18 DIODE 1SR154-400TE-25
(NS705V/NS905V: AEP, UK, RUS)
D907 8-719-914-44 DIODE DAP202K-T-146
(NS705V/NS905V: AEP, UK, RUS)
D917 8-719-071-15 DIODE HZM6.8ZWA1TL
(NS705V/NS905V: AEP, UK, RUS)
D918 8-719-071-15 DIODE HZM6.8ZWA1TL
(NS705V/NS905V: AEP, UK, RUS)
D919 8-719-071-15 DIODE HZM6.8ZWA1TL
(NS705V/NS905V: AEP, UK, RUS)
D920 8-719-071-15 DIODE HZM6.8ZWA1TL
(NS705V/NS905V: AEP, UK, RUS)
D922 8-719-071-15 DIODE HZM6.8ZWA1TL
(NS705V/NS905V: AEP, UK, RUS)
D924 8-719-071-15 DIODE HZM6.8ZWA1TL
(NS705V/NS905V: AEP, UK, RUS)
D926 8-719-069-56 DIODE UDZSTE-176.2B
(NS905V: AEP, UK, RUS)
D927 8-719-083-63 DIODE UDZSTE-1713B
(NS905V: AEP, UK, RUS)
D929 8-719-069-56 DIODE UDZSTE-176.2B
(NS705V/NS905V: AEP, UK, RUS)
D930 8-719-083-63 DIODE UDZSTE-1713B
(NS705V/NS905V: AEP, UK, RUS)
< FERRITE BEAD >
FB901 1-469-796-21 FERRITE 0uH
(NS905V: AEP, UK, RUS)
FB903 1-469-796-21 FERRITE 0uH
(NS905V: AEP, UK, RUS)
FB904 1-469-796-21 FERRITE 0uH
(NS905V: AEP, UK, RUS)
FB905 1-469-796-21 FERRITE 0uH
(NS905V: AEP, UK, RUS)
FB907 1-469-796-21 FERRITE 0uH
(NS705V/NS905V: AEP, UK, RUS)
FB908 1-469-796-21 FERRITE 0uH
(NS705V/NS905V: AEP, UK, RUS)
FB909 1-469-796-21 FERRITE 0uH
(NS705V/NS905V: AEP, UK, RUS)
FB910 1-469-796-21 FERRITE 0uH
(NS705V/NS905V: AEP, UK, RUS)
FB911 1-414-233-22 FERRITE 0uH (NS905V: AEP, UK,
RUS)
FB913 1-414-233-22 FERRITE 0uH
(NS905V: AEP, UK, RUS)
FB916 1-414-233-22 FERRITE 0uH
(NS705V/NS905V: AEP, UK, RUS)
FB918 1-414-233-22 FERRITE 0uH
(NS705V/NS905V: AEP, UK, RUS)
FB919 1-216-295-91 SHORT CHIP 0 (NS905V: AEP, UK, RUS)
FB919 1-469-324-21 FERRITE 0uH (NS705V)
< IC >
IC901 8-759-826-47 IC LA73052-TLM
(NS705V/NS905V: AEP, UK, RUS)
AV-64 ER-19
