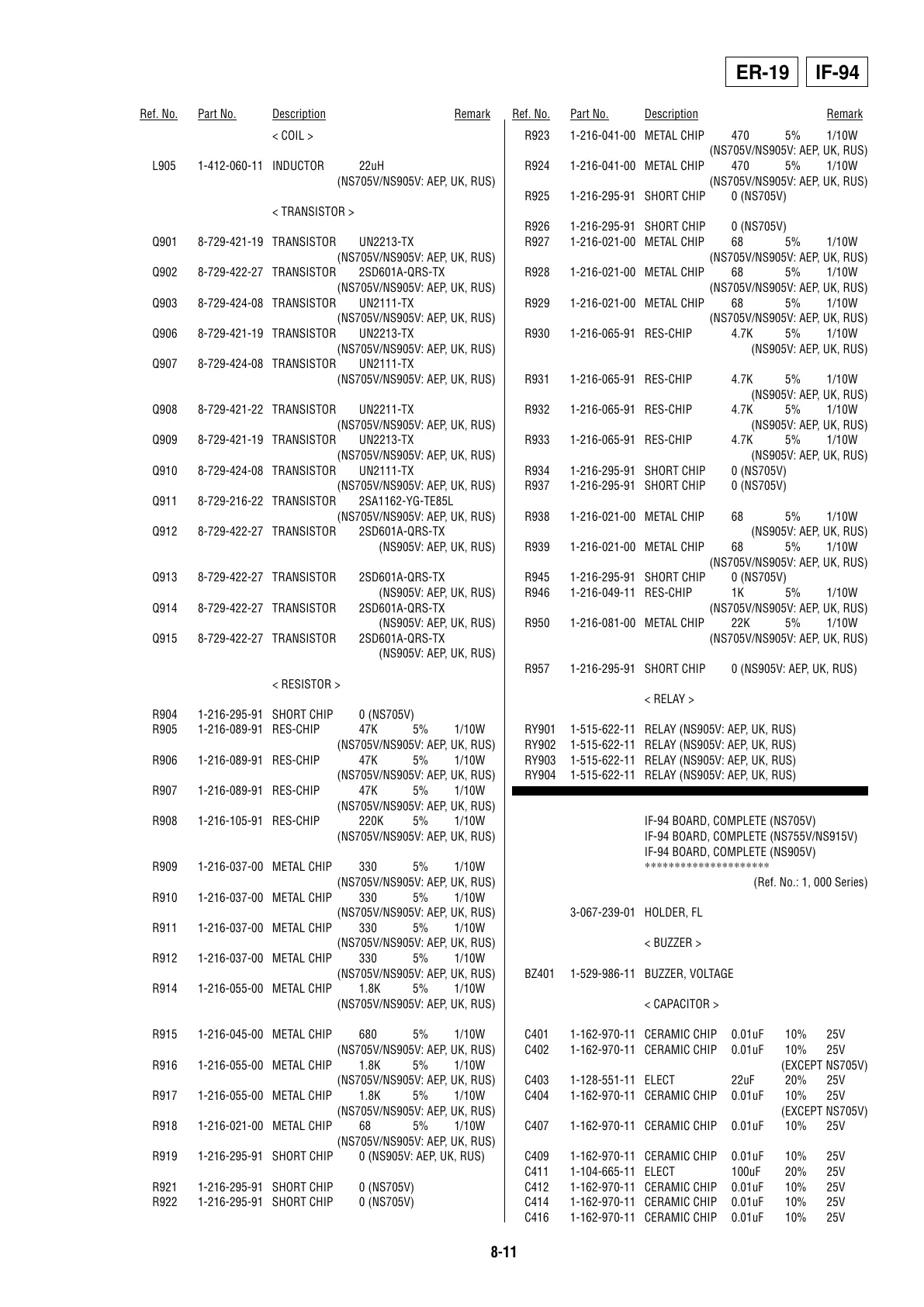

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
ER-19 IF-94
< COIL >
L905 1-412-060-11 INDUCTOR 22uH
(NS705V/NS905V: AEP, UK, RUS)
< TRANSISTOR >
Q901 8-729-421-19 TRANSISTOR UN2213-TX
(NS705V/NS905V: AEP, UK, RUS)
Q902 8-729-422-27 TRANSISTOR 2SD601A-QRS-TX
(NS705V/NS905V: AEP, UK, RUS)
Q903 8-729-424-08 TRANSISTOR UN2111-TX
(NS705V/NS905V: AEP, UK, RUS)
Q906 8-729-421-19 TRANSISTOR UN2213-TX
(NS705V/NS905V: AEP, UK, RUS)
Q907 8-729-424-08 TRANSISTOR UN2111-TX
(NS705V/NS905V: AEP, UK, RUS)
Q908 8-729-421-22 TRANSISTOR UN2211-TX
(NS705V/NS905V: AEP, UK, RUS)
Q909 8-729-421-19 TRANSISTOR UN2213-TX
(NS705V/NS905V: AEP, UK, RUS)
Q910 8-729-424-08 TRANSISTOR UN2111-TX
(NS705V/NS905V: AEP, UK, RUS)
Q911 8-729-216-22 TRANSISTOR 2SA1162-YG-TE85L
(NS705V/NS905V: AEP, UK, RUS)
Q912 8-729-422-27 TRANSISTOR 2SD601A-QRS-TX
(NS905V: AEP, UK, RUS)
Q913 8-729-422-27 TRANSISTOR 2SD601A-QRS-TX
(NS905V: AEP, UK, RUS)
Q914 8-729-422-27 TRANSISTOR 2SD601A-QRS-TX
(NS905V: AEP, UK, RUS)
Q915 8-729-422-27 TRANSISTOR 2SD601A-QRS-TX
(NS905V: AEP, UK, RUS)
< RESISTOR >
R904 1-216-295-91 SHORT CHIP 0 (NS705V)
R905 1-216-089-91 RES-CHIP 47K 5% 1/10W
(NS705V/NS905V: AEP, UK, RUS)
R906 1-216-089-91 RES-CHIP 47K 5% 1/10W
(NS705V/NS905V: AEP, UK, RUS)
R907 1-216-089-91 RES-CHIP 47K 5% 1/10W
(NS705V/NS905V: AEP, UK, RUS)
R908 1-216-105-91 RES-CHIP 220K 5% 1/10W
(NS705V/NS905V: AEP, UK, RUS)
R909 1-216-037-00 METAL CHIP 330 5% 1/10W
(NS705V/NS905V: AEP, UK, RUS)
R910 1-216-037-00 METAL CHIP 330 5% 1/10W
(NS705V/NS905V: AEP, UK, RUS)
R911 1-216-037-00 METAL CHIP 330 5% 1/10W
(NS705V/NS905V: AEP, UK, RUS)
R912 1-216-037-00 METAL CHIP 330 5% 1/10W
(NS705V/NS905V: AEP, UK, RUS)
R914 1-216-055-00 METAL CHIP 1.8K 5% 1/10W
(NS705V/NS905V: AEP, UK, RUS)
R915 1-216-045-00 METAL CHIP 680 5% 1/10W
(NS705V/NS905V: AEP, UK, RUS)
R916 1-216-055-00 METAL CHIP 1.8K 5% 1/10W
(NS705V/NS905V: AEP, UK, RUS)
R917 1-216-055-00 METAL CHIP 1.8K 5% 1/10W
(NS705V/NS905V: AEP, UK, RUS)
R918 1-216-021-00 METAL CHIP 68 5% 1/10W
(NS705V/NS905V: AEP, UK, RUS)
R919 1-216-295-91 SHORT CHIP 0 (NS905V: AEP, UK, RUS)
R921 1-216-295-91 SHORT CHIP 0 (NS705V)
R922 1-216-295-91 SHORT CHIP 0 (NS705V)
R923 1-216-041-00 METAL CHIP 470 5% 1/10W
(NS705V/NS905V: AEP, UK, RUS)
R924 1-216-041-00 METAL CHIP 470 5% 1/10W
(NS705V/NS905V: AEP, UK, RUS)
R925 1-216-295-91 SHORT CHIP 0 (NS705V)
R926 1-216-295-91 SHORT CHIP 0 (NS705V)
R927 1-216-021-00 METAL CHIP 68 5% 1/10W
(NS705V/NS905V: AEP, UK, RUS)
R928 1-216-021-00 METAL CHIP 68 5% 1/10W
(NS705V/NS905V: AEP, UK, RUS)
R929 1-216-021-00 METAL CHIP 68 5% 1/10W
(NS705V/NS905V: AEP, UK, RUS)
R930 1-216-065-91 RES-CHIP 4.7K 5% 1/10W
(NS905V: AEP, UK, RUS)
R931 1-216-065-91 RES-CHIP 4.7K 5% 1/10W
(NS905V: AEP, UK, RUS)
R932 1-216-065-91 RES-CHIP 4.7K 5% 1/10W
(NS905V: AEP, UK, RUS)
R933 1-216-065-91 RES-CHIP 4.7K 5% 1/10W
(NS905V: AEP, UK, RUS)
R934 1-216-295-91 SHORT CHIP 0 (NS705V)
R937 1-216-295-91 SHORT CHIP 0 (NS705V)
R938 1-216-021-00 METAL CHIP 68 5% 1/10W
(NS905V: AEP, UK, RUS)
R939 1-216-021-00 METAL CHIP 68 5% 1/10W
(NS705V/NS905V: AEP, UK, RUS)
R945 1-216-295-91 SHORT CHIP 0 (NS705V)
R946 1-216-049-11 RES-CHIP 1K 5% 1/10W
(NS705V/NS905V: AEP, UK, RUS)
R950 1-216-081-00 METAL CHIP 22K 5% 1/10W
(NS705V/NS905V: AEP, UK, RUS)
R957 1-216-295-91 SHORT CHIP 0 (NS905V: AEP, UK, RUS)
< RELAY >
RY901 1-515-622-11 RELAY (NS905V: AEP, UK, RUS)
RY902 1-515-622-11 RELAY (NS905V: AEP, UK, RUS)
RY903 1-515-622-11 RELAY (NS905V: AEP, UK, RUS)
RY904 1-515-622-11 RELAY (NS905V: AEP, UK, RUS)
IF-94 BOARD, COMPLETE (NS705V)
IF-94 BOARD, COMPLETE (NS755V/NS915V)
IF-94 BOARD, COMPLETE (NS905V)
*********************
(Ref. No.: 1, 000 Series)
3-067-239-01 HOLDER, FL
< BUZZER >
BZ401 1-529-986-11 BUZZER, VOLTAGE
< CAPACITOR >
C401 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C402 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
(EXCEPT NS705V)
C403 1-128-551-11 ELECT 22uF 20% 25V
C404 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
(EXCEPT NS705V)
C407 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C409 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C411 1-104-665-11 ELECT 100uF 20% 25V
C412 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C414 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C416 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
