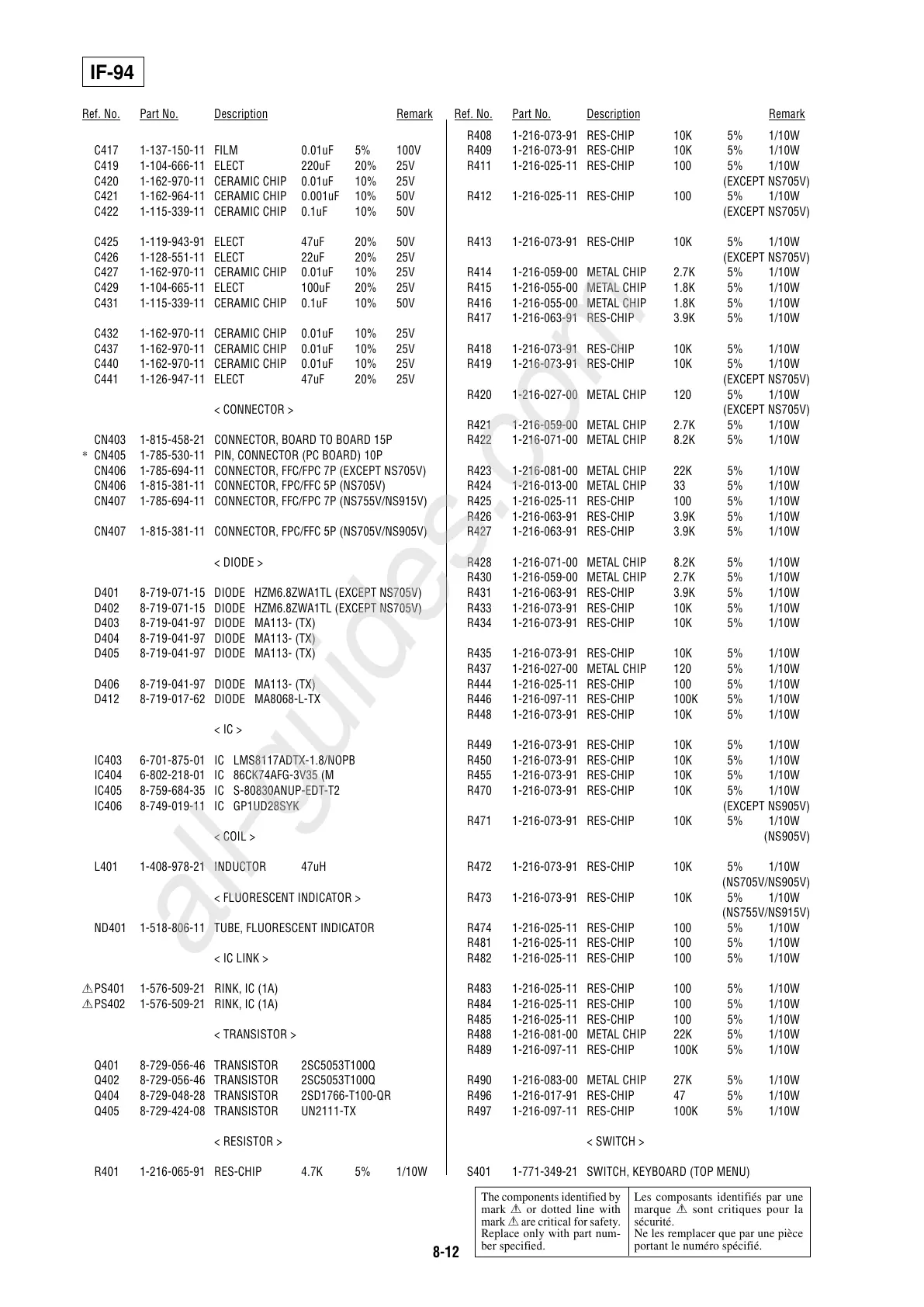

8-12
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
C417 1-137-150-11 FILM 0.01uF 5% 100V
C419 1-104-666-11 ELECT 220uF 20% 25V
C420 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C421 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C422 1-115-339-11 CERAMIC CHIP 0.1uF 10% 50V
C425 1-119-943-91 ELECT 47uF 20% 50V
C426 1-128-551-11 ELECT 22uF 20% 25V
C427 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C429 1-104-665-11 ELECT 100uF 20% 25V
C431 1-115-339-11 CERAMIC CHIP 0.1uF 10% 50V
C432 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C437 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C440 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C441 1-126-947-11 ELECT 47uF 20% 25V
< CONNECTOR >
CN403 1-815-458-21 CONNECTOR, BOARD TO BOARD 15P
* CN405 1-785-530-11 PIN, CONNECTOR (PC BOARD) 10P
CN406 1-785-694-11 CONNECTOR, FFC/FPC 7P (EXCEPT NS705V)
CN406 1-815-381-11 CONNECTOR, FPC/FFC 5P (NS705V)
CN407 1-785-694-11 CONNECTOR, FFC/FPC 7P (NS755V/NS915V)
CN407 1-815-381-11 CONNECTOR, FPC/FFC 5P (NS705V/NS905V)
< DIODE >
D401 8-719-071-15 DIODE HZM6.8ZWA1TL (EXCEPT NS705V)
D402 8-719-071-15 DIODE HZM6.8ZWA1TL (EXCEPT NS705V)
D403 8-719-041-97 DIODE MA113- (TX)
D404 8-719-041-97 DIODE MA113- (TX)
D405 8-719-041-97 DIODE MA113- (TX)
D406 8-719-041-97 DIODE MA113- (TX)
D412 8-719-017-62 DIODE MA8068-L-TX
< IC >
IC403 6-701-875-01 IC LMS8117ADTX-1.8/NOPB
IC404 6-802-218-01 IC 86CK74AFG-3V35 (M
IC405 8-759-684-35 IC S-80830ANUP-EDT-T2
IC406 8-749-019-11 IC GP1UD28SYK
< COIL >
L401 1-408-978-21 INDUCTOR 47uH
< FLUORESCENT INDICATOR >
ND401 1-518-806-11 TUBE, FLUORESCENT INDICATOR
< IC LINK >
0 PS401 1-576-509-21 RINK, IC (1A)
0 PS402 1-576-509-21 RINK, IC (1A)
< TRANSISTOR >
Q401 8-729-056-46 TRANSISTOR 2SC5053T100Q
Q402 8-729-056-46 TRANSISTOR 2SC5053T100Q
Q404 8-729-048-28 TRANSISTOR 2SD1766-T100-QR
Q405 8-729-424-08 TRANSISTOR UN2111-TX
< RESISTOR >
R401 1-216-065-91 RES-CHIP 4.7K 5% 1/10W
R408 1-216-073-91 RES-CHIP 10K 5% 1/10W
R409 1-216-073-91 RES-CHIP 10K 5% 1/10W
R411 1-216-025-11 RES-CHIP 100 5% 1/10W
(EXCEPT NS705V)
R412 1-216-025-11 RES-CHIP 100 5% 1/10W
(EXCEPT NS705V)
R413 1-216-073-91 RES-CHIP 10K 5% 1/10W
(EXCEPT NS705V)
R414 1-216-059-00 METAL CHIP 2.7K 5% 1/10W
R415 1-216-055-00 METAL CHIP 1.8K 5% 1/10W
R416 1-216-055-00 METAL CHIP 1.8K 5% 1/10W
R417 1-216-063-91 RES-CHIP 3.9K 5% 1/10W
R418 1-216-073-91 RES-CHIP 10K 5% 1/10W
R419 1-216-073-91 RES-CHIP 10K 5% 1/10W
(EXCEPT NS705V)
R420 1-216-027-00 METAL CHIP 120 5% 1/10W
(EXCEPT NS705V)
R421 1-216-059-00 METAL CHIP 2.7K 5% 1/10W
R422 1-216-071-00 METAL CHIP 8.2K 5% 1/10W
R423 1-216-081-00 METAL CHIP 22K 5% 1/10W
R424 1-216-013-00 METAL CHIP 33 5% 1/10W
R425 1-216-025-11 RES-CHIP 100 5% 1/10W
R426 1-216-063-91 RES-CHIP 3.9K 5% 1/10W
R427 1-216-063-91 RES-CHIP 3.9K 5% 1/10W
R428 1-216-071-00 METAL CHIP 8.2K 5% 1/10W
R430 1-216-059-00 METAL CHIP 2.7K 5% 1/10W
R431 1-216-063-91 RES-CHIP 3.9K 5% 1/10W
R433 1-216-073-91 RES-CHIP 10K 5% 1/10W
R434 1-216-073-91 RES-CHIP 10K 5% 1/10W
R435 1-216-073-91 RES-CHIP 10K 5% 1/10W
R437 1-216-027-00 METAL CHIP 120 5% 1/10W
R444 1-216-025-11 RES-CHIP 100 5% 1/10W
R446 1-216-097-11 RES-CHIP 100K 5% 1/10W
R448 1-216-073-91 RES-CHIP 10K 5% 1/10W
R449 1-216-073-91 RES-CHIP 10K 5% 1/10W
R450 1-216-073-91 RES-CHIP 10K 5% 1/10W
R455 1-216-073-91 RES-CHIP 10K 5% 1/10W
R470 1-216-073-91 RES-CHIP 10K 5% 1/10W
(EXCEPT NS905V)
R471 1-216-073-91 RES-CHIP 10K 5% 1/10W
(NS905V)
R472 1-216-073-91 RES-CHIP 10K 5% 1/10W
(NS705V/NS905V)
R473 1-216-073-91 RES-CHIP 10K 5% 1/10W
(NS755V/NS915V)
R474 1-216-025-11 RES-CHIP 100 5% 1/10W
R481 1-216-025-11 RES-CHIP 100 5% 1/10W
R482 1-216-025-11 RES-CHIP 100 5% 1/10W
R483 1-216-025-11 RES-CHIP 100 5% 1/10W
R484 1-216-025-11 RES-CHIP 100 5% 1/10W
R485 1-216-025-11 RES-CHIP 100 5% 1/10W
R488 1-216-081-00 METAL CHIP 22K 5% 1/10W
R489 1-216-097-11 RES-CHIP 100K 5% 1/10W
R490 1-216-083-00 METAL CHIP 27K 5% 1/10W
R496 1-216-017-91 RES-CHIP 47 5% 1/10W
R497 1-216-097-11 RES-CHIP 100K 5% 1/10W
< SWITCH >
S401 1-771-349-21 SWITCH, KEYBOARD (TOP MENU)
IF-94
The components identified by
mark 0 or dotted line with
mark 0 are critical for safety.
Replace only with part num-
ber specified.
Les composants identifiés par une
marque 0 sont critiques pour la
sécurité.
Ne les remplacer que par une pièce
portant le numéro spécifié.
