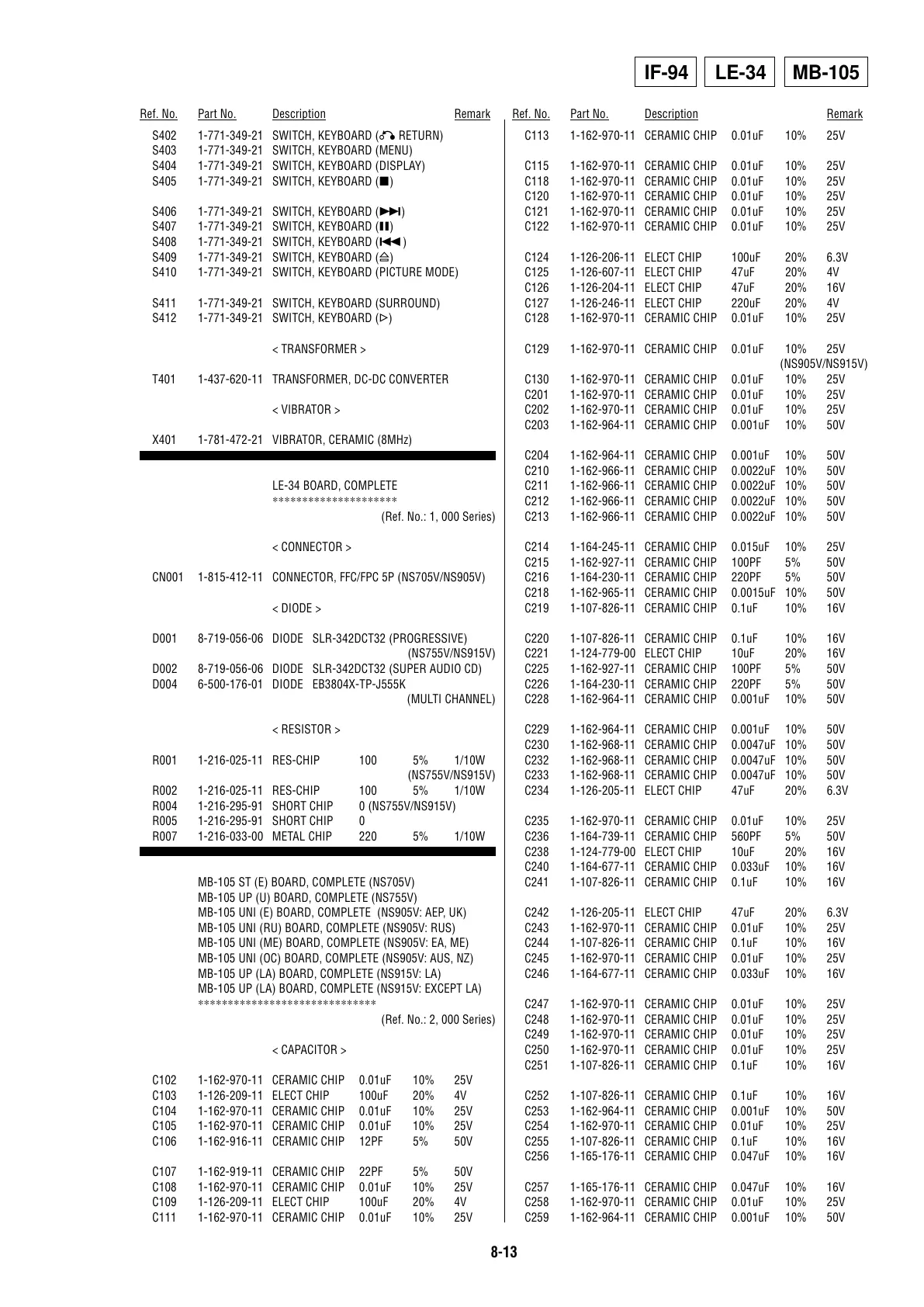

8-13
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
S402 1-771-349-21 SWITCH, KEYBOARD (O RETURN)
S403 1-771-349-21 SWITCH, KEYBOARD (MENU)
S404 1-771-349-21 SWITCH, KEYBOARD (DISPLAY)
S405 1-771-349-21 SWITCH, KEYBOARD (x)
S406 1-771-349-21 SWITCH, KEYBOARD (>)
S407 1-771-349-21 SWITCH, KEYBOARD (X)
S408 1-771-349-21 SWITCH, KEYBOARD (.)
S409 1-771-349-21 SWITCH, KEYBOARD (A)
S410 1-771-349-21 SWITCH, KEYBOARD (PICTURE MODE)
S411 1-771-349-21 SWITCH, KEYBOARD (SURROUND)
S412 1-771-349-21 SWITCH, KEYBOARD (G)
< TRANSFORMER >
T401 1-437-620-11 TRANSFORMER, DC-DC CONVERTER
< VIBRATOR >
X401 1-781-472-21 VIBRATOR, CERAMIC (8MHz)
LE-34 BOARD, COMPLETE
*********************
(Ref. No.: 1, 000 Series)
< CONNECTOR >
CN001 1-815-412-11 CONNECTOR, FFC/FPC 5P (NS705V/NS905V)
< DIODE >
D001 8-719-056-06 DIODE SLR-342DCT32 (PROGRESSIVE)
(NS755V/NS915V)
D002 8-719-056-06 DIODE SLR-342DCT32 (SUPER AUDIO CD)
D004 6-500-176-01 DIODE EB3804X-TP-J555K
(MULTI CHANNEL)
< RESISTOR >
R001 1-216-025-11 RES-CHIP 100 5% 1/10W
(NS755V/NS915V)
R002 1-216-025-11 RES-CHIP 100 5% 1/10W
R004 1-216-295-91 SHORT CHIP 0 (NS755V/NS915V)
R005 1-216-295-91 SHORT CHIP 0
R007 1-216-033-00 METAL CHIP 220 5% 1/10W
MB-105 ST (E) BOARD, COMPLETE (NS705V)
MB-105 UP (U) BOARD, COMPLETE (NS755V)
MB-105 UNI (E) BOARD, COMPLETE (NS905V: AEP, UK)
MB-105 UNI (RU) BOARD, COMPLETE (NS905V: RUS)
MB-105 UNI (ME) BOARD, COMPLETE (NS905V: EA, ME)
MB-105 UNI (OC) BOARD, COMPLETE (NS905V: AUS, NZ)
MB-105 UP (LA) BOARD, COMPLETE (NS915V: LA)
MB-105 UP (LA) BOARD, COMPLETE (NS915V: EXCEPT LA)
******************************
(Ref. No.: 2, 000 Series)
< CAPACITOR >
C102 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C103 1-126-209-11 ELECT CHIP 100uF 20% 4V
C104 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C105 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C106 1-162-916-11 CERAMIC CHIP 12PF 5% 50V
C107 1-162-919-11 CERAMIC CHIP 22PF 5% 50V
C108 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C109 1-126-209-11 ELECT CHIP 100uF 20% 4V
C111 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C113 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C115 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C118 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C120 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C121 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C122 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C124 1-126-206-11 ELECT CHIP 100uF 20% 6.3V
C125 1-126-607-11 ELECT CHIP 47uF 20% 4V
C126 1-126-204-11 ELECT CHIP 47uF 20% 16V
C127 1-126-246-11 ELECT CHIP 220uF 20% 4V
C128 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C129 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
(NS905V/NS915V)
C130 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C201 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C202 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C203 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C204 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C210 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V
C211 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V
C212 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V
C213 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V
C214 1-164-245-11 CERAMIC CHIP 0.015uF 10% 25V
C215 1-162-927-11 CERAMIC CHIP 100PF 5% 50V
C216 1-164-230-11 CERAMIC CHIP 220PF 5% 50V
C218 1-162-965-11 CERAMIC CHIP 0.0015uF 10% 50V
C219 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C220 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C221 1-124-779-00 ELECT CHIP 10uF 20% 16V
C225 1-162-927-11 CERAMIC CHIP 100PF 5% 50V
C226 1-164-230-11 CERAMIC CHIP 220PF 5% 50V
C228 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C229 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C230 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V
C232 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V
C233 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V
C234 1-126-205-11 ELECT CHIP 47uF 20% 6.3V
C235 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C236 1-164-739-11 CERAMIC CHIP 560PF 5% 50V
C238 1-124-779-00 ELECT CHIP 10uF 20% 16V
C240 1-164-677-11 CERAMIC CHIP 0.033uF 10% 16V
C241 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C242 1-126-205-11 ELECT CHIP 47uF 20% 6.3V
C243 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C244 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C245 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C246 1-164-677-11 CERAMIC CHIP 0.033uF 10% 16V
C247 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C248 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C249 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C250 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C251 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C252 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C253 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C254 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C255 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C256 1-165-176-11 CERAMIC CHIP 0.047uF 10% 16V
C257 1-165-176-11 CERAMIC CHIP 0.047uF 10% 16V
C258 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C259 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
IF-94 LE-34 MB-105
