6-14

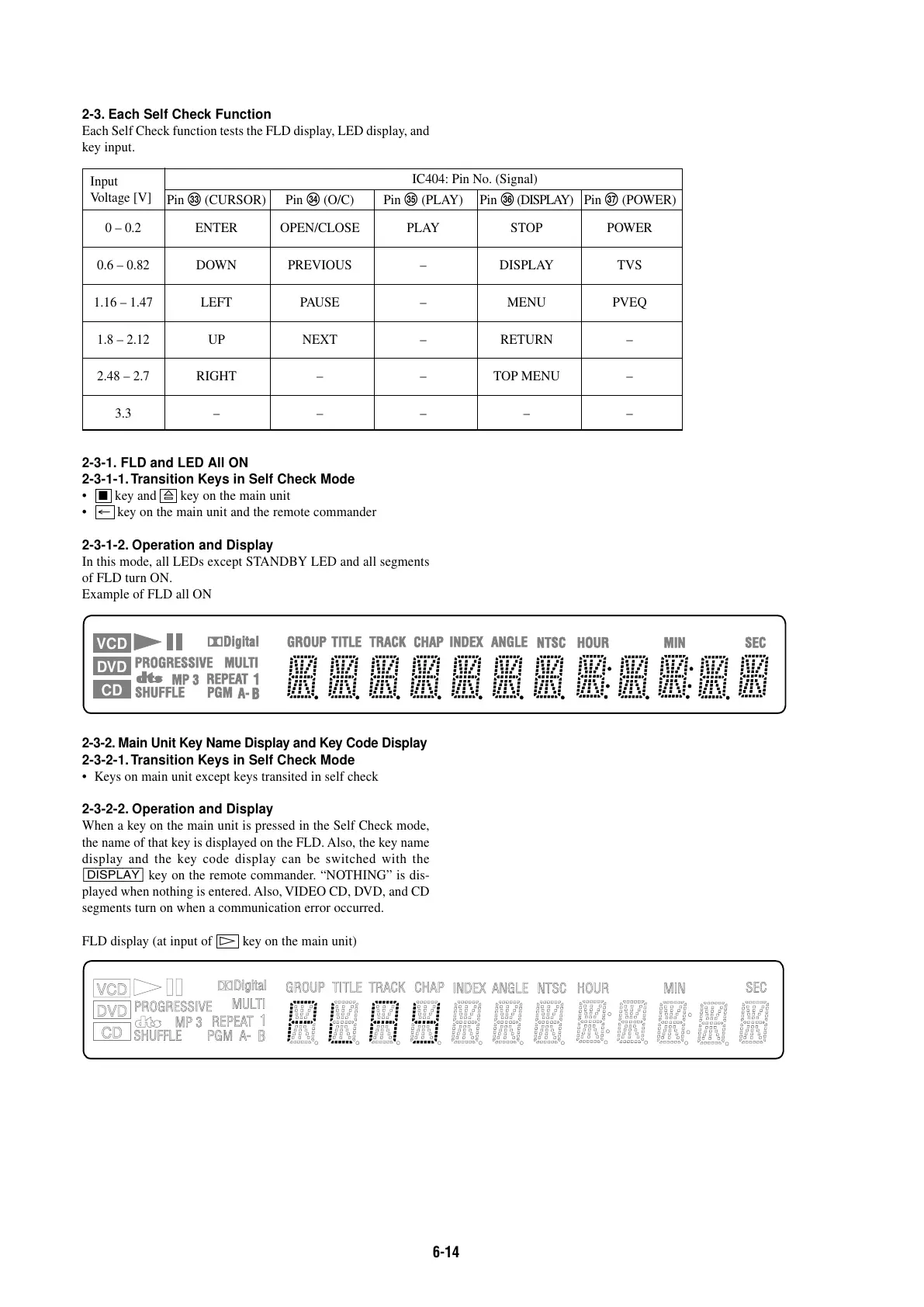

2-3. Each Self Check Function
Each Self Check function tests the FLD display, LED display, and
key input.
2-3-1. FLD and LED All ON
2-3-1-1. Transition Keys in Self Check Mode
•
x key and A key on the main unit
• ← key on the main unit and the remote commander
2-3-1-2. Operation and Display
In this mode, all LEDs except STANDBY LED and all segments
of FLD turn ON.
Example of FLD all ON
2-3-2. Main Unit Key Name Display and Key Code Display
2-3-2-1. Transition Keys in Self Check Mode
•Keys on main unit except keys transited in self check
2-3-2-2. Operation and Display
When a key on the main unit is pressed in the Self Check mode,
the name of that key is displayed on the FLD. Also, the key name
display and the key code display can be switched with the
[DISPLAY] key on the remote commander. “NOTHING” is dis-
played when nothing is entered. Also, VIDEO CD, DVD, and CD
segments turn on when a communication error occurred.
FLD display (at input of H key on the main unit)
Input
IC404: Pin No. (Signal)
Voltage [V]
Pin ed (CURSOR) Pin ef (O/C) Pin eg (PLAY) Pin eh (DISPLAY) Pin ej (POWER)
0 – 0.2 ENTER OPEN/CLOSE PLAY STOP POWER
0.6 – 0.82 DOWN PREVIOUS – DISPLAY TVS
1.16 – 1.47 LEFT PAUSE – MENU PVEQ
1.8 – 2.12 UP NEXT – RETURN –
2.48 – 2.7 RIGHT – – TOP MENU –
3.3 – – – – –
VCD
PROGRESSIVE MULTI
MP 3
SHUFFLE
REPEAT
1
;Digital
PGM
GROUP TITLE
TRACK
CHAP
INDEX ANGLE
NTSC HOUR MIN
SEC
A-
B
DVD
CD
To Next Page
