Sony SLV-D910AZ - VCR Deck Parts Locations; Top View

2-4
2-3 VCR DECK PARTS LOCATIONS
2-3-1 Top View
1
2
3
4
5
6
1 GEAR FL CAM
2 MOTOR LOADING ASS’Y
3 LEVER FL ARM ASS’Y
4 HOLDER FL CASSETTE ASS’Y
5 LEVER FL DOOR
6 SLIDER DRIVE

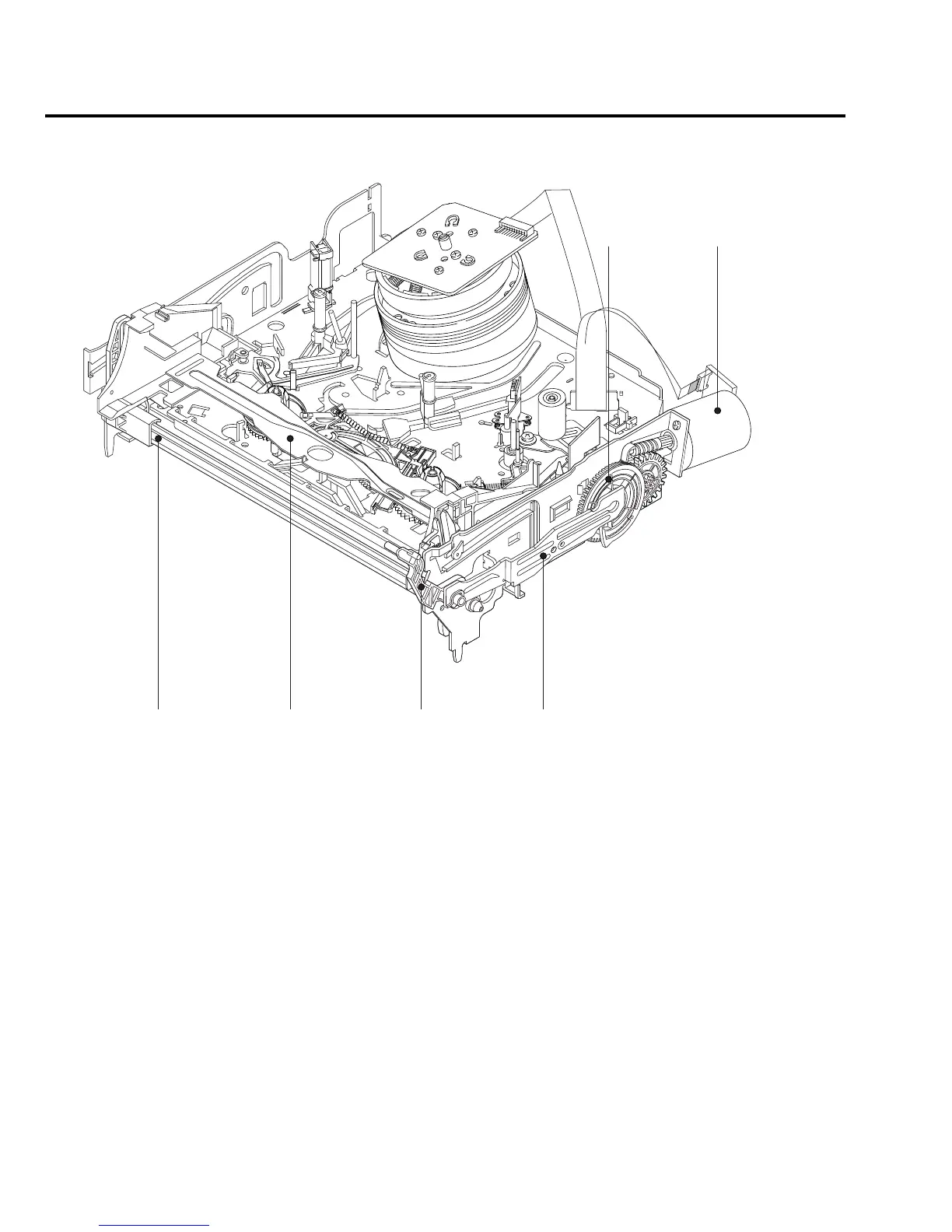

Fig. 2-8 Top parts Location-1
