Sony SLV-D910AZ - Skew Adjustment

6-5
6-2-2 Skew Adjustment
6-2-2(a) Adjustment Spec. and Test Point
< Table 6-2 >
Test Disc Adjustment Spec. Test Point Adjustment Location
TDV-533 “SKEW” Ass’y Deck - Top Side
Chapter 14 Flat Waveform (DVD Main PCB - Bottom Side) (See Fig. 6-6)
(P/N: J-6090-135-A) (See Fig. 6-5)

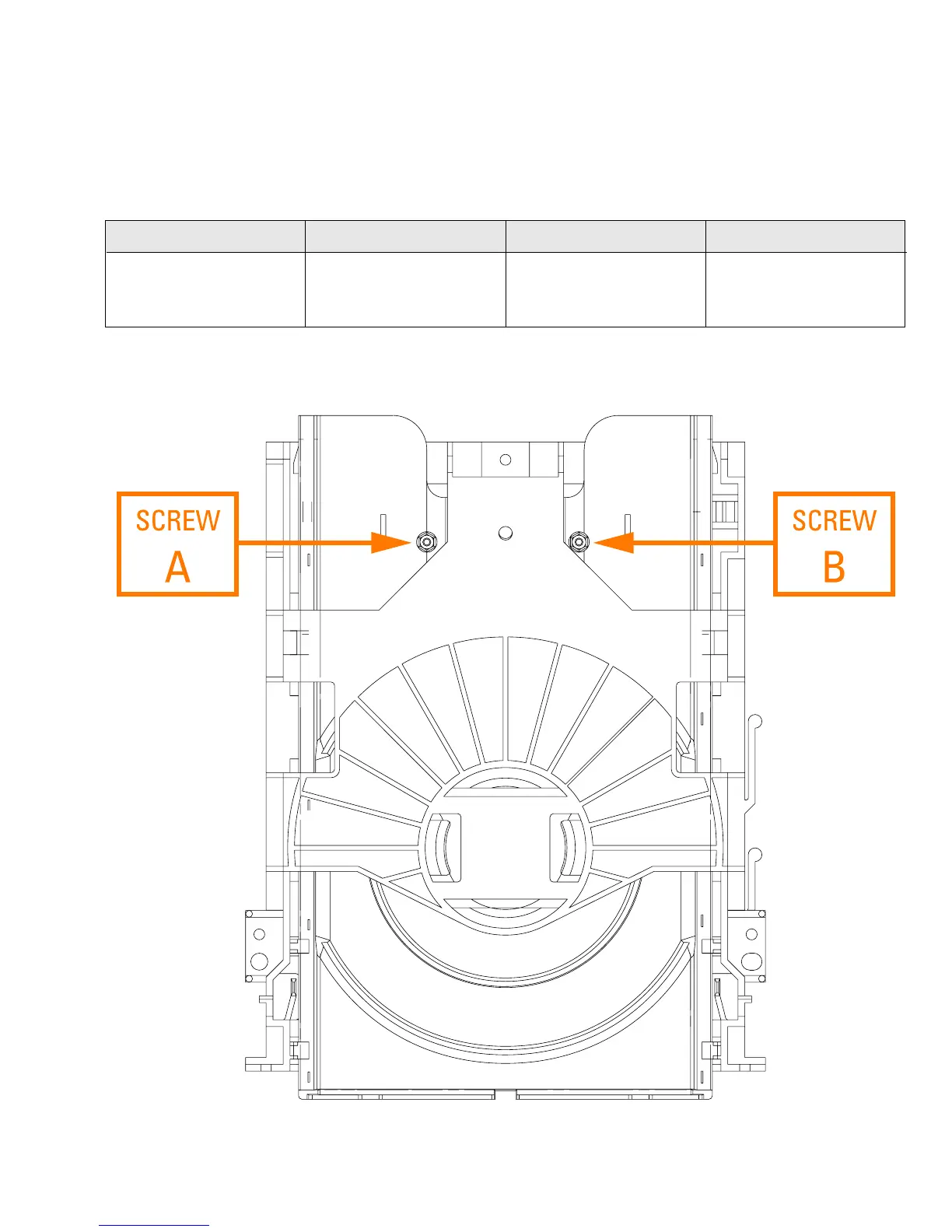

Fig. 6-6 Ass’y Deck (Top Side)
