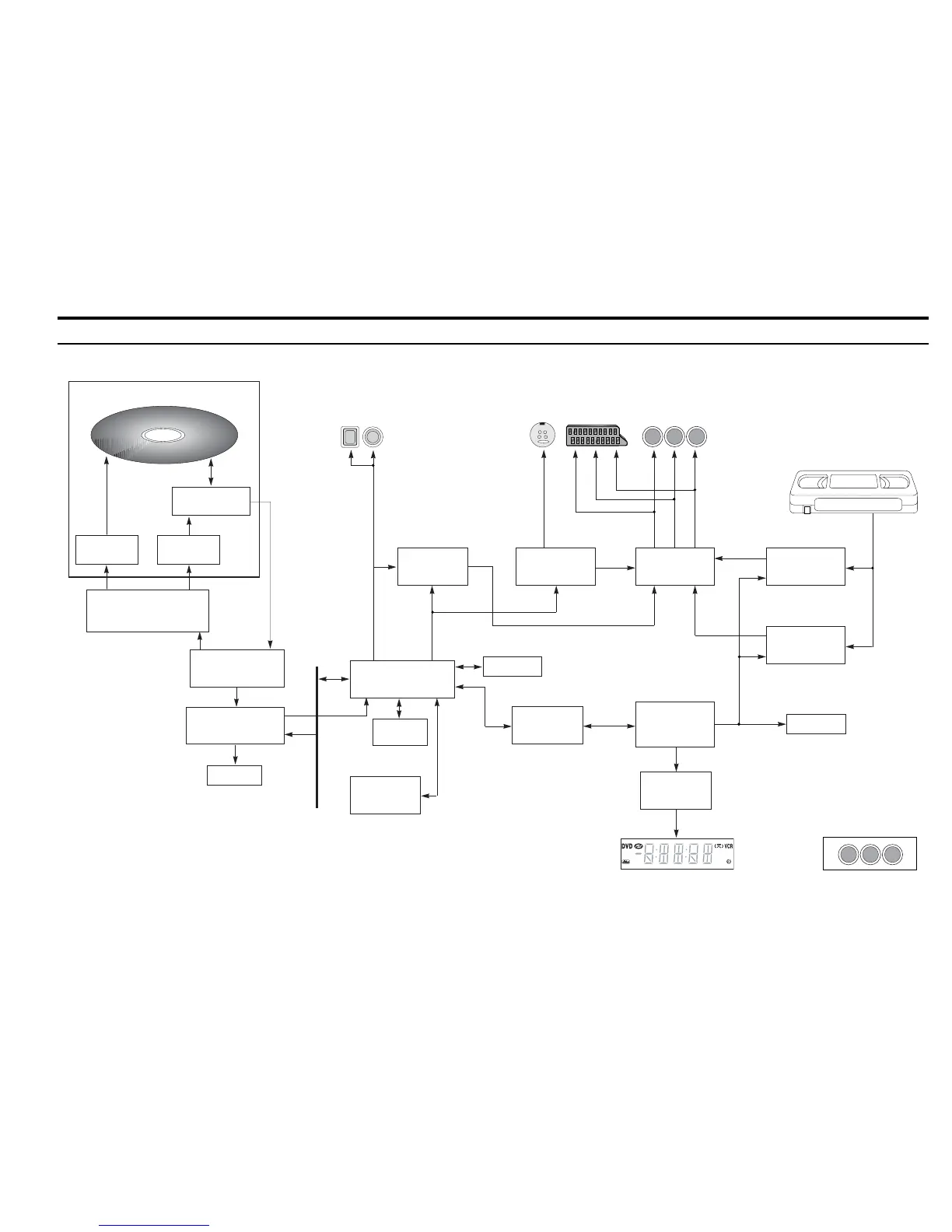

3. BLOCK DIAGRAM
3-23-1
DECK ASS'Y (DP-9)
SIC3
(FAN8728)
Motor Driver
Disk Motor
Pick-up & I/V Amp
Feed Motor
SIC2 4M EDO RAM
ZIC7 (24C02)
EPROM
Coaxial
Super
RIC1
(S5L1463)
RF Amp & DPD
ZIC1
(VADDIS5E)
A/V Decoder
AIC2
(PCM1742KE)
2CH Audio DAC
IC701
(PT6961)
LED Drive
(DT701)
VIC1
(LA73054)
Video Amp 6CH S/W
AUDIO L/R
AUDIO L/R
ZIC3
(MBM29LV800BA)
IMB Flash Memory
ZIC8
(TC74VHCT125)
Level Shifter
SIC1
(S5L1455X)
DVD & CD Processor & Digital
IC802, IC803
(BU4053)
Output Signal Switch
IC501
(LA72646)
Hi-FI Audio Processor
IC301
(LA71750EM)
Video Signal Processor
IC601
(uPD7B4928GF)
VCR Main Micom
AUDIO L
A/V Common
VIDEO AUDIO R
Front A/V Jack
Optical
ZIC2 64MB SD RAM
IC605 EEPROM
STEREO
SCART JACK
SLV-D910AZ/D910B/D910E/D910N/D910R/
D950B/D950E/D950GI
