Sony SLV-D910AZ - Housing Assy Removal

2-24
2-6-3 Housing Ass’y Removal
1) Remove Belt 1.
2) Push the Hook 2 in the direction arrow “A” and lift up Pulley Gear 3.
3) Push the Slider Housing 5 in the direction arrow “B” and lift up the Gear Tray 4.
4) Lift up the Slider Housing 5.
5) Remove 2 Screws 6 and lift down the Motor Load Assy 7.
6) Remove Clamper Ass’y 8.

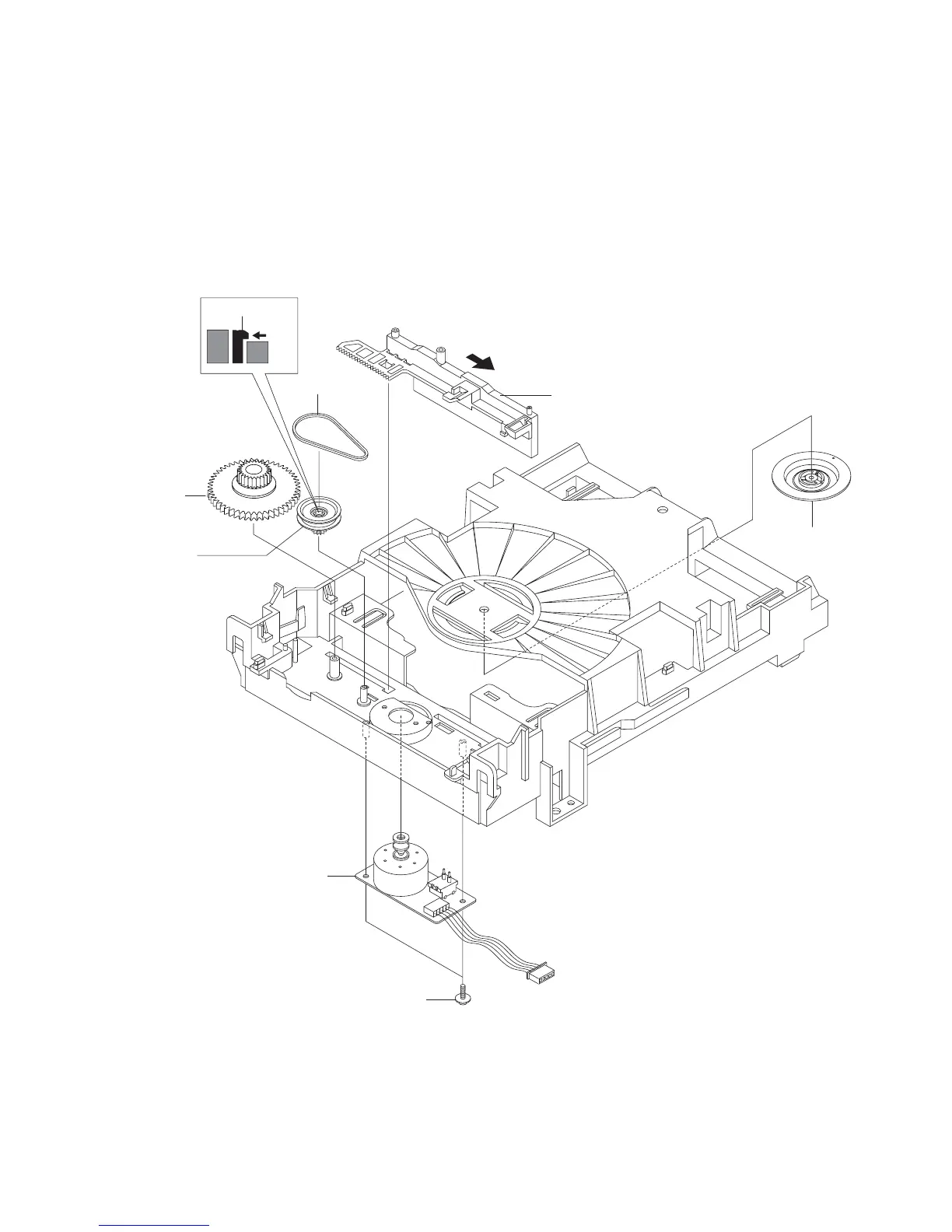

Fig. 2-46 Housing Ass’y Removal
1 BELT
3 PULLEY GEAR
4 GEAR TRAY
7 MOTOR LOAD ASSY
6 2 SCREWS
5 SLIDER HOUSING
8 CLAMPER ASSY
"B"
2 HOOK
"A"
