2-6-2 Assy P/U Deck Removal
1) Disconnect DCN2 1, DCN3 2.
2) Lift down the Assy P/U Deck 3 while simultaneously pushing 2 Hooks 4, 5 in the direction of arrow “A”, “B”.

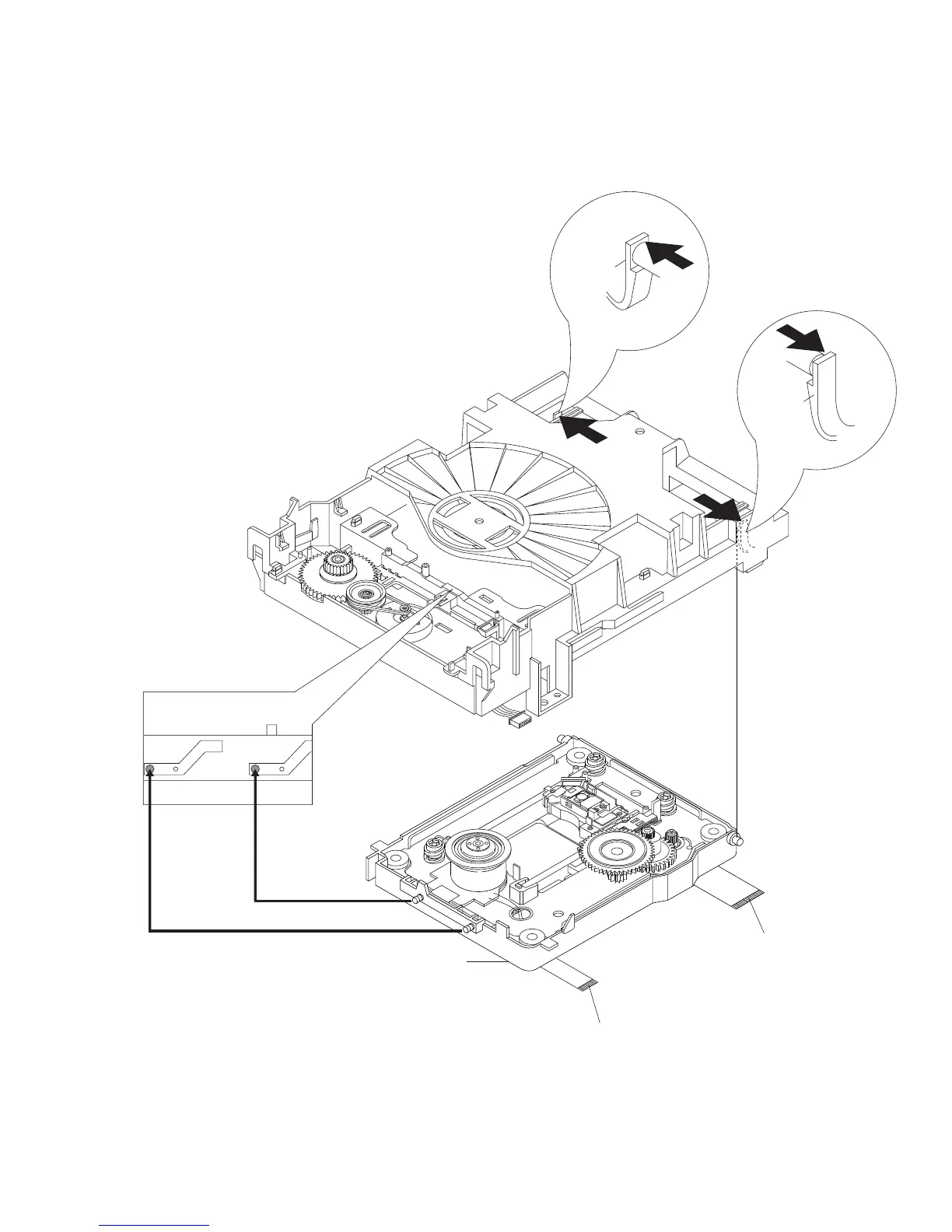

Fig. 2-45 Assy P/U Deck Removal
1 DCN2
2 DCN3
3 ASSY- P/U DECK
<Assembly Point>
SLIDER HOUSING
"B"
"A"
5 HOOK
4 HOOK
