Sony SLV-D910AZ - Gear Worm Wheel Removal; Cable Flat Removal

2-9
3 CONNECTOR WAFER
2 CONNECTOR WAFER
1 CABLE FLAT
1 GEAR WORM WHEEL
2-4-5 Gear Worm Wheel Removal
1) Remove the Gear Worm wheel 1.

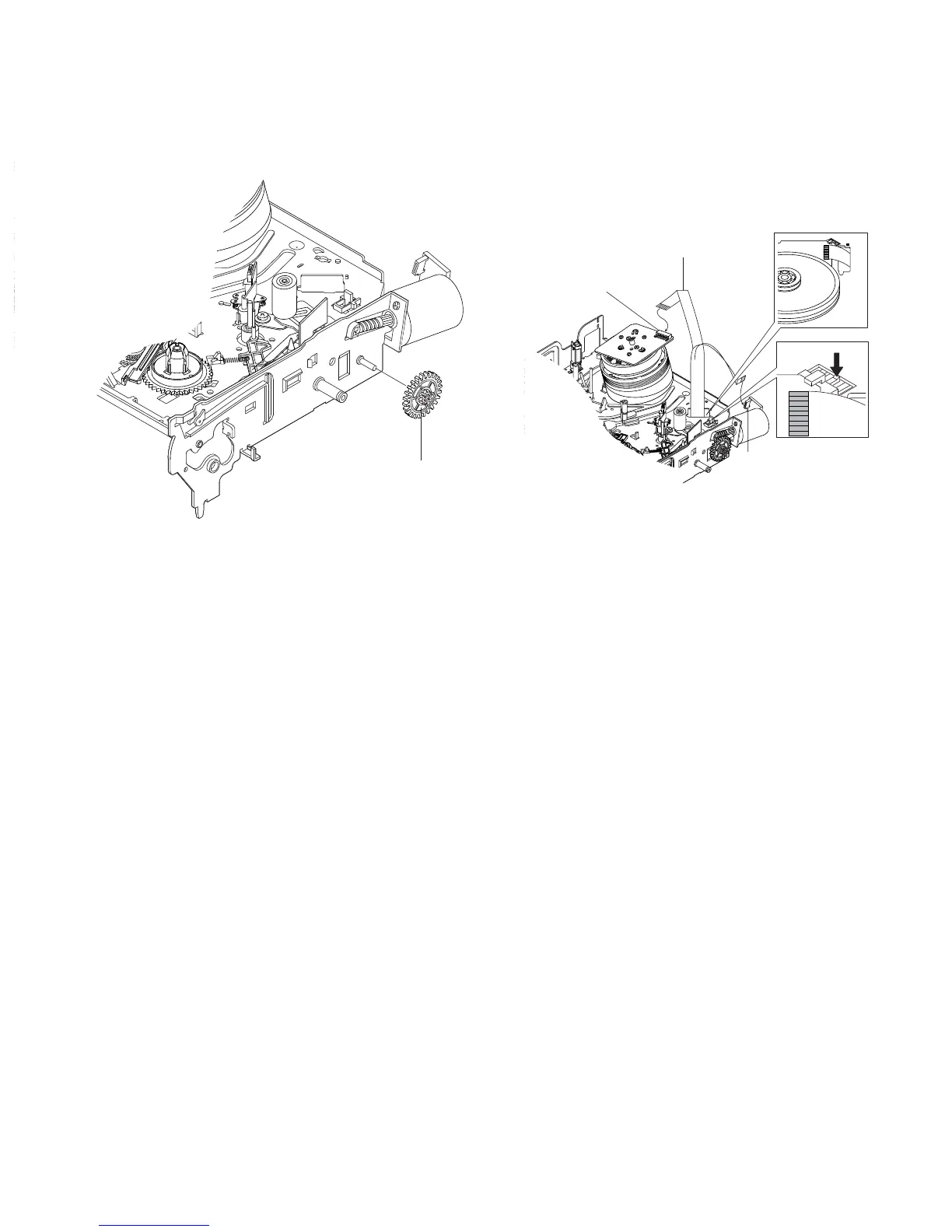

Fig. 2-16 Gear Worm Wheel Removal
2-4-6 Cable Flat Removal
1) Remove the Drum connecting part of Cable Flat 1 from Connector
Waffer 2.
2) Remove the Loading Motor connecting part of Cable Flat 1 from
Connector Waffer 3.
Fig. 2-17 Cable Flat Removal
