Sony SLV-ED1PL - SECTION 2 DISASSEMBLY; 2-1. UPPER CASE REMOVAL

2-1
Note: Follow the disassembly procedure in the numerical order given.

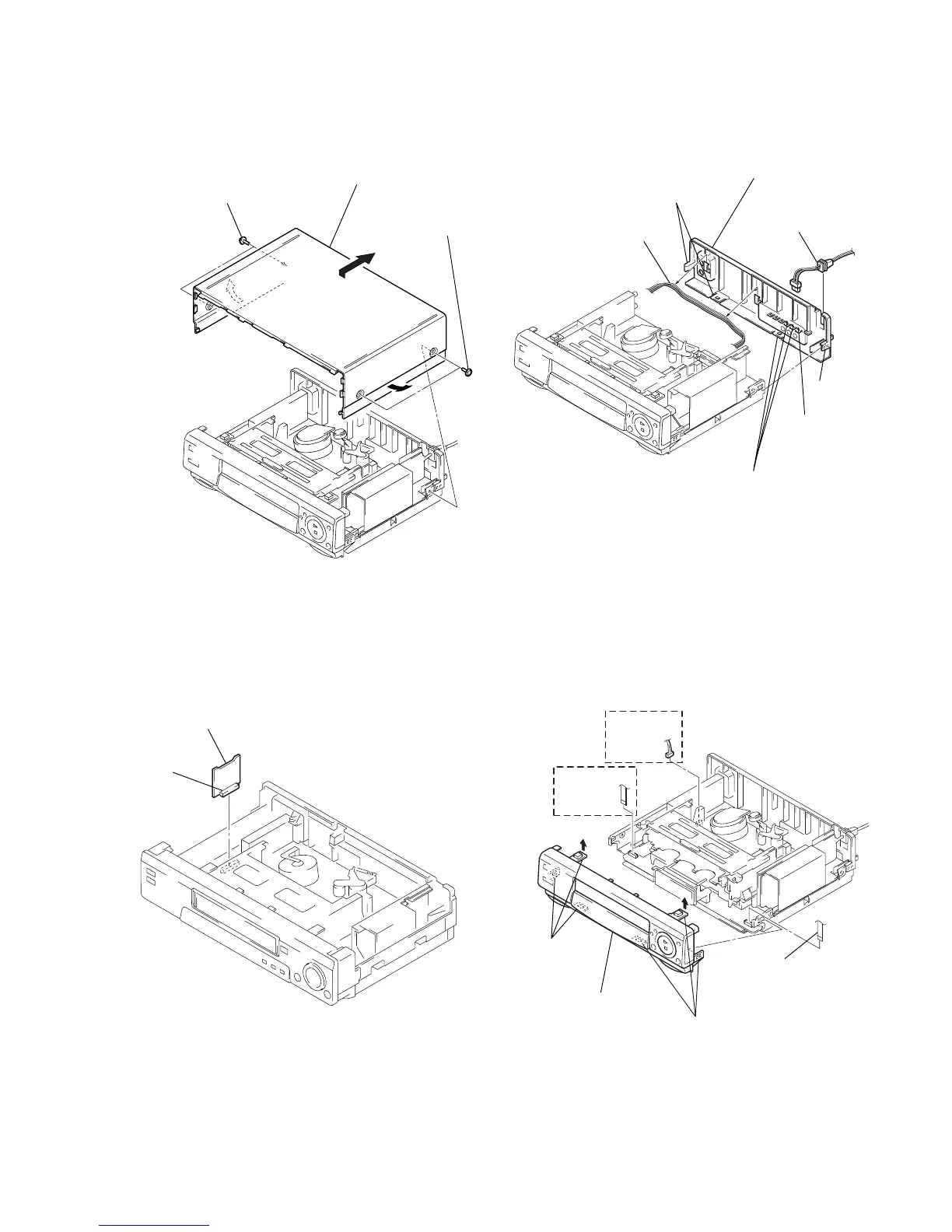

2-1. UPPER CASE REMOVAL 2-3. REAR PANEL REMOVAL
2-2. NK-11 BOARD REMOVAL
2-4. FRONT PANEL SECTION REMOVAL
SECTION 2
DISASSEMBLY
SLV-ED1/ED4/ED7/ED8
1 Two tapping screws
2 Two tapping screws
3 Upper case
2 NK-11 board
(ED7)
1 Connector
(CN751)
2 Harness
6 Two claws
5 Three claws
4 Claw
3 Claw
(ED4/ED7/ED8)
7 Rear panel
1 Power cord
2 Flat cable
(CN105)
1 Flat cable
(CN424)
ED4/ED7/ED8
4 Three claws
5 Three claws
6 Front panel section
ED7/ED8
3 Connector
(CN423)
