Sony SLV-ED1PL - MA-323 (SERVO CONTROL) SCHEMATIC DIAGRAM

SLV-ED1/ED4/ED7/ED8
4-17 4-18

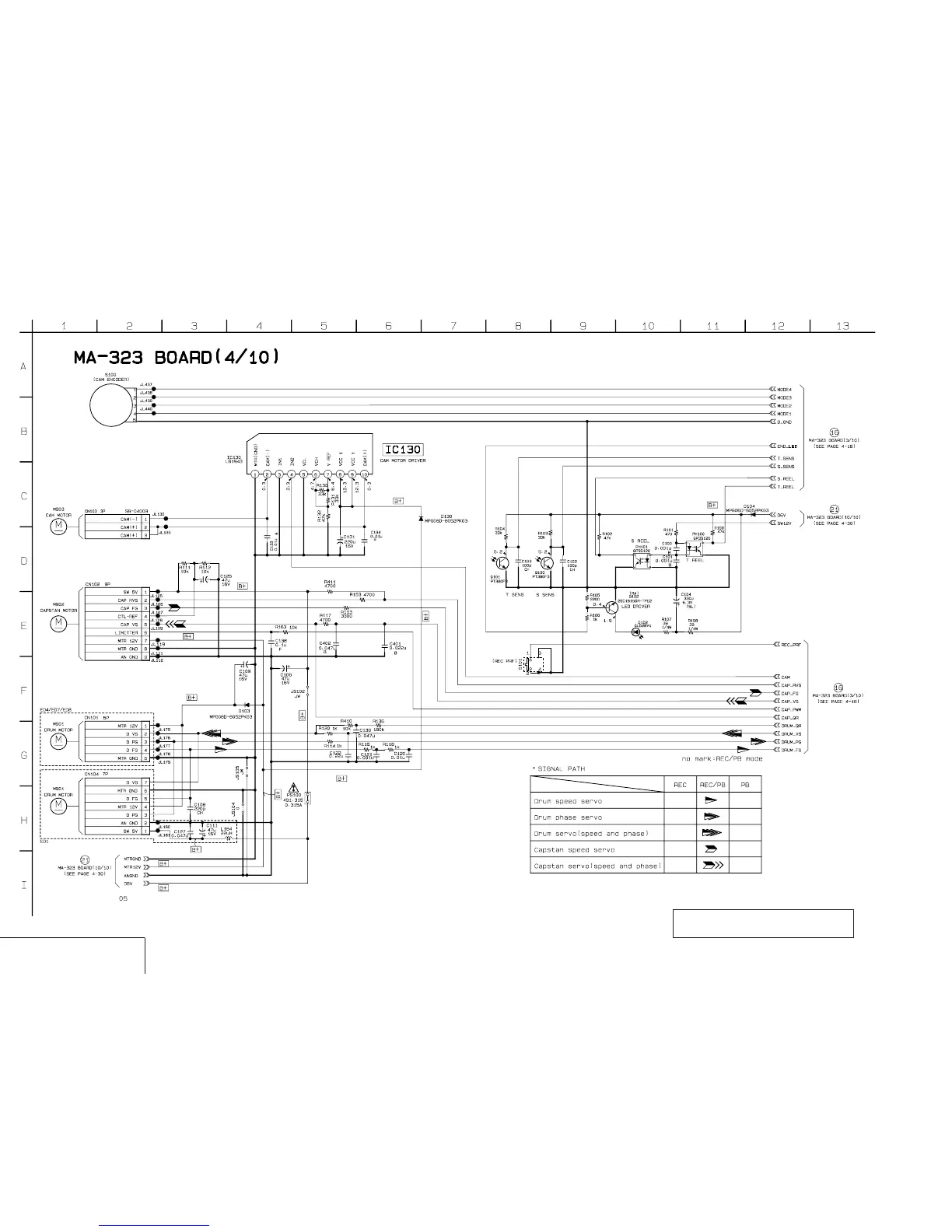

MA-323 (SERVO CONTROL) SCHEMATIC DIAGRAM • See page 4-9 to 4-10 for printed wiring board.
– Ref. No.: MA-323 board; 2,000 series –
SERVO CONTROL
MA-323 (4/10)
Note:The components identified by mark ! or dotted line
with mark ! are critical for safety.
Replace only with part number specified.
