Sony SLV-ED1PL - MA-323 (FL DRIVER) SCHEMATIC DIAGRAM

135 pages

Save Page as PDF

To Next Page

To Previous Page

SLV-ED1/ED4/ED7/ED8

4-27 4-28

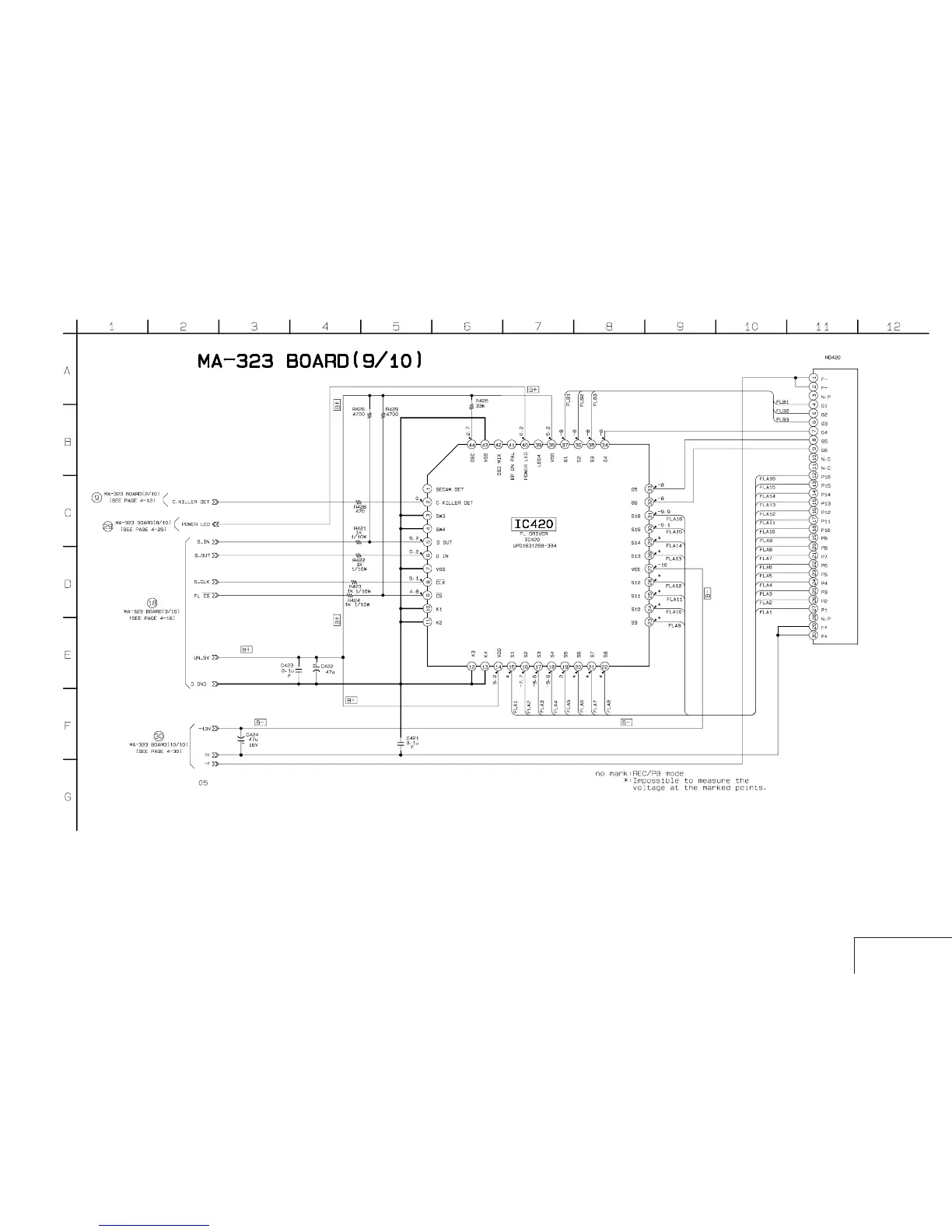

MA-323 (FL DRIVER) SCHEMATIC DIAGRAM • See page 4-9 to 4-10 for printed wiring board.

– Ref. No.: MA-323 board; 2,000 series –

FL DRIVER

MA-323 (9/10)
