Sony SLV-ED1PL - 8-1-3. FRONT PANEL AND CABINET ASSEMBLIES (ED4;ED7;ED8); 8-1-4. CHASSIS ASSEMBLY (ED4;ED7;ED8)

8-3
Ref. No. Part No. Description RemarkRef. No. Part No. Description Remark
101 X-3948-409-1 PANEL ASSY, FRONT (ED8)
101 X-3948-415-1 PANEL ASSY, FRONT (ED7)
101 X-3948-418-1 PANEL ASSY, FRONT (ED4)
103 3-987-899-01 DOOR, CASSETTE, (P)
104 3-953-432-01 SPRING (GE), FL
105 3-943-995-01 EMBLEM (NO.5), SONY
* 106 3-977-160-01 INSULATOR
107 3-987-816-01 RING, BUTTON (ED4/ED7)
108 3-979-309-11 BUTTON (AV), CENTER (ED8)
109 3-988-327-01 RING (M), JOG (ED8)
110 4-921-277-41 SCREW (B2.6X8), TAPPING, BIND
111 1-783-569-11 CABLE, FLAT (FDM-4)
* 112 A-6791-586-A DM-76 BOARD, COMPLETE (ED8)
* 112 A-6791-588-A DM-76 BOARD, COMPLETE (ED4/ED7)
* 113 A-6791-575-A MF-312 BOARD, COMPLETE (ED4)
* 113 A-6791-589-A MF-312 BOARD, COMPLETE (ED7/ED8)
114 1-783-568-11 CABLE, FLAT (FMF-23)
115 3-710-901-11 SCREW, TAPPING
* 116 3-977-136-21 CASE, UPPER
117 1-475-616-31 COMMANDER, STANDARD
(RMT-V247B) (ED7/ED8)
118 3-709-133-11 COVER, BATTERY (for RMT-V247B) (ED7/ED8)
119 1-475-613-11 COMMANDER, STANDARD (RMT-V248) (ED4)
120 3-709-322-01 COVER, BATTERY (for RMT-V248) (ED4)
121 1-762-844-21 SWITCH, ROTARY (ED8)

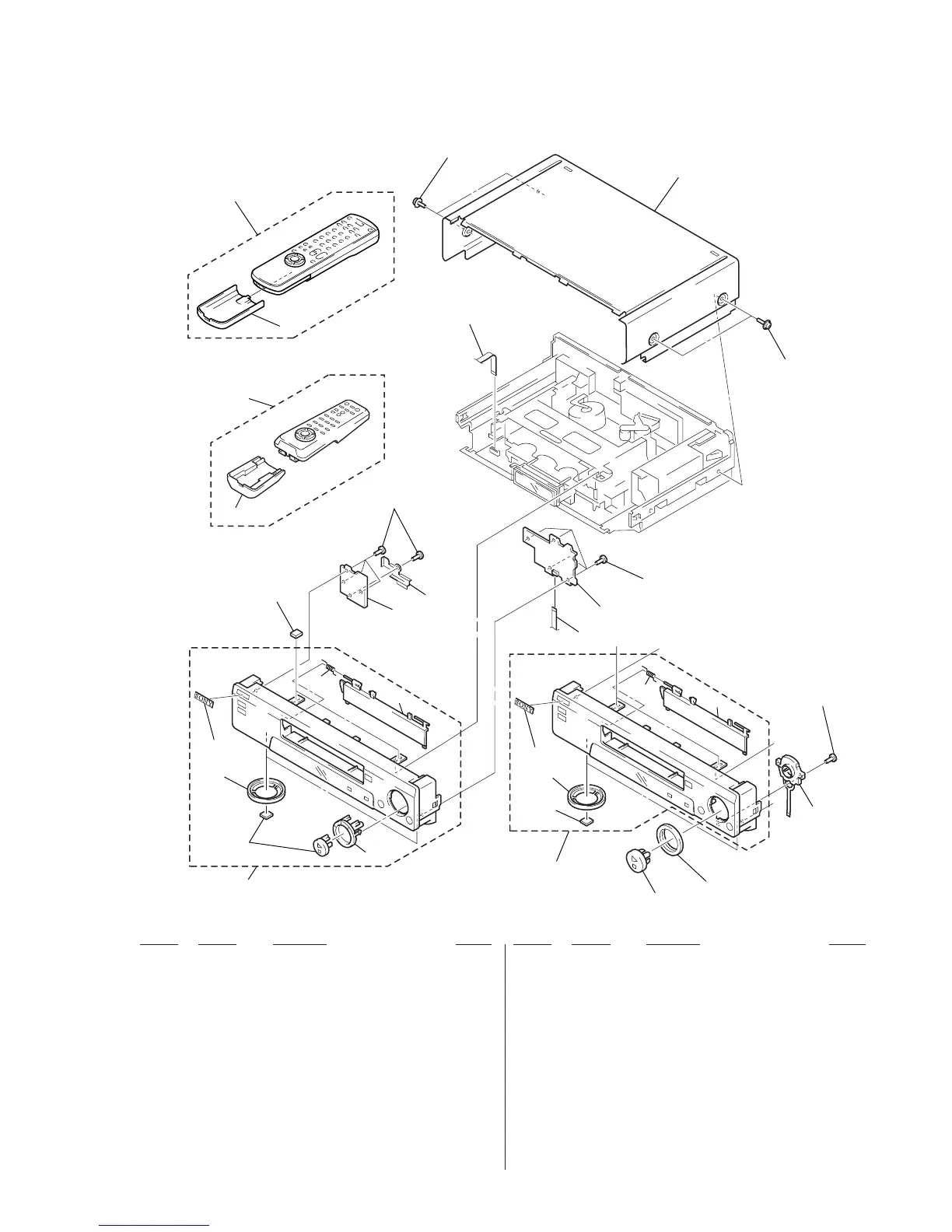

8-1-3. FRONT PANEL AND CABINET ASSEMBLIES
(ED4/ED7/ED8)
117
118
116
115
116
119
120
114
110
110
112
111
113
ED4
ED7/ED8
not
supplied
not
supplied
105
106
104
103
110
121
109
108
101
ED8
not
supplied
105
106
104
103
107
101
ED4/ED7
not
supplied
