Sony SLV-ED1PL - HS-921 SF;921 SF1 (POWER SURRLY) PRINTED WIRING BOARD

SLV-ED1/ED4/ED7/ED8
4-37 4-38

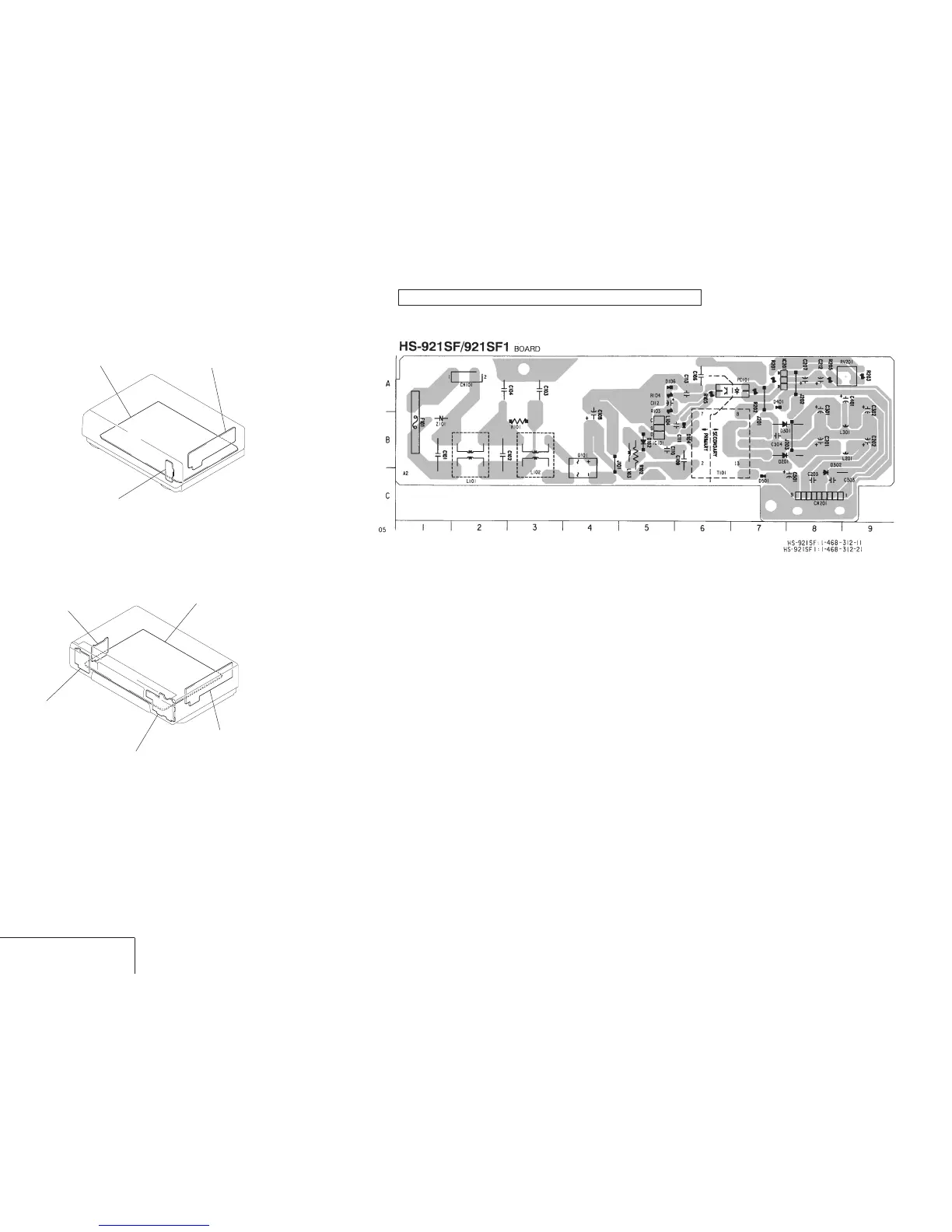

HS-921SF/921SF1 (POWER SURRLY) PRINTED WIRING BOARD
– Ref. No.: HS-921SF/921SF1 board; 3,000 series –
– SLV-ED1/ED4 –
POWER SUPPLY
HS-921SF/921SF1
MA-323
(
VIDEO, AUDIO, I/O,
SERVO/SYSTEM CONTROL, TUNER
)
DS-80
(MODE CONTROL)
POWER BLOCK (HS-921SF)
(POWER SUPPLY)
MA-323
(
VIDEO, AUDIO, I/O,
SERVO/SYSTEM CONTROL, TUNER
)
DM-76
(MODE CONTROL)
POWER BLOCK (HS-921SF1)(ED4)
POWER BLOCK (SR-708) (ED7/ED8)
(POWER SUPPLY)
NK-11 (ED7)
(KOREAN STEREO)
MF-312
(
MODE CONTROL,
)
FRONT IN
There are few cases that the part isn't mounted in this model is printed on this diagram.
HS-921SF/921SF1
BOARD
CN101 A-2
CN201 C-8
D101 B-4
D102 B-5
D104 B-6
D106 A-5
D201 B-7
D301 B-7
D302 C-8
D401 A-7
D501 C-7
IC101 B-5
IC201 A-7
