8-1
NOTE:
• -XX and -X mean standardized parts, so they may
have some difference from the original one.
• Items marked “*” are not stocked since they are
seldom required for routine service. Some delay
should be anticipated when ordering these items.
• The mechanical parts with no reference number in
the exploded views are not supplied.
• Hardware (# mark) list and accessories and pack-
ing materials are given in the last of the electrical
parts list.
SECTION 8
REPAIR PARTS LIST
8-1. EXPLODED VIEWS
SLV-ED1/ED4/ED7/ED8
The components identified by mark
! or dotted line with mark ! are criti-
cal for safety.
Replace only with part number speci-
fied.
Ref. No. Part No. Description RemarkRef. No. Part No. Description Remark

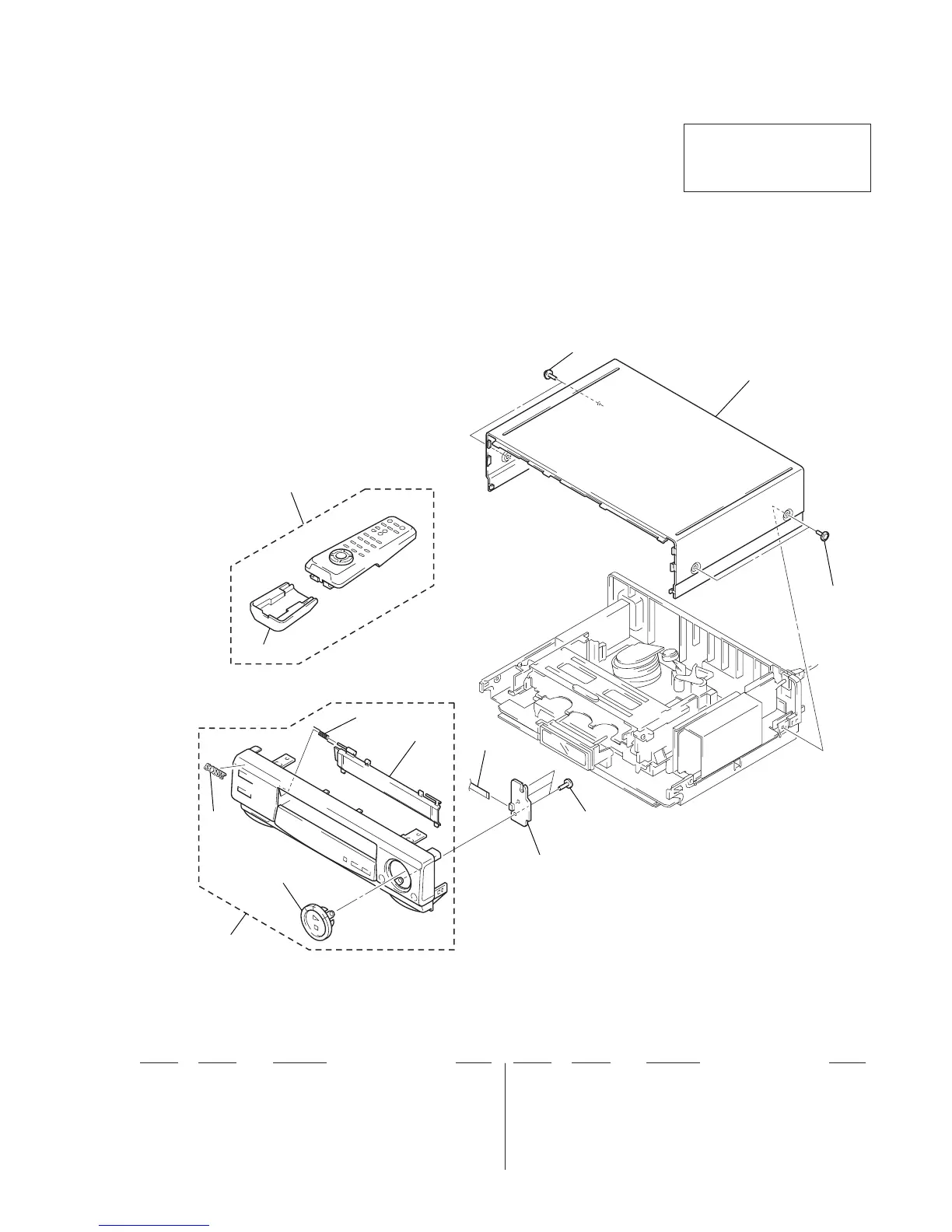

8-1-1. FRONT PANEL AND CABINET ASSEMBLIES
(ED1)
1 X-3948-470-1 PANEL ASSY, FRONT
2 3-953-432-01 SPRING (GE), FL
3 3-979-467-11 DOOR, CASSETTE
4 3-943-995-01 EMBLEM (NO.5), SONY
5 X-3946-598-1 BUTTON ASSY, FUNCTION
* 6 A-6794-527-A DS-80 MOUNT
7 4-921-277-41 SCREW (B2.6X8), TAPPING, BIND
* 8 3-988-080-51 CASE, UPPER
9 3-710-901-11 SCREW, TAPPING
10 1-783-567-11 CABLE, FLAT (FDS-4)
11 1-475-613-11 COMMANDER, STANDARD (RMT-V248)
12 3-709-322-01 COVER, BATTERY (for RMT-V248)
To Next Page
