Sony SLV-ED1PL - Power Block Removal; Mechanism Deck Removal; Board Removal

2-2

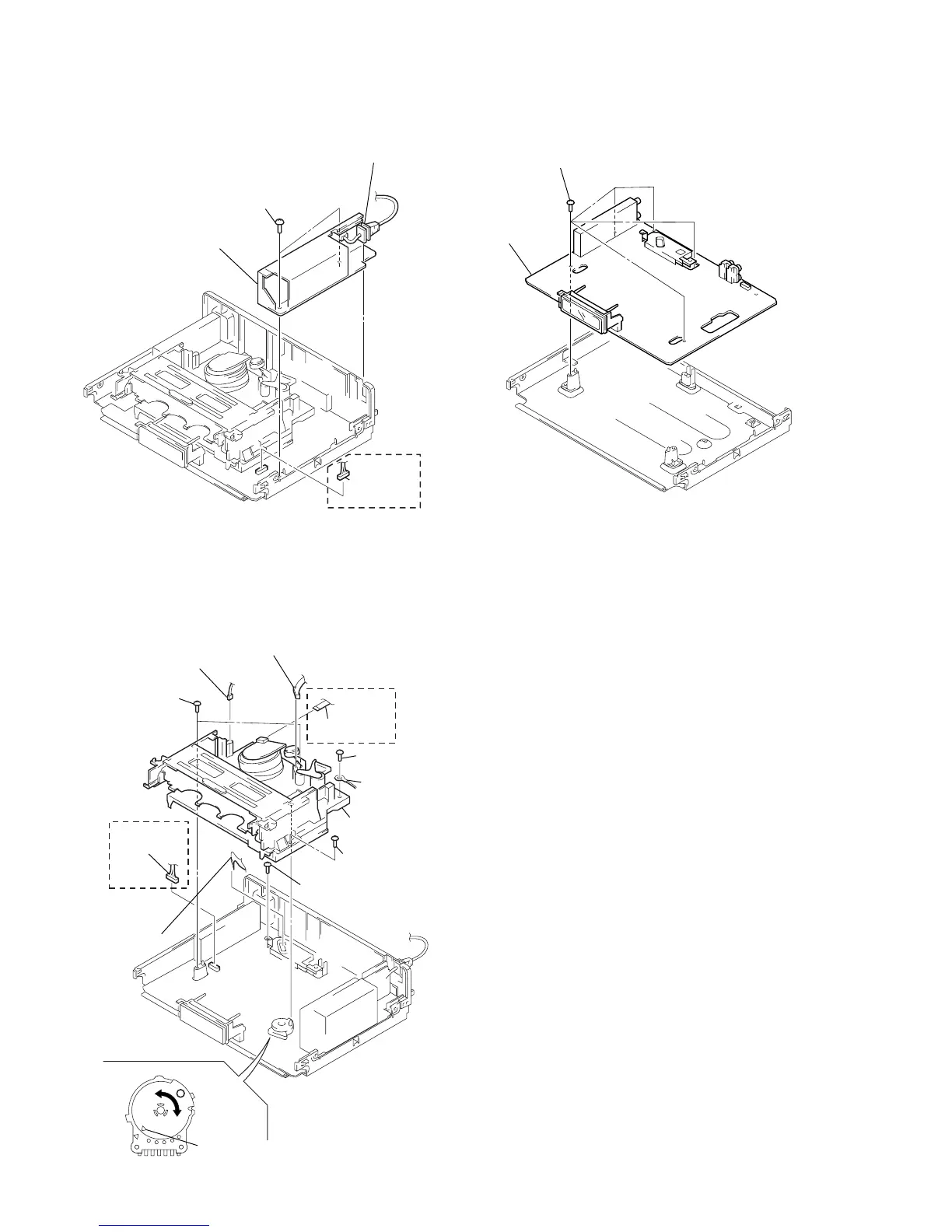

2-5. POWER BLOCK REMOVAL 2-7. MA-323 BOARD REMOVAL
2-6. MECHANISM DECK REMOVAL
4 Power block
1 Connector
(CN600)
3 Two screws
(B3)
ED4/ED7/ED8
2 Power cord
(CN101)
3
1 Flat cable
4 Connector
(ACE head )
!¡ Mechanism
deck
5 Connector
(FE head )
2 Connector
(CN101 )
ED1
9 Two screws
(BVTP3 × 12)
!º Screw
(BVTP3 × 12)
8 Screw
(B3)
3 Flexible board
ED4/ED7/
ED8
Note: When mounting the mechanism deck,
first align ¢ mark on the rotary switch.
6 Screw
(B3)
7 Earth lug
1 Five screws
(B3)
2 MA-323
board
