Sony SLV-ED1PL - 1. DISASSEMBLY

– 4 –
SERVICE NOTE
1. DISASSEMBLY

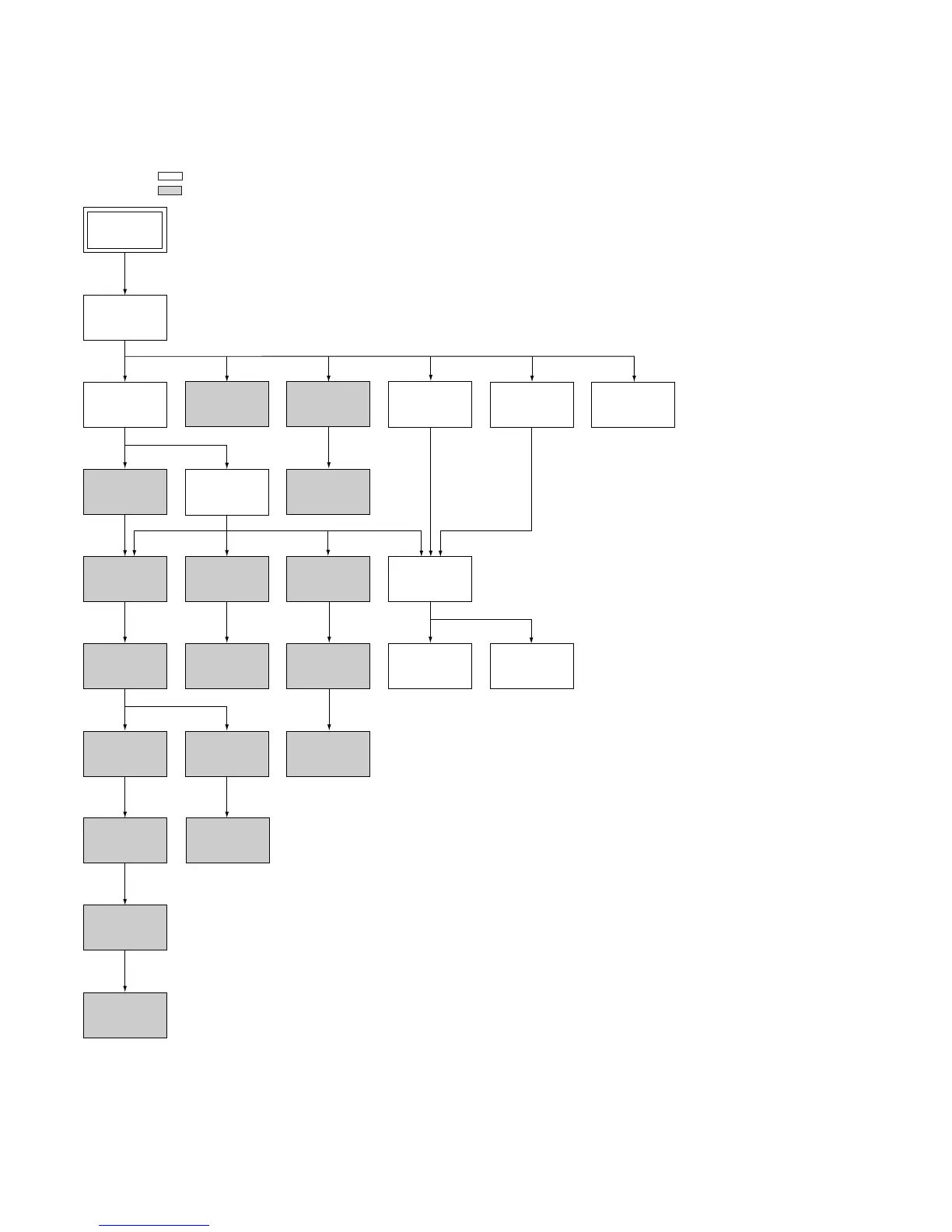

• This set can be disassembled in the order shown below.
Note: Pages in indicated pages in the SERVICE MANUAL.
Pages in indicated pages in the VHS MECHANICAL ADJUSTMENT MANUAL VI.
NK-11Board
(ED7)
(Page 2-1)
Set
Upper case
(Page 2-1)
Front Panel
Section
(Page 2-1)
Power
Block
(Page 2-2)
Pinch Press
Block Ass’y
(Page 14)
Ground Shaft
Ass’y
(Page 13)
Mechanism
Deck
(Page 2-2)
FL Complete
Ass’y
(Page 13)
Drum
Ass’y
(Page 13)
Rear
Panel
(Page 2-1)
Rubber
Belt
(Page 15)
Rubber
Belt
(Page 15)
Slider
(Page 26)
Loading
Gear (T, S)
(Page 28)
Retainer
Plate
(Page 22)
MA-323
Board
(Page 2-2)
Rubber
Belt
(Page 15)
Capstan
Motor
(Page 15)
FL Slider
Block Ass’y
(Page 22)
Rotary
Switch
(Page 2-2)
Tuner
Unit
Pully Gear
Ass’y
(Page 29)
Cam Motor
Retainer
(Page 31)
Cam Gear
(Page 23)
Cam Motor
(Page 31)
Reel Direct
Ass’y
(Page 30)
