Sony SLV-ED1PL - 8-1-6. MECHANISM CHASSIS ASSEMBLY (2)

8-6
Ref. No. Part No. Description RemarkRef. No. Part No. Description Remark
751 X-3947-581-1 BRAKE ASSY, MAIN (T)
752 3-977-462-01 SPRING, EXTENTION. (MAIN BRAKE)
753 X-3947-573-1 ARM ASSY, PENDULUM
754 X-3947-580-2 BRAKE ASSY, MAIN (S)
755 3-977-513-02 LEVER, REC. PROOF
756 3-976-767-01 SPRING, TENS. (REC. PROOF)
757 3-977-487-01 BOSS, TG1 FULCRUM
758 X-3947-587-1 TG1 ASSY
759 X-3947-589-1 BAND ASSY, TG1
760 3-977-488-01 SPRING (POWER TENSION)
761 A-6750-324-A SHUTTLE (S) BLOCK ASSY
762 X-3944-378-1 ROLLER ASSY, GUIDE
763 3-965-178-01 SPRING
764 3-969-632-04 BASE, DRUM
765 A-6750-328-E SHUTTLE (T) BLOCK ASSY
766 3-977-501-01 PLATE, LUMINOUS
767 X-3943-899-8 GROUND ASSY, SHAFT (ED4/ED7/ED8)
768 1-759-455-11 DRUM ASSY, DZH-71D-R (ED1)
768 8-839-044-02 DRUM ASSY, DZH-94A/ZRP-R (ED7/ED8)
768 8-839-036-04 DRUM ASSY, DZH-93D/Z-RP (ED4)
771 A-6746-074-G ROLLER BLOCK ASSY, HC
772 X-3947-255-1 ROLLER ASSY, HC
773 3-975-724-07 ARM, HC

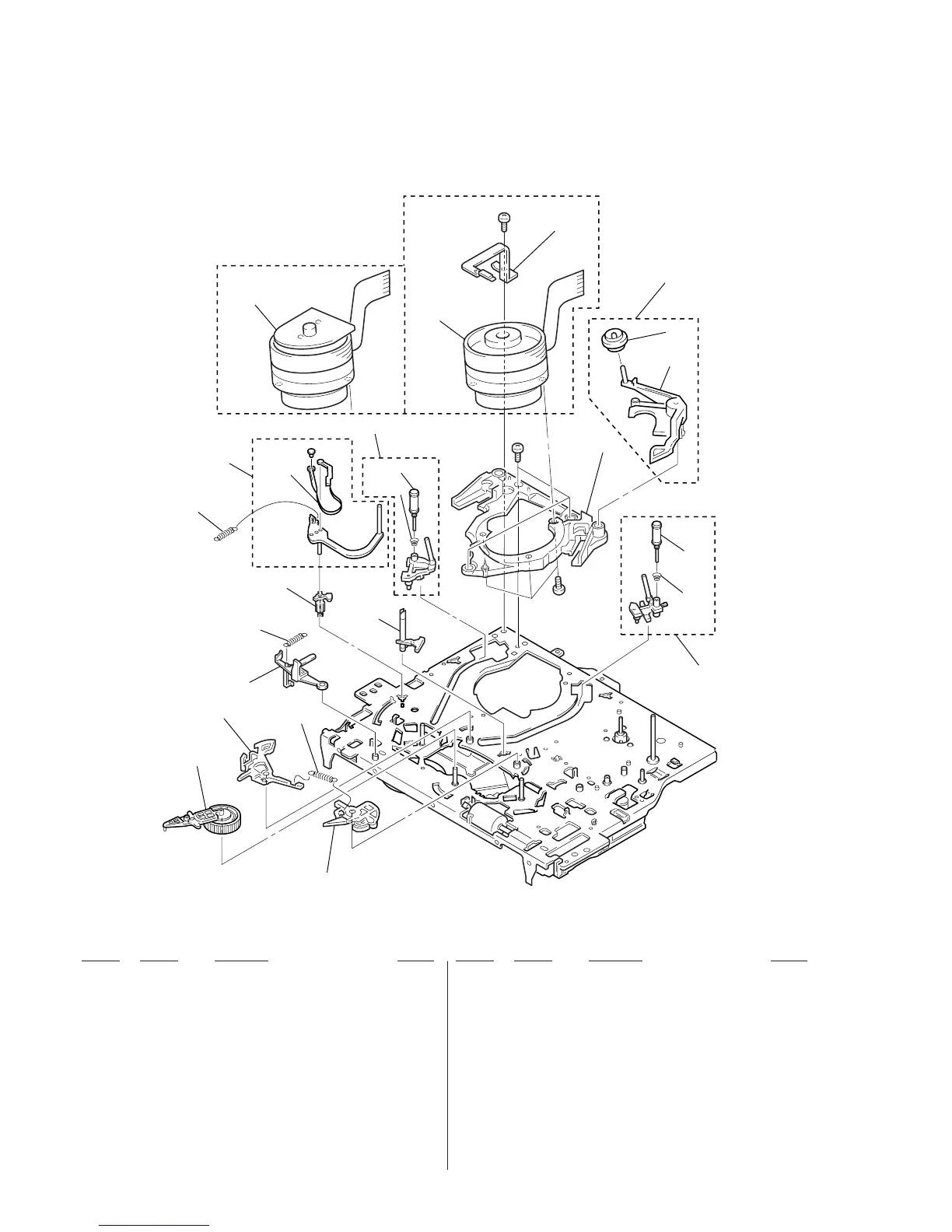

8-1-6. MECHANISM CHASSIS ASSEMBLY (2)
ED1
ED4/ED7/ED8
#3
#4
#2
768
768
767
771
772
773
764
762
763
765
751
753
754
752
755
756
757
766
762
763
761
759
758
760
