SLV-ED1/ED4/ED7/ED8
4-41 4-42

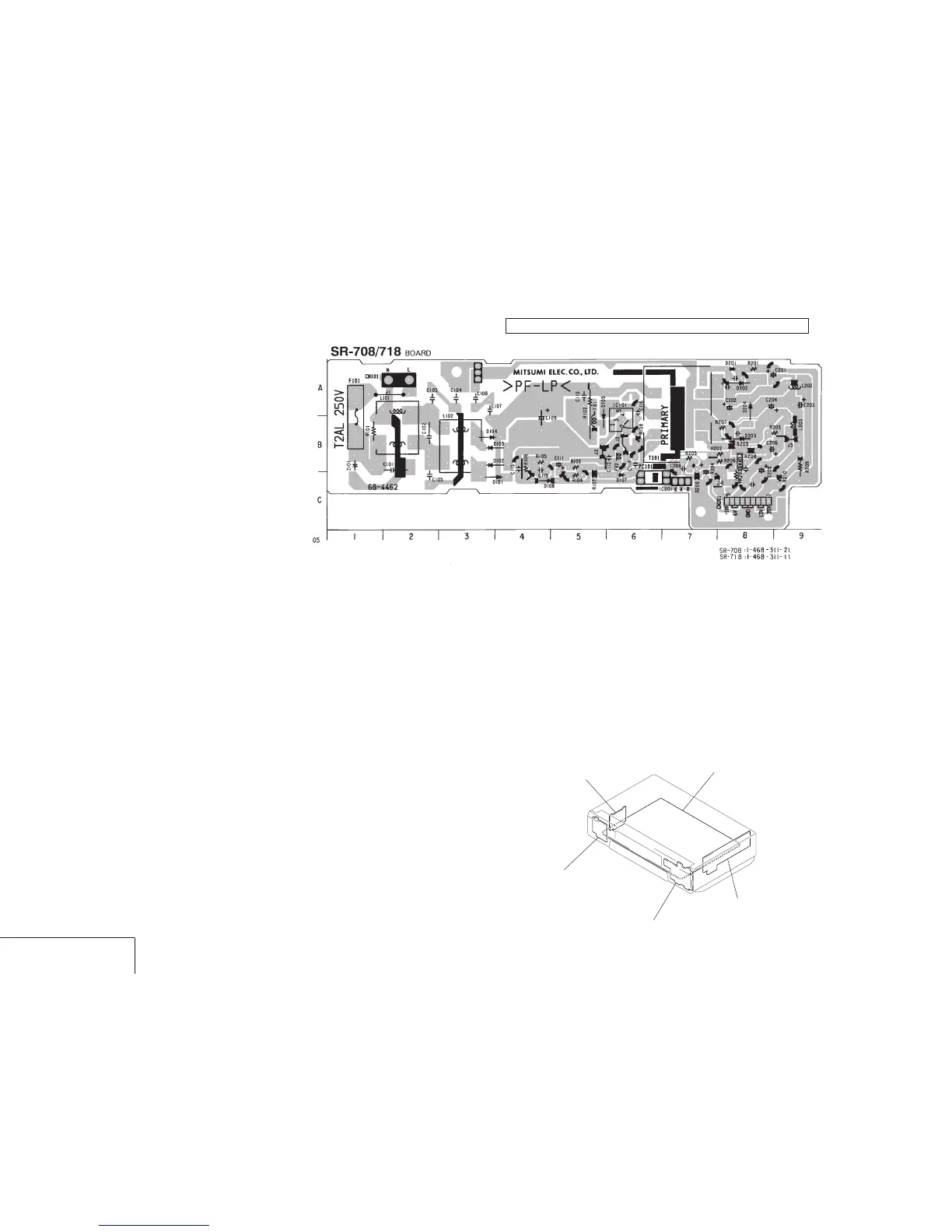

SR-708 (POWER SUPPLY) PRINTED WIRING BOARD
– Ref. No.: SR-708 board; 4,000 series –
– SLV-ED7/ED8 –
POWER SUPPLY
SR-708
There are few cases that the part isn't mounted in this model is printed on this diagram.
MA-323
(
VIDEO, AUDIO, I/O,
SERVO/SYSTEM CONTROL, TUNER
)
DM-76
(MODE CONTROL)
POWER BLOCK (HS-921SF1)(ED4)
POWER BLOCK (SR-708) (ED7/ED8)
(POWER SUPPLY)
NK-11 (ED7)
(KOREAN STEREO)
MF-312
(
MODE CONTROL,
)
FRONT IN
SR-708 BOARD
CN101 A-2
CN201 C-8
D101 C-3
D102 B-3
D103 B-3
D104 B-3
D105 B-5
D107 C-6
D108 C-4
D201 A-8
D202 A-8
D203 B-8
D204 A-8
D205 B-8
IC101 B-6
IC201 C-7
