17
Installation
1

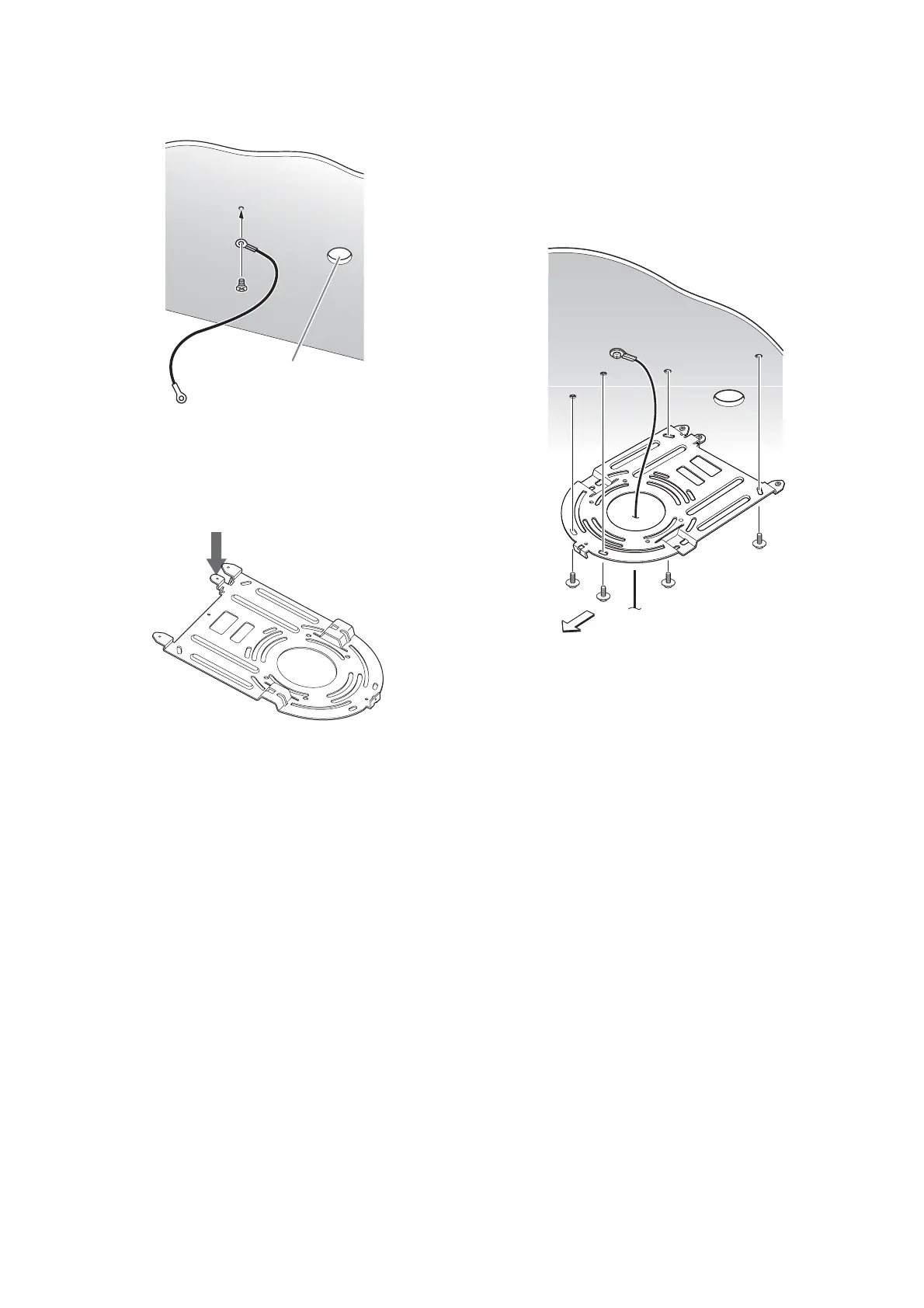

Attach the wire rope to the ceiling.
1-2
In the case that a wire cannot be attached on the
ceiling, attach the wire on the ceiling bracket (B) as
illustrated below with the supplied screws
(M 3 × 8).
2
Attach the ceiling bracket (B) to the ceiling.
When attaching the ceiling bracket (B) to the ceiling,
it is recommended to fix at the 4 positions illustrated
below.
There are elongated holes for the screws along the
rounded edges of the ceiling bracket (B). Later, the
front of the camera will be positioned along this edge.
Face the camera to the front, adjust the aim, and
attach it securely.
Ceiling
Hole for connecting cable
Front of the camera
Ceiling
bracket (B)
Ceiling
To Next Page
