STR-DA5500ES
6
D-AUDIO BOARD SERVICE POSITION

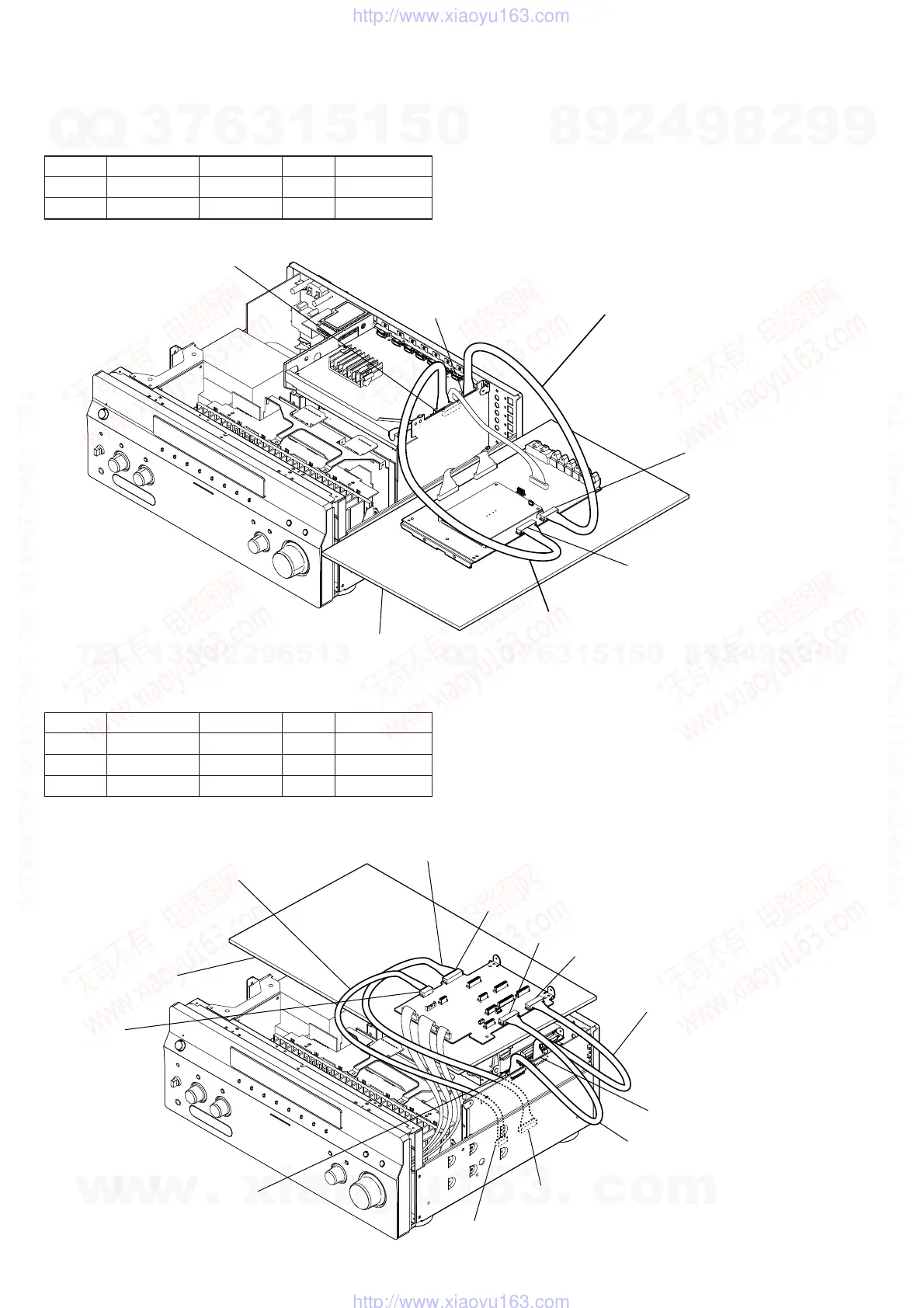

• Please connect following extension jig.
CONTROL BOARD SERVICE POSITION
• Please connect following extension jig.
Jig No. Part No. Pitch (mm) Cores Length (mm)
3
J-2501-259-A 1.25 18 300
4
J-2501-260-A 1.25 20 300
Jig No. Part No. Pitch (mm) Cores Length (mm)
5
J-2501-255-A 1.25 10 300
6
J-2501-259-A 1.25 18 300
7
J-2501-260-A 1.25 20 300
Connect jig extension 3
to the D-AUDIO board (CN2202)
and CONTROL board (CN2506).
CONTROL board
(CN2506)
D-AUDIO board
(CN2205)
Connect extension jig 4
to the D-AUDIO board (CN2205)
and CONTROL board (CN2501).
insulating sheet
D-AUDIO board
(CN2202)
CONTROL board
(CN2501)
Connect extension jig 7
to the CONTROL board (CN2513)
and MAIN board (CN1005).
Connect extension jig 5
to the CONTROL board (CN2515)
and MAIN board (CN1006).
Connect extension jig 6
to the CONTROL board (CN2506)
and D CONNECT board (CN2404).
CONTROL board
(CN2513)
Connect extension jig 7
to the CONTROL board (CN2501)
and D CONNECT board (CN2406).
insulating sheet
MAIN board
(CN1006)
MAIN board
(CN1005)
CONTROL board
(CN2501)
CONTROL board
(CN2515)
D CONNECT board
(CN2405)
D CONNECT board
(CN2406)
CONTROL board
(CN2506)
