STR-DA5500ES
7

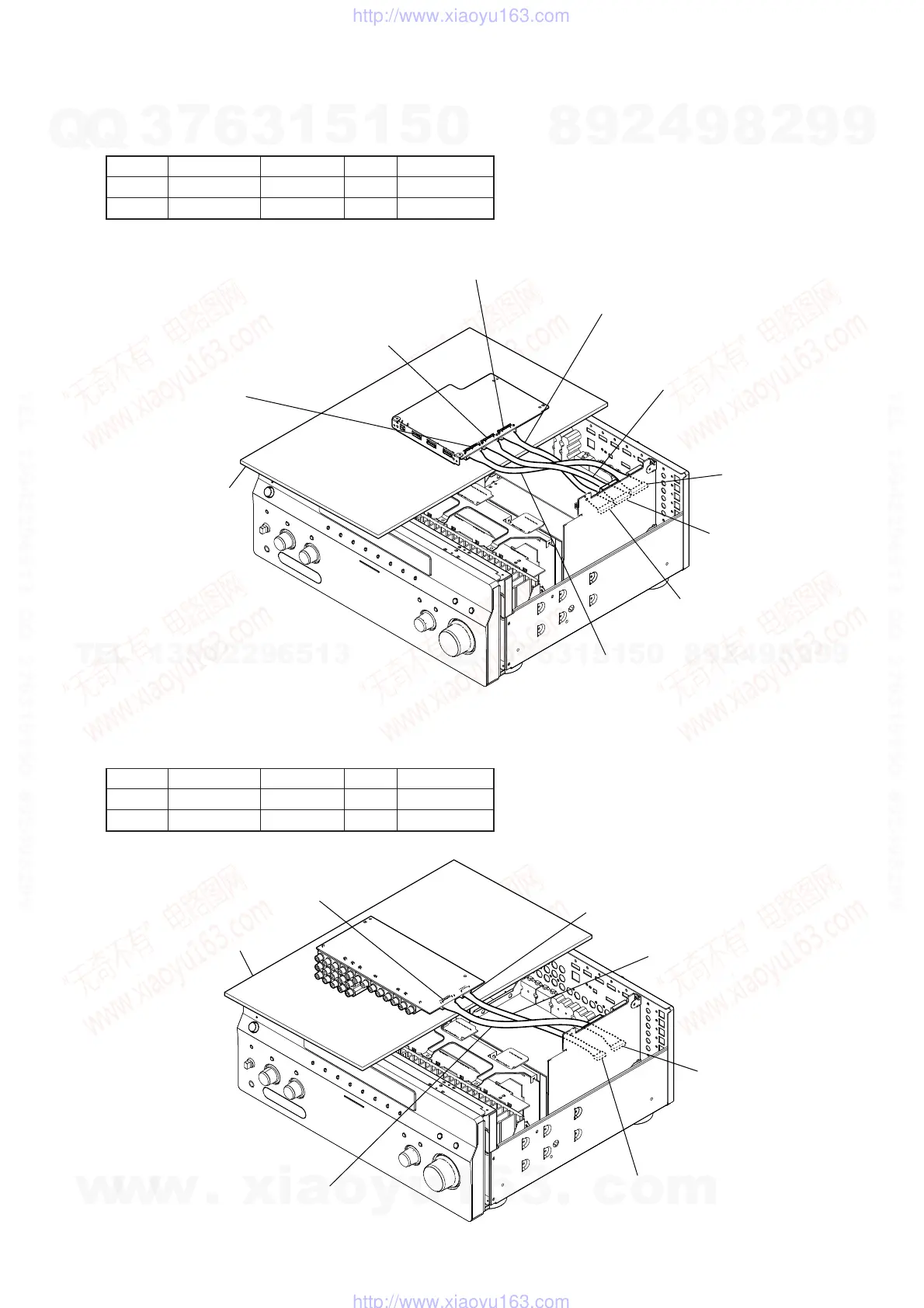

NETWORK BOARD SERVICE POSITION
• Please connect following extension jig.
A-VIDEO BOARD SERVICE POSITION
• Please connect following extension jig.
Jig No. Part No. Pitch (mm) Cores Length (mm)
8
J-2501-256-A 1.25 12 300
9
J-2501-268-A 1.25 20 300
Jig No. Part No. Pitch (mm) Cores Length (mm)
0
J-2501-255-A 1.25 10 300
qa
J-2501-256-A 1.25 12 300
Connect extension jig 9 to the
NETWORK board (CN6702) and
CONTROL board (CN2504).
CONTROL board
(CN2504)
insulating sheet
Connect extension jig 9 to the
NETWORK board (CN6703) and
CONTROL board (CN2509).
CONTROL board
(CN2509)
NETWORK board
(CN6702)
CONTROL board
(CN8002)
NETWORK board
(CN6703)
NETWORK board
(CN8002)
Connect extension jig 8 to the
NETWORK board (CN8002) and
CONTROL board (CN8002).
Connect extension jig 0 to the
A-VIDEO board (CN6002) and
CONTROL board (CN2507).
A-VIDEO board
(CN6001)
A-VIDEO board
(CN6002)
insulating sheet
Connect extension jig qa to the
A-VIDEO board (CN6001) and
CONTROL board (CN2505).
CONTROL board
(CN2507)
CONTROL board
(CN2505)
