STR-DA6400ES
18

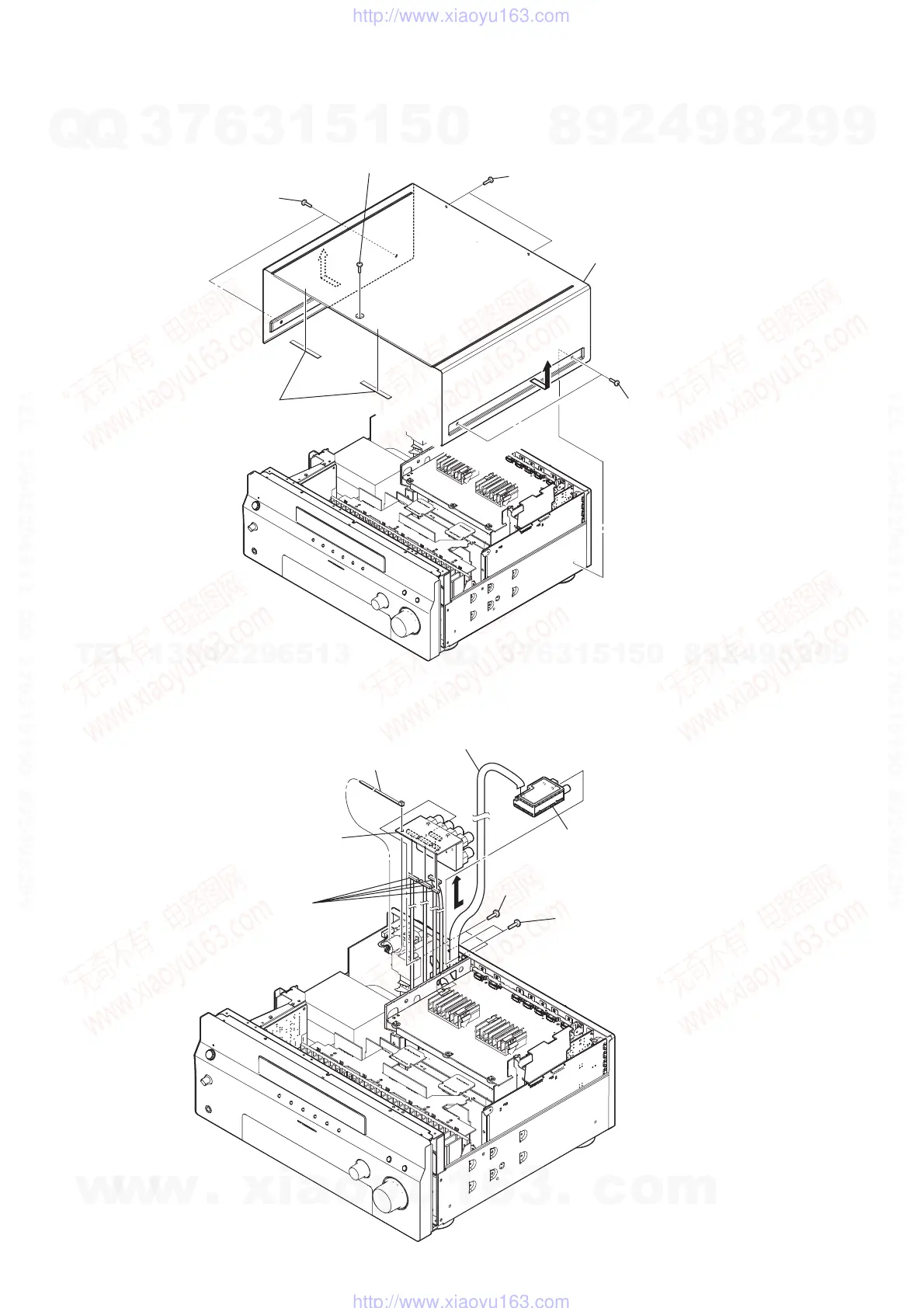

3-3. TUNER (FM/AM), SPTM BOARD
Note: Follow the disassembly procedure in the numerical order given.
3-2. CASE
flat head screw
(TP)
case
two flat head screws
(TP)
two spacers (case)
two screws
(
BVST4
×
8
)
two screws
(
BVST4
×
8
)
tuner (FM/AM)
wire (flat type) (9 core)
(tuner (FM/AM))
SPTM board
two screws (BV/ring)
four connectors
(CX4101, CX4102
CX4103, CX4104)
Cut the binding band (taiton).
