STR-DA6400ES
151 X-2176-946-1 KNOB (VOL) ASSY
152 3-350-426-01 SPRING, RING
153 X-2189-702-1 KNOB (SEL) ASSY
154 3-704-515-22 SCREW (BV/RING)
155 3-292-238-11 KNOB (SPEAKER-A64)
156 2-893-374-01 SPRING, RING
157 X-4955-616-1 BUTTON (POWER) ASSY
158 3-087-053-01 +BVTP2.6 (3CR)
159 A-1538-325-A F-HDMI BOARD, COMPLETE
160 1-835-232-11 WIRE, LEAD, CONNECTOR WITH
161 A-1538-312-A DISPLAY BOARD, COMPLETE
162 3-292-240-01 KNOB (JOG)
163 3-087-053-11 +BVTP2.6 (3CR)
164 3-701-748-00 CLAMP
S101 1-798-142-11 SWITCH, ROTARY (SPEAKERS)
S231 1-418-725-41 ENCODER, ROTARY (12 TYPE)
(MASTER VOLUME)
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
152
152
154
not supplied
supplied with
S231
155
156
157
151
153
supplied with
S101
not supplied
not supplied
(ACSW board)
not supplied
(HPboard)
not supplied
not supplied
not supplied
(VIDEO2 board)
not supplied
not supplied
(MAIN VOL board)
not supplied
not
supplied
S101
S231
#1
#1
#1
161
158
158
158
158
163
158
158
158
162
159
160
158
158
158
front panel section
not
supplied
$
$
%
%
&
&
not supplied
not supplied
(KEY1 board)
164

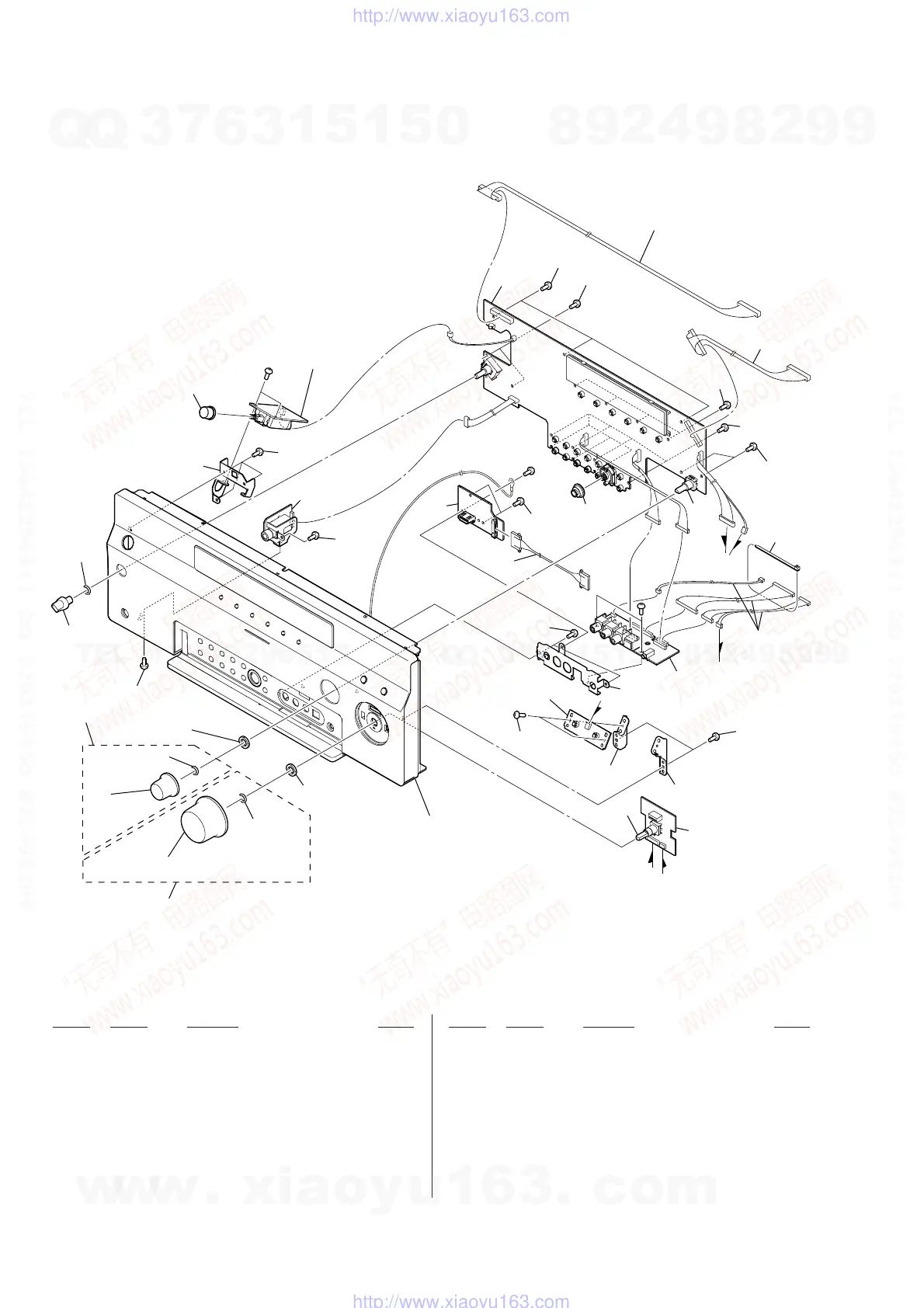

7-4. DISPLAY BOARD SECTION
