Sony STR-DA6400ES - Front Panel Section

195
STR-DA6400ES
201 3-293-842-02 LID (A64)
202 X-2189-704-1 ESCUTCHEON (LID) ASSY
203 2-668-128-32 PLATE (A2), INDICATION
204 4-942-568-41 EMBLEM (NO. 5), SONY
205 3-293-843-01 PANEL (A64), FRONT
206 X-4950-462-1 LENS ASSY, LED
207 X-2189-703-1 BASE ASSY, PANEL
208 4-240-391-01 DAMPER, OIL
209 4-246-743-01 GEAR (DAMPER)
210 3-278-912-01 BUTTON (MUSIC-AB)
211 3-087-053-01 +BVTP2.6 (3CR)
212 3-325-697-21 WASHER
213 4-246-100-23 BUTTON (DIA. 7)
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
#4 7-621-775-20 SCREW +B 2.6X5
#5 7-685-853-04 SCREW +BVTT 2X6 (S)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
205
206
207
208
209
210
211
211
212
213
not supplied
#1
#1
#5
#1
#4
#4
#4
201
203
204
202
not supplied
not supplied

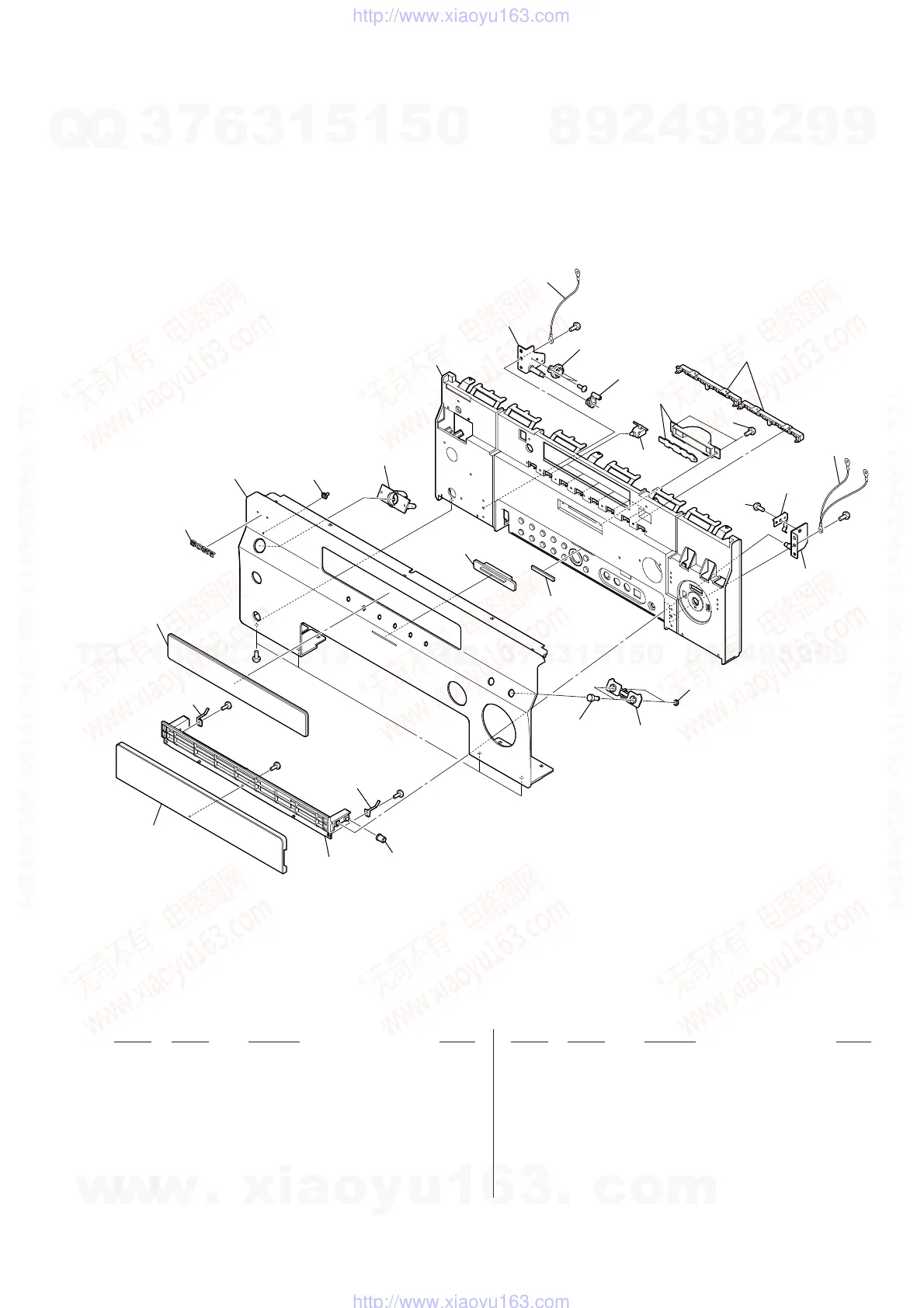

7-5. FRONT PANEL SECTION
