Note 2: IC8001 and IC8013 cannot exchange with single. When these parts
are damaged, exchange the entire mounted board.
Ref. No. Location
• Semiconductor
Location
D6701 B-12
D6702 B-12
D6752 B-9
D6801 B-8
D6802 B-8
D6803 B-8
D6804 B-8
D6805 B-8
D8003 C-6
D8004 C-6
D8005 C-6
D8006 C-6
IC6701 D-11
IC6702 C-11
IC6751 D-9
IC6752 C-9
IC6801 C-8
IC6802 C-8
IC6803 C-8
IC6804 E-9
IC6805 D-7
IC6806 D-8
IC8001 F-6
IC8002 E-3
IC8003 E-5
IC8004 F-3
IC8005 C-5
IC8006 G-8
IC8007 F-11
IC8008 G-9
IC8010 G-9
IC8012 C-6
IC8013 F-5
IC8014 H-5
IC8016 C-2
IC8200 C-3
IC8201 F-7
IC8202 C-4
IC8203 C-4
IC8204 F-7
IC8205 D-5
IC8240 H-3
IC8250 H-4
IC8260 G-11
Q6801 B-9
Q6802 B-8
Q6803 D-9
Q6804 D-9
Q8001 D-2
Q8003 E-8
Q8204 H-9
Q8205 G-9
(Page 61)
(Page 86)

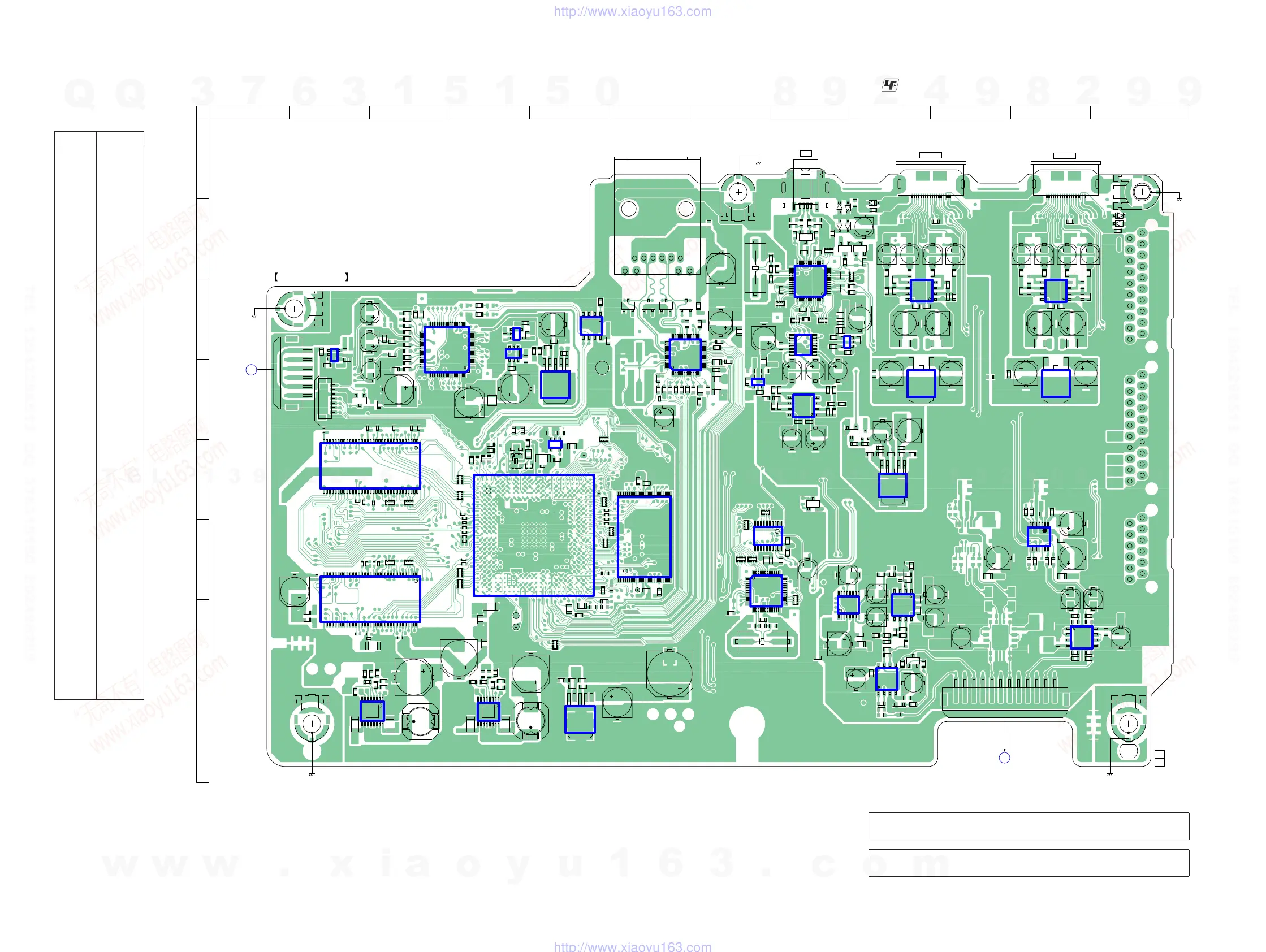

6-45. PRINTED WIRING BOARD - NETWORK Board (Component Side) (Suffi x-13) -
• : Uses unleaded solder.
• See page 43 for Circuit Boards Location.
Note 1: Refer to the Servicing Notes “NETWORK BOARD DISCRIMINATION”
(page 4) for how to distinguish Suffi x-12 and Suffi x-13.
To Next Page
